Supermicro SYS-E403-9P-FN2T Box PC Barebone Single Intel Xeon Scalable Processor Up to 1.5TB SATA Dual 10GbE
• Multi-Access Edge Computing (MEC)
• Universal Customer Premise
• Equipment (uCPE)
• Network Function Virtualization
• (NFV)
• Artificial Intelligence (AI) on Edge,
• Machine Learning (ML)
• Industrial Automation, Retail, Smart
• Medical Expert Systems
Barebone Box PC SuperServer Single Intel Xeon Scalable, Intel C622 chipset, Up to 1.5TB in 6 DIMM Slots, SATA, 4x 2.5in drive bays, 2x 10GbE BaseT LAN Ports, 600W Power Supply (CSE-E403iF + X11SPW-TF)

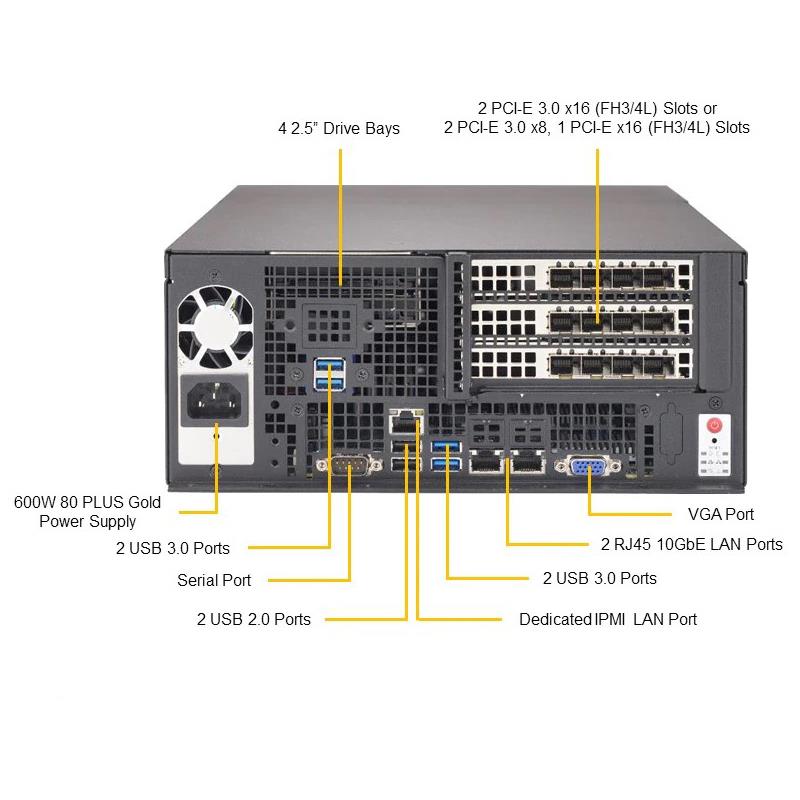

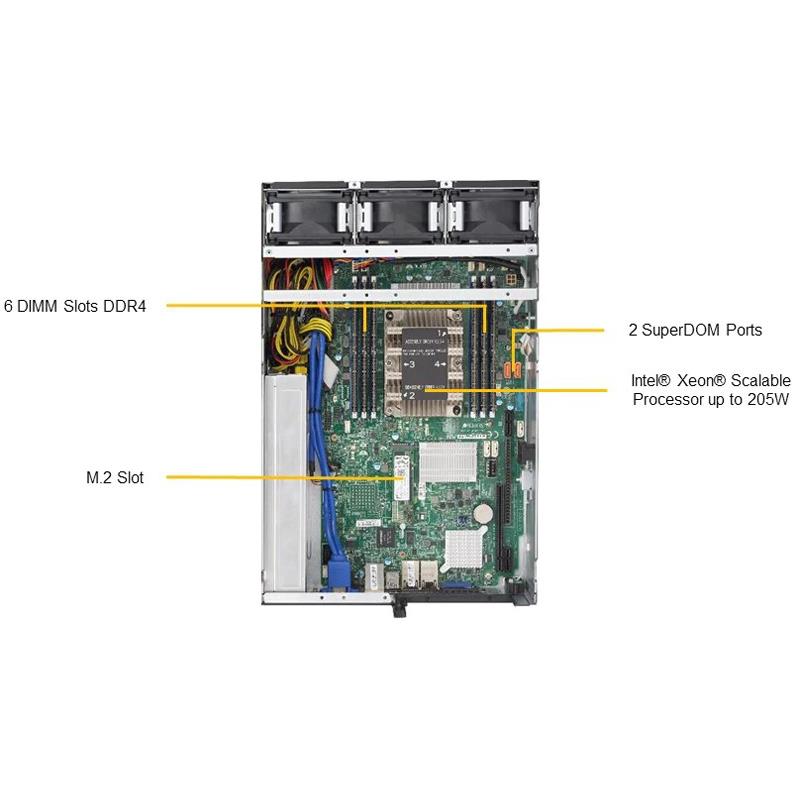

1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor ‡
2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
3. 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FHFL) slots †
4. 4 Internal 2.5" drive bays
5. M.2: 1 M-Key 2280/22110 PCI-E 3.0 x4 and SATA
6. 2x 10GBase-T ports with Intel X722 + X557
7. 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
8. 600W Multi-output Gold Level Power Supply
Extra Specifications for Supermicro SYS-E403-9P-FN2T Box PC Barebone Single Intel Xeon Scalable Processor Up to 1.5TB SATA Dual 10GbE
Motherboard | ||
Motherboard | Super X11SPW-TF | |
Processor | ||
CPU | Single Socket P (LGA 3647) | |
Support CPU TDP 70-205W | ||
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake-SP) ‡ | ||
Cores | Up to 28 Cores | |
Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) for Cascade Lake-R CPUs above 165W TDP, please contact Supermicro Technical Support for additional information. | |
System Memory | ||
Memory Capacity | 6 DIMM slots | |
Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM | ||
Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
On-Board Devices | ||
Chipset | System on Intel® C622 chipset | |
SATA | Intel® C622 controller; RAID 0, 1, 5, 10 | |
Network Controllers | Dual 10GBase-T LAN with Intel® X722 + X557 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Video | ASPEED AST2500 BMC | |
Input / Output | ||
SATA | 4 SATA3 (6Gbps) ports | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
2 RJ45 10GBase-T LAN ports | ||
USB | 2 USB 2.0 ports (front) | |
4 USB 3.0 ports (front) | ||
Video | 1 VGA port | |
Serial Port | 1 COM port (front) | |
SuperDOM | 2 SuperDOM (Disk on Module) ports with built-in power | |
System BIOS | ||
BIOS Type | AMI 32Mb SPI Flash ROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SPM , SUM | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
Chassis | ||
Form Factor | Box PC | |
Model | CSE-E403iF | |
Dimensions and Weight | ||
Height | 4.3" (109mm) | |
Width | 10.5" (267mm) | |
Depth | 16" (406mm) | |
Package | 26" (W) x 10.4" (H) x 16.4" (D) | |
Weight | Net Weight: 18 lbs (8.16 kg) | |
Gross Weight: 24 lbs (10.89 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Power LED | |
System Information LED | ||
Network activity LEDs | ||
Hard drive activity LED | ||
Overheat LED | ||
Expansion Slots | ||
PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots or | |
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FHFL) slots † | ||
Note | † See Manuals for settings on Expansion Card and BIOS | |
Drive Bays | ||
Internal | 4 Internal 2.5" drive bays | |
M.2 | M.2 Interface: PCI-E 3.0 x4 and SATA | |
Form Factor: 2280, 22110 | ||
Key: M-Key | ||
Double Height Connector | ||
System Cooling | ||
Fans | 3x 80x38mm PWM hot swap fans | |
Power Supply | ||
Power Supply | 600W AC multi output power supply w/ PFC | |
AC Voltage | 100-240 V, 50-60 Hz, 7.5-3.1 Amp | |
+5V | 20 Amp | |
+5V standby | 3 Amp | |
+12V | 49 Amp | |
+3.3V | 16 Amp | |
Certification | Gold Certified | |
Operating Environment / Compliance | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) | ||
Product SKUs | ||
Product SKUs | SuperServer E403-9P-FN2T (Black) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-MBD-X11SPW-TF | 1 | Super MBD-X11SPW-TF Motherboard | |
Motherboard / Chassis | CSE-E403iF | 1 | Black 2.5U Embedded Server Box W/O PWS | |
Riser Card | AOM-SDW-B16X2-P | 1 | AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS | |
Cable 1 | CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
Cable 2 | CBL-0206L | 4 | CBL-SAST-0641 / 4 / SATA,INT,ROUND,ST-RA,45CM,30AWG | |
Cable 3 | CBL-CUSB-0832 | 1 | USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG | |
Cooling Fan | FAN-0200L4 | 3 | 80x80x38 mm, 13.5K RPM Cooling Fan for E403IF | |
Cooling Fan Accessory | MCP-320-40302-0N | 1 | Fan bracket with extension cable for 3x 8038 hot-swap,E403 | |
Heat Sink | SNK-P0071VS | 1 | 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin) | |
Air Shroud 1 | MCP-310-40301-0B | 1 | Air shroud for CSE-E403iF+ X11SPW | |
Power Supply | PWS-601-1H | 1 | 1U 600/680W MULTI OUTPUT PWS 80+ GOLD | |
Part 1 | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black | |
* Cable 4 | CBL-0156L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG | |
* Tray | MCP-220-40301-0N | 4 | Fixed HDD tray 4x 2.5in for CSE-E403iF | |
* Front Panel 1 | FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216,219 | |
* Front Panel 2 | TB826 | 1 | Front panel adaptor board (TB826) forSC826,213,216,219 | |
* Part 2 | MCP-240-40301-0B | 1 | Black riser card bracket 3x slot for WIO M, CSE-E403iF | |
* Part 3 | MCP-260-40301-0B | 1 | I/O Shield support 2x USB for CSE-E403iF |
Note:
• Parts with * come with the Chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
