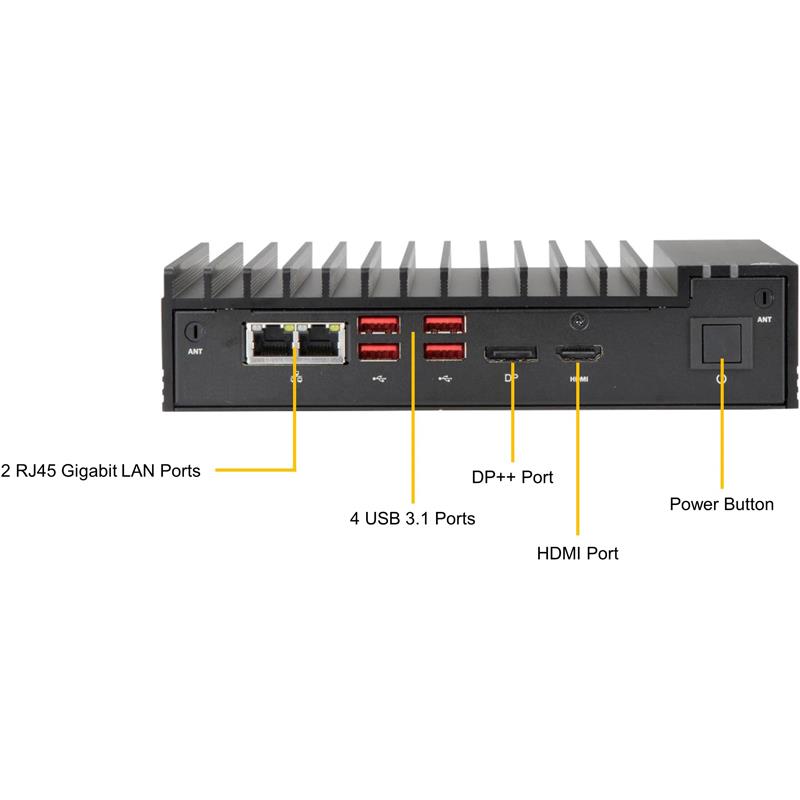

Supermicro SYS-E100-9W-L 3.5" SBC Barebone Single Intel i3 8145UE Processor Up to 64GB DIMM SATA Single LAN with Intel I210IT
• Industrial Automation, Retail
• Smart Medical Expert Systems
• Kiosk, Interactive info system
• Digital Signage
Barebone 3.5" SBC SuperServer SingleIntel i3 8145UE, System-on-Chip Up to 64GB in 2 DIMM Slots, SATA, Single LAN with Intel I210IT 60W Power Supply (CSE-E101-02 + X11SWN-L-WOHS)
This product is no longer available.
1. 8th Generation Intel® Core™ i3-8145UE Processor; Single Socket FCBGA-1528
2. System-on-Chip
3. M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
4. Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
5. Dual GbE LAN w/ Intel i219LM + i210IT
6. 4 COM (RS-232/422/485), 4 USB 3.1, 1 DIO via DB9
7. 1 HDMI and 1 Display Port
8. Fanless design
9. Lockable 12V DC 60W power adapter
Extra Specifications for Supermicro SYS-E100-9W-L 3.5" SBC Barebone Single Intel i3 8145UE Processor Up to 64GB DIMM SATA Single LAN with Intel I210IT
| Motherboard | ||
| Motherboard | Super X11SWN-L-WOHS | |
| Processor/Cache | ||
| CPU | Single Socket FCBGA-1528 | |
| System-on-Chip | ||
| CPU TDP support 15W | ||
| 8th Generation Intel® Core™ i3-8145UE Processor | ||
| Note | BIOS version 2.0 or above is required | |
| System Memory | ||
| Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots | |
| Memory Type | DDR4 up to 2400MHz | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Controllers | Single LAN with Intel® PHY I219LM | |
| Single LAN with Intel® I210IT | ||
| Audio | ALC 888S HD Audio | |
| Video | Intel® UHD Graphics 620 | |
| Input / Output | ||
| USB | 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A) | |
| Video Output | 1 HDMI and 1 Display Port | |
| COM Port | 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control | |
| Audio | 1 HD Audio header (Mic-in/Line-Out) (option) | |
| Others | 8-bit configurable GPIO via DB9 | |
| Chassis | ||
| Form Factor | 3.5" SBC | |
| Model | CSE-E101-02 | |
| Dimensions | ||
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. | |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. | |
| Depth | 5.94" (151mm) / 11" (279mm) - pkg. | |
| Weight | Gross Weight: 4.5 lbs (2.04 kg) | |
| Net Weight: 2.65 lbs (1.2 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED and Hard drive activity LED | |
| Expansion Slots | ||
| M.2 | Key: B-Key, M-Key, E-Key | |
| M.2 2242/3042/2280 | ||
| B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder | ||
| System Cooling | ||
| Fans | Fan-less design | |
| Power Supply | ||
| Power Supply | Lockable 12V DC 60W power adapter | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Power Configurations | ACPI Power Management | |
| Control of power-on for recovery from AC power loss | ||
| Force Power On by Jumper | ||
| CPU thermal trip support for processor protection | ||
| +12V ~ +24V DC Wide power range input | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis | ||
| Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow | ||
| Product SKUs | ||
| Product SKUs | SuperServer E100-9W-L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SWN-L-WOHS | 1 | Super X11SWN-L-WOHS Motherboard | |
| Motherboard / Chassis | CSE-E101-02 | 1 | Fanless Enclosure for 3.5" motherboard | |
| Power Adapter | MCP-250-10134-0N | 1 | 60W DC power adapter with US power cord 18AWG 6ft (0-40°C) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
