| Main Specifications |

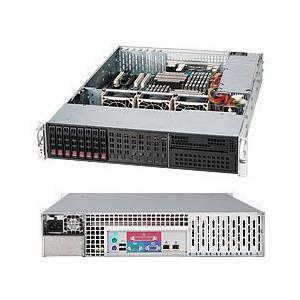

| Device Type | SuperChassis 213LT-600LPB |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Color | Black |
| Form Factor | 2U chassis support for motherboard size - 13.68" x 13", E-ATX and ATX |
| Weight | Gross: 48 lbs / Net: 44 lbs |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x low-profile expansion slots |
| Drive Bays |
| Hot-swap | 8x 2.5" Hot-swap SAS/SATA HDD bays for SAS or enterprise SATA HDD only |
| Peripheral Bays | 1x 5.25" peripheral Drive Bay |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
| System Cooling |
| Fans | FAN-0126L4 |
| 3x 80x38mm high-performance, high-quality PWM fans |
| PC Health Monitoring |
| Other Features | Chassis intrusion detection |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 2U SAS backplane w/ Enclosure Management |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | PWS-605P-1H |
| 600W AC power supply w/ PFC (24-pin) |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Standard Parts List |
| Accessory | MCP-290-00007-01 |
| FP826-D, MCP-280-00018-0N, CSE-PT0130L |
| Chassis | CSE-213LT-600LPB |
| Rear Window / Kit | MCP-240-82506-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29001-0N |
| Backplane | BPN-SAS-213LT |
| Drive Trays | MCP-220-00023-01, MCP-220-00047-0B, MCP-290-00079-0B, MCP-290-21301-0B |
| Mounting Rails | MCP-220-00006-00, MCP-290-00053-0N |
| Parts List |
| Cables | CBL-0071L, CBL-0088L, CBL-0182L, CBL-0217L |
