  2. Mellanox MCP1600-C002E30N Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m/6.56ft

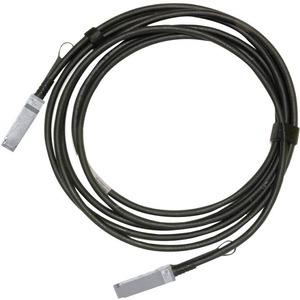

Mellanox MCP1600-C002E30N Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m/6.56ft

Mellanox MCP1600-C002E30N Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m/6.56ft

  • Connection:  QSFP28 to QSFP28

  • Fully tested, validated by Supermicro

  • Validated to ensure quality and performance

Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m, Black, 30AWG, CA-N - 6.56 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - 30 AWG - Black 100GBE 100GB/S QSFP28 BLK 30AW

$ 151.00$ 151.00151.0USD

$ 151.00

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system. Mellanox's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.


    Highlights


    • Up to 100GbE data rate

    • SFF-8665 compliant QSFP28

    • Operating case temperature 0-70C

    • Single 3.3V supply voltage

    • Bit Error Rate (BER) better than 1E-15

    • Hot-pluggable

    • RoHS compliant

    • LSZH (Low Smoke Zero Halogen) jacket

    • LF (Lead Free) HF (Halogen Free) PCB

    • SFF-8636 compliant I2C management interface

    Extra Specifications for Mellanox MCP1600-C002E30N Passive Copper Cable, ETH 100GbE, 100Gb/s, QSFP28, 2m/6.56ft

    Main Specifications
    Device TypeNetwork Cable
    Length6.56 ft
    ColorBlack
    American Wire Gauge (AWG)30AWG
    Product MaterialCopper, Low Smoke Zero Halogen - Jacket
    Connectivity
    ConnectorsQSFP28
    Connectors (Other Side)QSFP28
    Miscellaneous
    Compliant StandardsRoHS
    Environmentally Friendly: Yes
    FeaturesHalogen Free, Lead-free, Passive

    Warranty:1 year
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Mellanox
    Type of Support:FULL
    Phone No.:408-916-0055
    URL:Click here for Manufacturer Website
