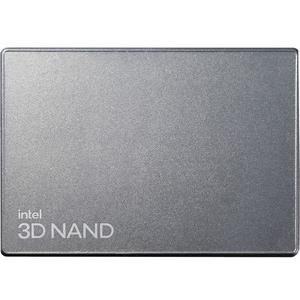

- Intel SSDPF2KX038TZ 3.84TB Drive NVMe PCIe 4.0 U.2 15mm 1DWPD - D7-P5510 Series
Intel SSDPF2KX038TZ 3.84TB Drive NVMe PCIe 4.0 U.2 15mm 1DWPD - D7-P5510 Series
Improve enterprise security and manageability
Next-gen 144-layer TLC Intel 3D NAND technology
Designed to advance IT efficiency and data security
High performance, can greatly accelerate all-flash arrays
Drive 3.84TB NVMe PCIe 4.0 x4 3D TLC U.2 15mm 1DWPD - D7-P5510 Series
Meeting today’s data center performance, manageability, and I/O requirements across a wide range of workloads.
Architected with 144-layer, TLC, Intel 3D NAND technology, the Intel SSD D7-P5510 offers optimized performance and capacity for all-flash arrays and is designed to advance IT efficiency and data security. The Intel SSD D7-P5510 includes an Intel PCIe 4.0 controller and firmware that brings low latency, enhanced management capabilities, scalability, and critical new NVMe features for Enterprise and Cloud environments.
Improve Performance with Lower Latency
The Intel SSD D7-P5510 delivers predictably fast high performance and can greatly accelerate all-flash arrays. The performance-optimized D7-P5510 brings up to 2X higher sequential read performance,1 50% lower latencies2, and a 50% increase in mixed workload IOPs (70% read, 30% write)3 compared to the previous-generation Intel SSD.
A new TRIM architecture further improves the performance on real-life workload where dataset management commands are used. Optimized TRIM architecture now runs as a background process without interference to workloads, improving performance and QoS during concurrent TRIMs. The TRIM process is improved with reduced write amplification that helps drives meet their endurance goal.
Firmware Enhancements for Drive Performance, IT Efficiency, Data Security, and Manageability
The Intel SSD D7-P5510 includes numerous firmware enhancements specifically designed to improve IT efficiency and data security in an increasingly data-centric world.
Scatter Gather List (SGL) improves performance by removing the need for data alignment at the host.
Enhanced SMART monitoring, which reports drive health status without disrupting I/O data flow using an in-band mechanism and out-of-band access.
Device Self-Test improves customer experience by ensuring devices are operating as expected. Host system can request the storage device (SSD) to perform tests to ensure it is functioning properly including SMART check, Volatile Memory Backup, NVM integrity, Drive life.
Telemetry makes a wide range of stored data accessible and includes intelligent error tracking and logging. This increases the reliability of finding and mitigating issues and supports accelerated qualification cycles—all of which result in increased IT efficiency.
Additional security features like TCG Opal 2.0, Configurable Namespace Locking, Sanitize, and Format NVM are supported.
A Power-Loss imminent (PLI) protection scheme with built-in self-testing guards against data loss if system power is suddenly lost. Coupled with an industry-leading end-to-end data path protection scheme,5 PLI features also enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.
Extra Specifications for Intel SSDPF2KX038TZ 3.84TB Drive NVMe PCIe 4.0 U.2 15mm 1DWPD - D7-P5510 Series
|Device Type||Solid state drive - internal|
|Form Factor||U.2 15mm 2.5-inch|
|Interface||PCIe 4.0 x4, NVMe 1.3c|
|NAND Flash Memory Type||3D triple-level cell (TLC)|
|SSD Endurance||7 PB|
|Internal Data Rate||6500 MBps (read) / 3400 MBps (write)|
|4KB Random Read||700000 IOPS|
|4KB Random Write||170000 IOPS|
|Average Latency||15 µs|
|MTBF||2.0 million hours|
|Features||Hardware Encryption, Encryption Algorithm: 256-bit AES, Temperature Monitoring and Logging, Enhanced Power Loss Data Protection, End-to-end data protection|
|Expansion / Connectivity|
|Expansion / Connectivity||1 x PCI Express 4.0 x4 (NVMe)|
|Power Consumption||18 Watt (active), 5 Watt (idle)|
|Operating Environment||Min Operating Temperature: 32 °F|
|Max Operating Temperature: 158 °F|
|Shock Tolerance (operating): 1000 g @ 0.5 ms|
|Shock Tolerance (non-operating): 1000 g @ 0.5 ms|
|Vibration Tolerance (operating): 2.17 g @ 5-700 Hz|
|Vibration Tolerance (non-operating): 3.13 g @ 5-800 Hz|
