- Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Virtualization
• Cloud Computing
• High-End Enterprise Server
• Hyperconverged Storage
Barebone 2U Rackmount A+ Server, Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer), 24x 2.5in U.2 NVMe hot-pluggable systems. Up to 8TB DDR4 Registered ECC 3200MHz in 32 DIMM slots; Dual 10GBase-T and Dual 10G SFP+ LAN ports; IPMI 2.0 + KVM with dedicated LAN; (MBD-H12DSU-iN + CSE-219U2TS-R1K62P3-TN24) - AS -2124US-TNRP

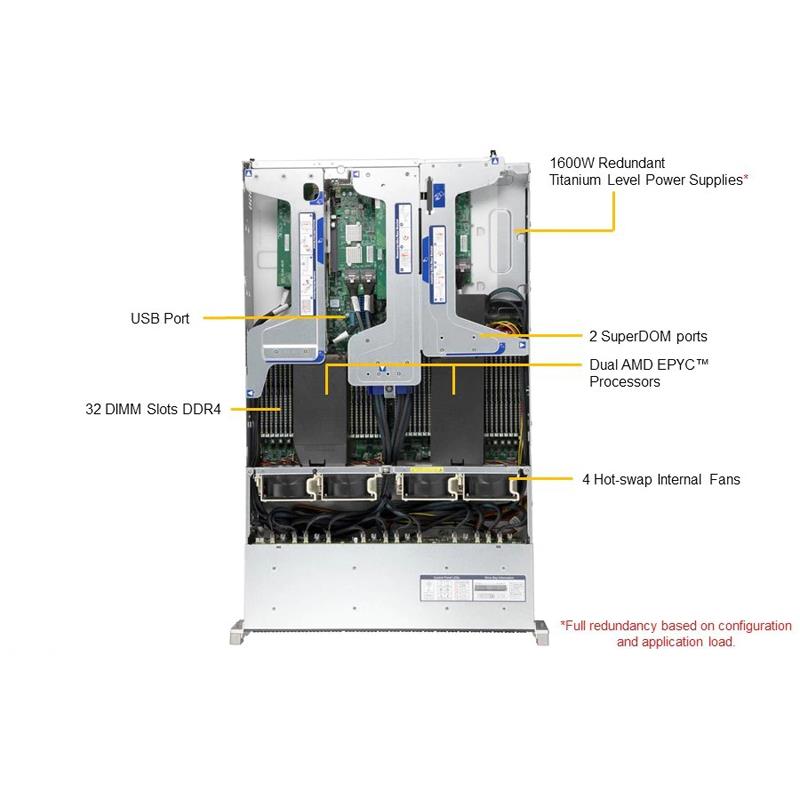

1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: 1 PCIe 4.0 x16 slot (FH, 9.5" L) [ Details ] Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact SMC for more information)
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4
6. Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays Up to 24 SATA/SAS drive support via optional SAS kit
7. 1600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
Motherboard | ||
Motherboard | H12DSU-iN | |
Processor/Chipset | ||
CPU | Socket SP3 | |
Supports CPU TDP up to 280W * | ||
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
Cores | Up to 64 Cores | |
Chipset | System on Chip (SoC) | |
Note | * Certain CPUs with TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
System Memory | ||
Memory Capacity | 8-channel memory bus | |
32 DIMM slots | ||
Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
Memory Voltage | 1.2V | |
Error Detection | Corrects single-bit errors | |
Detects double-bit errors (using ECC memory) | ||
On-Board Devices | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
ASPEED AST2500 BMC | ||
Network Connectivity | Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4 | |
VGA | ASPEED AST2500 BMC | |
Input / Output | ||
NVMe | 24 U.2 NVMe support | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
Dual 10GBase-T LAN ports | ||
Dual 10G SFP+ LAN ports | ||
USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
VGA | 2 VGA ports (1 rear, 1 onboard) | |
Others | 1 COM port | |
2 SATA DOM power connectors | ||
TPM 2.0 header | ||
System BIOS | ||
BIOS Type | AMI 128Mb SPI Flash EEPROM | |
BIOS Features | Plug and Play (PnP) | |
PCI 2.2 | ||
DMI 2.3 | ||
ACPI 5.1 | ||
USB Keyboard Support | ||
SMBIOS 3.1.1 | ||
PC Health Monitoring | ||
CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
CPU switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Up to 4-fan status tachometer monitoring | ||
Up to four 4-pin fan headers | ||
Temperature | Monitoring for CPU and chassis environment | |
CPU Thermal Trip Support | ||
I²C Temperature Sensing Logic | ||
Thermal control for 4x Fan connectors | ||
LED | CPU / System Overheat LED | |
Other Features | Chassis Intrusion Detection | |
Chassis Intrusion Header | ||
Chassis | ||
Form Factor | 2U | |
Model | CSE-219U2TS-R1K62P3-TN24 | |
Dimensions and Weight | ||
Height | 3.5" (89mm) | |
Width | 17.2" (437mm) | |
Depth | 28.46" (723mm) | |
Package | 9.96" (H) 24.60" (W) 45.43" (D) | |
Weight | Net Weight: 39 lbs (17.7 kg) | |
Gross Weight: 63 lbs (28.6 kg) | ||
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Power LED | |
Hard drive activity LED | ||
System Overheat LED / Fan fail LED / UID LED | ||
2x Network activity LEDs | ||
Expansion Slots | ||
PCI-Express | 1 PCIe 4.0 x16 slot (FH, 9.5" L) | |
Drive Bays | ||
Hot-swap | 24 hot-swap 2.5" U.2 NVMe drive bays | |
Up to 24 SAS/SATA drives supported via optional SAS kit | ||
System Cooling | ||
Fans | 4 heavy-duty PWM fans with optimal fan speed control | |
Air Shroud | 1 Air Shroud | |
Power Supply | ||
Power Supply | 1600W Redundant Power Supplies with PMBus | |
Total Output Power | 1600W/1000W | |
Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
Input | 100-127Vac / 13 - 9A / 50-60Hz | |
200-240Vac / 10 - 8A / 50-60Hz | ||
+12V | Max: 83.3A / Min: 0A (100-127Vac) | |
Max: 133A / Min: 0A (200-240Vac) | ||
12Vsb | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment / Compliance | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Product SKUs | ||
Product SKUs | A+ Server 2124US-TNRP |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Storage Control Card and Cable(s) | AOC-S3008L-L8e & | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA; | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3008L-L8i & | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3108L-H8iR/16DD & | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-SAS3-9361-16I & | 0 | MegaRAID SAS 9361-16i; | |||
Storage Control Card and Cable(s) | 4x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 16 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3616L-L16IT & | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP; | |||
Storage Control Card and Cable(s) | 4x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 16 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-SAS3-9361-24I & | 0 | MegaRAID SAS 9361-24i; | |||
Storage Control Card and Cable(s) | 6x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM | |||
Storage Control Card and Cable(s) | (support up to 24 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3808L-L8iT & | 0 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS; | |||
Storage Control Card and Cable(s) | 1x CBL-SAST-1264F-100 | 0 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD & | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS; | |||
Storage Control Card and Cable(s) | 1x CBL-SAST-1264F-100 | 0 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM | |||
Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3816L-L16iT & | 0 | 16 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS; | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1264F-100 | 0 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM | |||
Storage Control Card and Cable(s) | (support up to 16 SAS3 HDD) | 0 | - | |||
Storage Control Card and Cable(s) | AOC-S3916L-H16iR-32DD & | 0 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS; | |||
Storage Control Card and Cable(s) | 2x CBL-SAST-1264F-100 | 0 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM | |||
Storage Control Card and Cable(s) | (support up to 16 SAS3 HDD) | 0 | - | |||
CacheVault(s) | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108 | |||
CacheVault(s) | BTR-CVPM05 | $ 207.50 | 0 | Cache Vault for 3908/3916 controller | ||
Cable Management Arm | MCP-290-00128-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen | |||
M.2 by AOC | AOC-SLG3-2M2 | $ 54.00 | 0 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
M.2 by AOC | AOC-SLG3-2H8M2 | $ 188.00 | 0 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
SATADOM | SSD-DM128-SMCMVN1 | $ 140.50 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
SATADOM | SSD-DM064-SMCMVN1 | $ 84.00 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | SSD-DM032-SMCMVN1 | $ 60.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
HDD Tray for SAS/SATA | MCP-220-00117-0B | $ 28.50 | 1~24 | Tool-less black hot-swap 2.5" drive tray (red tab) | ||
TPM | AOM-TPM-9665H | $ 43.00 | 0 | Horizontal TPM using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
