- Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors

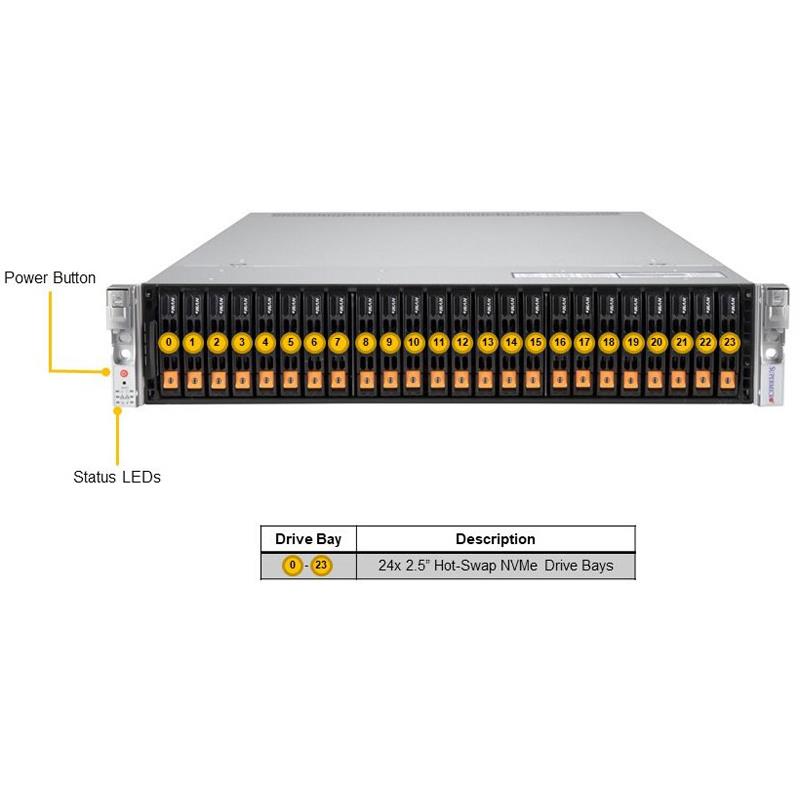

Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Virtualization
• Cloud Computing
• High-End Enterprise Server
• Hyperconverged Storage
Barebone 2U Rackmount A+ Server, Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer), 24x 2.5in U.2 NVMe hot-pluggable systems. Up to 8TB DDR4 Registered ECC 3200MHz in 32 DIMM slots; Dual 10GBase-T and Dual 10G SFP+ LAN ports; IPMI 2.0 + KVM with dedicated LAN; (MBD-H12DSU-iN + CSE-219U2TS-R1K62P3-TN24) - AS -2124US-TNRP
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 NVMe HDD drive.
1. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
3. Expansion slots: 1 PCIe 4.0 x16 slot (FH, 9.5" L) [ Details ] Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact SMC for more information)
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4
6. Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays Up to 24 SATA/SAS drive support via optional SAS kit
7. 1600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2124US-TNRP 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | H12DSU-iN | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| Note | * Certain CPUs with TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Connectivity | Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4 | |
| VGA | ASPEED AST2500 BMC | |
| Input / Output | ||
| NVMe | 24 U.2 NVMe support | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Dual 10GBase-T LAN ports | ||
| Dual 10G SFP+ LAN ports | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 2 VGA ports (1 rear, 1 onboard) | |
| Others | 1 COM port | |
| 2 SATA DOM power connectors | ||
| TPM 2.0 header | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 4-fan status tachometer monitoring | ||
| Up to four 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| I²C Temperature Sensing Logic | ||
| Thermal control for 4x Fan connectors | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-219U2TS-R1K62P3-TN24 | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.46" (723mm) | |
| Package | 9.96" (H) 24.60" (W) 45.43" (D) | |
| Weight | Net Weight: 39 lbs (17.7 kg) | |
| Gross Weight: 63 lbs (28.6 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 1 PCIe 4.0 x16 slot (FH, 9.5" L) | |
| Drive Bays | ||
| Hot-swap | 24 hot-swap 2.5" U.2 NVMe drive bays | |
| Up to 24 SAS/SATA drives supported via optional SAS kit | ||
| System Cooling | ||
| Fans | 4 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2124US-TNRP | |
