Supermicro SYS-620U-TNR 2U Barebone Dual Intel Processor
• Virtualization
• HPC
• Cloud Computing
• High End Enterprise Server
• Software Defined Storage
• Application Tier Service Provider
• 5G/Telco
Server Rackmount 2U for Dual Intel Xeon Scalable processor, Intel C621A chipset, up to 8TB in 32 DIMM slots, 12x 3.5in hot-swap hybrid NVMe, SATA and SAS drive bays; Dual 10GBase-T, 1200W Redundant Power Supply (CSE-829U3TS-R1K22P-T + X12DPU-6)
This product is no longer available.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4. Flexible networking options

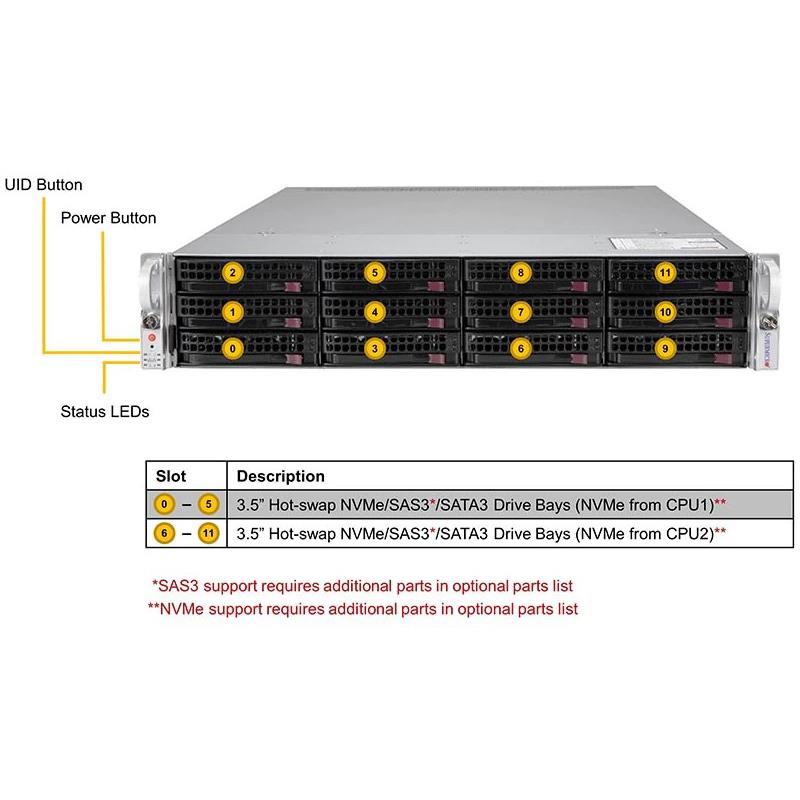

5. 12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
6. 4 heavy duty fans with optimal fan speed control
7. 1200W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-620U-TNR 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X12DPU-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 270W * | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) via Intel® PCH 621A; RAID 0/1/5/10 support | |
| NVMe | NVMe (16GT/s); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | No NIC option supported | |
| 2x 10GbE BaseT with Intel® X710-AT2 (optional) OR | ||
| 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Supermicro Out of Band (OOB) License (Included with Server) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-829U3TS-R1K22P-T | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.05" (737.9mm) | |
| Package | 10.07" (H) x 23.81" (W) x 37.28" (D) | |
| Weight | Net Weight: 35.5 lbs (16.2 kg) | |
| Gross Weight: 57.5 lbs (26.2 kg) | ||
| Available Color | Black Front & Silver Body | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information (overheat/UID) | ||
| LAN2 acticity | ||
| Power Fail | ||
| Expansion Slots | ||
| Note | Optional RSC-W2-66G4 enables PCIe x16 in slots 5, 7. Slots 6,8 will be disabled. | |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
| 1 PCIe 4.0 x16 FH, 10.5"L slot(s) | ||
| 5 PCIe 4.0 x8 FH, 10.5"L slot(s) | ||
| 1 PCIe 4.0 x8 Internal LP slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.) | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 800W: 100-127Vac / 50-60Hz | |
| 1200W: 200-240Vac / 50-60Hz | ||
| 1200W: 200-240Vdc (For CCC Only) | ||
| +12V | Max: 66.7A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | AC-Input | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-620U-TNR | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) | MCP-240-82922-0N-OEM | $ 147.00 | 1 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less | ||
| 2U Cable Management Arm | MCP-290-00128-0N &MCP-290-00127-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth) | |||
| 2U Front Bezel | MCP-210-82601-0B | $ 31.00 | 1 | Black Front Bezel Suitable for 829U and 219U chassis with standard thumbscrew handle. | ||
| Add-on card for M.2 support | AOC-SLG4-2H8M2-O | 0 | 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier, Standard | |||
| CacheVaults | BTR-CV3108-U1 | $ 330.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra | ||
| CacheVaults | BTR-CVPM05 + BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3908/3916 with Supercap | |||
| Drive Tray | MCP-220-00118-0B | $ 31.50 | 1 ~ 12 | Black gen-5.5 tool-less 3.5-to-2.5 drive tray, Red tab (For SATA/SAS) | ||
| Drive Tray | MCP-220-00138-0B | $ 43.00 | 1 ~ 12 | Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab (For NVMe) | ||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Network Card(s) | AOC Compatibility Matrix | 0 | Standard Networking AOC Matrix | |||
| NVMe Support Kit | CBL-KIT-620U-TNR-12N +1 AOC-SLG4-2E4T-O | 1 | 12 NVMe Kit for X12 Ultra 620U-TNR without NIC UIO | |||
| NVMe Support Kit | CBL-KIT-620U-TNR-12 + 1 AOC-SLG4-2E4T-O | 1 | 12 NVMe Kit for X12 Ultra 620U-TNR with NIC UIO | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3916L-H16iR-32DD-O + 1x CBL-SAST-1265F-100, 1x CBL-SAST-1276F-100 or + 1x CBL-SAST-1264F-100, 1x CBL-SAST-1265F-100. (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 16 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1276F-100 or + 1x CBL-SAST-1264F-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3816L-L16iT-O + 1x CBL-SAST-1264F-100, 1x CBL-SAST-1265F-100or + 1x CBL-SAST-1264F-100, 1x CBL-SAST-1265F-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 16 internal ports (12Gb/s) Gen-4; HBA | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3808L-L8iT-O + 1x CBL-SAST-1264F-100 or + 1x CBL-SAST-1264F-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3108L-H8iR-16DD + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8i + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E+-O + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 12 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA | |||
| Power Supply | PWS-1K30D-1R | $ 427.00 | 2 | 1U 1300W, Redundancy, DC Input: -48Vdc | ||
| Power Supply | PWS-1K62A-1R | $ 438.50 | 2 | 1U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz | ||
| Power Supply | PWS-2K08A-1R | $ 536.00 | 2 | 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc | ||
| Riser Card | RSC-W2-688G4 | $ 91.00 | 1 | 2U LHS WIO Riser card with one PCIe 4.0 x16 and two PCIe 4.0 x8 | ||
| Riser Card | RSC-W2-66G4 | $ 74.50 | 1 | 2U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI Capable Vertical TPM 1.2 Module | |||
| Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI TPM 2.0 using SLB9670 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-P | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-I2XT-O + MCP-240-82909-0N | 1 | 2U Ultra Riser with 2-port 10G RJ45, Intel Carlsville X710-AT2, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR668G4-O | 1 | 2U Ultra Riser with 2x PCIe 4.0 x16 and 1x PCIe 4.0 x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-M2TS + MCP-240-82914-0N | 1 | 2U Ultra Riser 2-port 25GbE SFP28, Mellanox CX-6 LX, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-I4XTS-O + MCP-240-82930-0N | 1 | 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS |
