Supermicro SSG-540P-E1CTR45H 4U Storage Barebone Single Intel Processor
• Database Applications
• Backup Storage, Cold Storage
• Data Warehousing, Archiving
Barebone 2U SuperStorage Server for Single Intel Xeon Scalable processor, up to 2TB in 8 DIMM Slots, up to 45x 3.5in hot-swap SATA/SAS drive bays via Broadcom 3908, Dual 10GbE BaseT with Intel X550, IPMI - (CSE-946LTS-R1K66P1 + X12SPI-TF)
This product is no longer available.

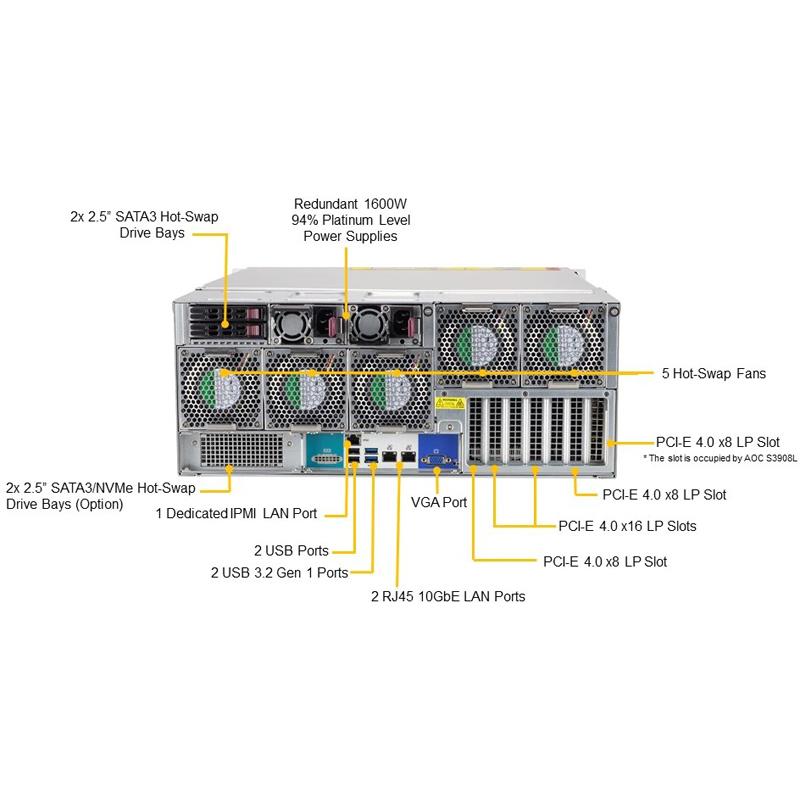

1. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
2. 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
3. Intel® Ethernet Controller X550 2x 10GbE RJ45

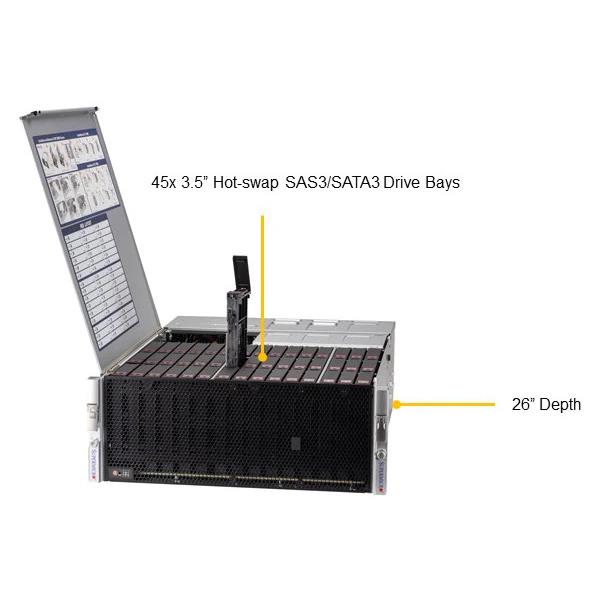

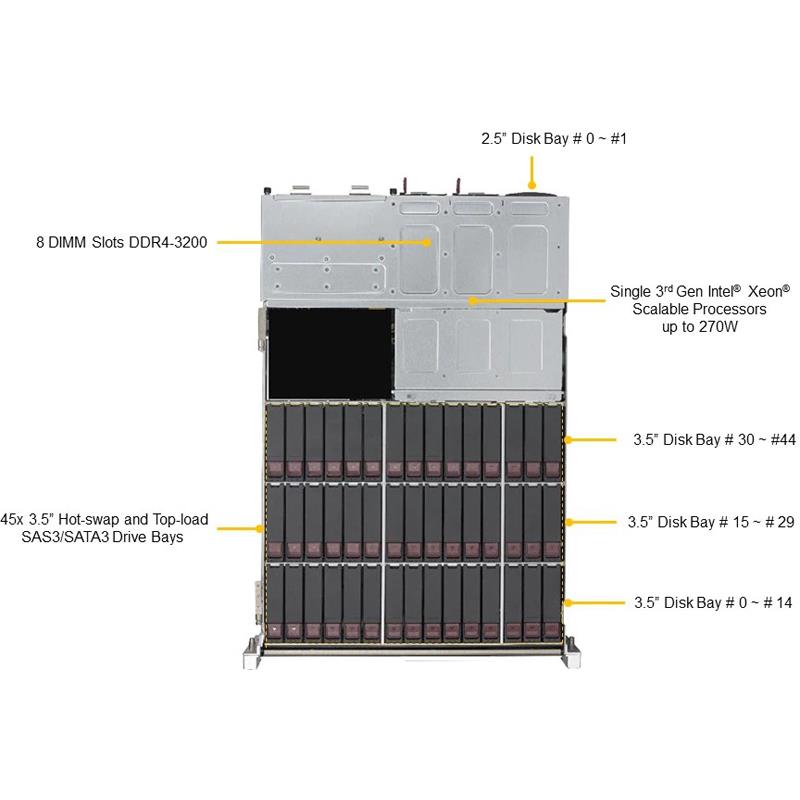

4. 45x Top-loading hot-swap 3.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
5. Redundant Platinum 1600W Power Supply
Extra Specifications for Supermicro SSG-540P-E1CTR45H 4U Storage Barebone Single Intel Processor
| Motherboard | ||

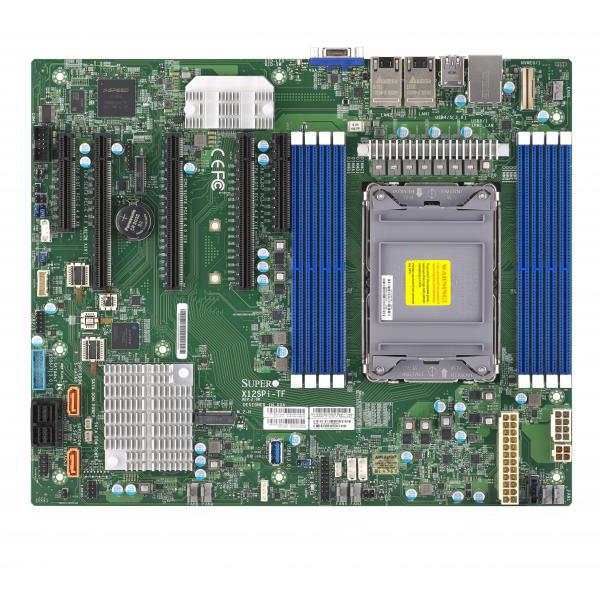

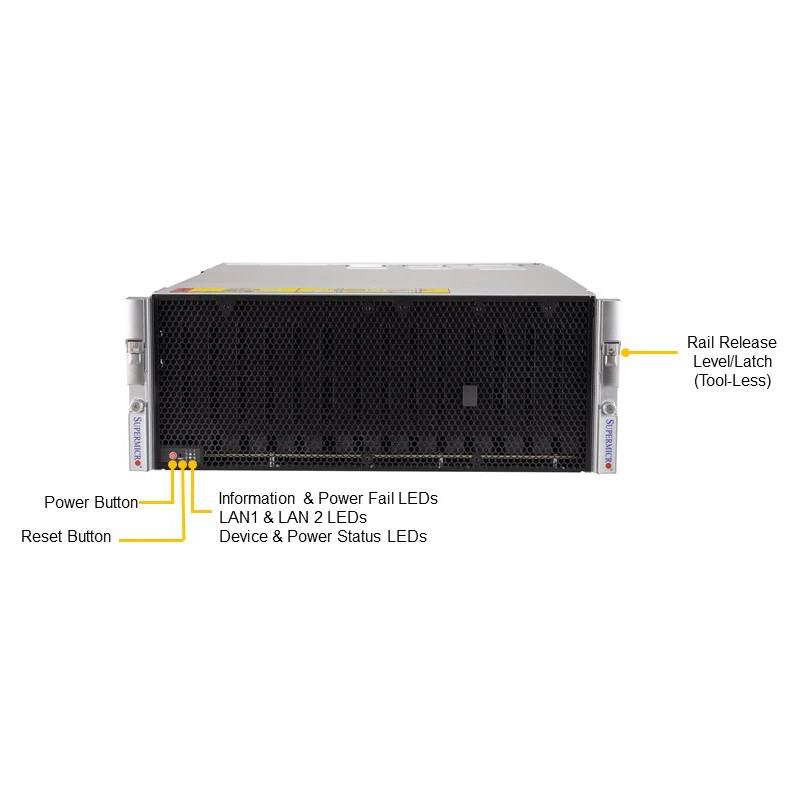

| Motherboard | Super X12SPI-TF | |
| Processor | ||
| CPU | Support CPU TDP 270W | |
| Single Socket P+ (LGA 4189) | ||
| Support Intel® 3rd Gen Xeon® Scalable Processors | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 8 DIMM slots | ||
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 2TB: 8x 256 GB DRAM | ||
| Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Yes | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0, 1, 5, 10 support | |
| SAS | SAS3 (12Gbps) via Broadcom 3908; RAID 0, 1, 5, 6, 10, 50, 60 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 2.0 port(s) (2 headers; 2 rear) | |
| 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 2 Super DOM (Disk on Module) port with built-in power | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7+1 Phase-switching voltage regulator module (VRM) | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-946LTS-R1K66P1 | |
| Dimensions and Weight | ||
| Height | 7" (178mm) | |
| Width | 17.2" (437mm) | |
| Depth | 26" (660mm) | |
| Package | 22" (H) x 28" (W) x 42" (D) | |
| Weight | Net Weight: 85 lbs (38.56 kg) | |
| Gross Weight: 120 lbs (54.43 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Power Failure LED | ||
| Drive Bays / Storage | ||
| Hot-swap | 45x 3.5" hot-swap SATA/SAS drive bays | |
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| 1x PCIe 3.0 x4 and SATA | ||
| Peripheral Bays | 2x 2.5" SATA drive bays | |
| System Cooling | ||
| Fans | 5x (8cm x8cm x3.8cm) heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Output Type | Gold Finger | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-540P-E1CTR45H | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x8 LP slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2x 2.5" NVMe Cage (Rear) | MCP-220-82619-0N + 1x CBL-SAST-1264-85 + 1x CBL-0234L | 1 | Rear hot-swap 2x 2.5" NVMe drive kit | |||
| 2x 2.5" SATA/SAS Cage (Rear) | MCP-220-82616-0N + 1x CBL-SAST-0699 + 1x CBL-0234L | 1 | Rear hot-swap 2x 2.5" SATA/SAS drive kit | |||
| CacheVault | BTR-CVPM05 & MCP-240-00203-0N (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location | |||
| Intel VROC RAID Key for NVMe | AOC-VROCINTMOD | 1 | Intel SSD Only Upgrade module; RAID 0/1/10/5 | |||
| Intel VROC RAID Key for NVMe | AOC-VROCSTNMOD | $ 176.00 | 1 | Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10 | ||
| Intel VROC RAID Key for NVMe | AOC-VROCPREMOD | $ 344.50 | 1 | Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5 | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| TPM | AOM-TPM-9670V-S-O | 1 | TPM 2.0, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9671V-S-O | 1 | TPM 1.2, vertical form factor, provisioned for server |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
