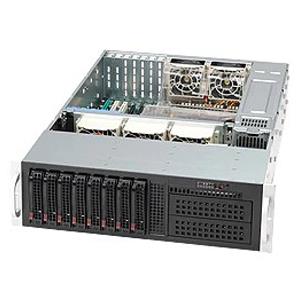

Supermicro CSE-835TQ-R921B Server Chassis 3U Rackmount 920W Power Supply
Supermicro CSE-835TQ-R921B Server Chassis 3U Rackmount

Supermicro CSE-835TQ-R921B Server Chassis 3U Rackmount 920W Power Supply

  • 8x 3.5" hot-swap SAS/SATA, 2x 5.25" drive bay

  • Support Dual and Single Intel and AMD processors

  • 3U chassis support for motherboard size - E-ATX and ATX

  • Equipped with 920W Redundant Quiet power supply W/PMbus

Rackmount 3U for up to Dual Intel / AMD Processors, up to 8x 3.5in hot-swap drive bays and 2x 5.25in drive bays, 920W Redundant Power Supply (Super Quiet), 7x Full-Height / Full-Length Expansion Slots, Rails Kit, Cooling Air Shroud (Black), RoHS

$ 1,421.00$ 1,421.001421.0USD

$ 1,421.00

Option not available

PreOrder
69 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. 3U chassis support for motherboard size - E-ATX and ATX.
    2. 8 x 3.5" hot-swap SAS/SATA, 2 x 5.25" drive bay
    3. SAS833/835 BACK PANEL WITH AMI MG9072
    4. 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
    5. 7 full-height & full-length expansion slot(s)
    6. 3 x 80mm Hot-swap PWM Fans 2 x 80mm rear hot-swap exhaust PWM fan(s)

    Extra Specifications for Supermicro CSE-835TQ-R921B Server Chassis 3U Rackmount 920W Power Supply

    System Monitoring
    System MonitoringChassis intrusion switch
    Power Supply
    CertificationPlatinum Certified
    Power Efficiency94%
    Total Output Power and Input920W with Input 100 - 240Vac
    AC Input Frequency50-60Hz
    Dimensions (L x W x H)336 x 76 x 40 mm
    Output TypeBackplanes (gold finger)
    +12VMax: 75A / Min: 1A (100Vac - 240Vac)
    +5VsbMax: 4A / Min: 0A
    Power Distributor-12V Max: 0.6A
    +3.3V Max: 24A
    +5V Max: 30A
    PDB-PT825-8824
    O/P: 12V/75
    Product SKUs
    Product SKUsCSE-835TQ-R921B
    Form Factor
    Form Factor3U chassis support for motherboard size - E-ATX and ATX.
    Processor Support
    Processor SupportDual and Single Intel® and AMD processors
    Dimensions
    Height5.2" (132 mm)
    Width17.2" (437 mm)
    Depth25.5" (647 mm)
    Gross Weight75 lbs (34.02 kg)
    Net Weight36 lbs (16.33 kg)
    Packaging (W x H x L)26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
    Available ColorBlack
    Expansion Slots
    Expansion Slots7x Full-height, Full-length expansion slot(s)
    Drive Bays
    Drive Bays8x 3.5" hot-swap SAS/SATA drive bay
    2x 5.25" drive bay
    Backplane
    BackplaneSAS833/835 BACK PANEL WITH AMI MG9072
    Peripheral Drives
    Peripheral Drives1x slim DVD-ROM drive bay
    Front Panel
    ButtonPower On/Off button
    System Reset button
    LEDHDD activity LED
    2 Network Activity LEDs
    Power LED
    System Overheat LED
    Power Fail LED
    Systems Cooling
    Fans2x 80mm rear hot-swap exhaust PWM fan(s)
    3x 80mm Hot-swap PWM Fans
    Operating Environment (System)
    Operating Temperature Range5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non Operating Relative Humidity Range5% - 95% (non-condensing)
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    BSMI
    CE/EMC
    TUV/CB
    UL/CUL
    FCC class B

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
