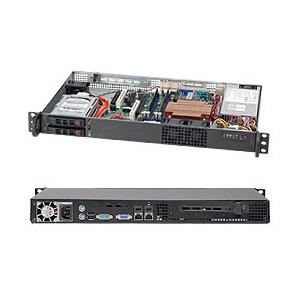

Supermicro CSE-510T-203B Server Chassis 1U Rackmount

Supermicro CSE-510T-203B Server Chassis 1U Rackmount

• Mini 1U Extra Compact Size
• Support motherboard size 9.6 x 9.6
• 2.5 hot-swap SAS/SATA HDD Bays
• Supports single Intel / AMD processor

Rackmount mini-1U w/ 200W Low-Noise Power Supply 80 Plus Gold Level Certified w/ PFC, for Single Intel / AMD Processor (Supports motherboard up to 9.6in x 9.6in Maximum size) - Includes 2x 2.5in SAS/SATA Hot-Swap Drive Trays, 1x Low-Profile PCI expansion slot (optional) Riser Card Required - (Black)

$ 213.50$ 213.50213.5USD

$ 213.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • 3x 8500 RPM Cooling Fan
    • 1x Low-profile PCI expansion slot
    • 2x 2.5 hot-swap SAS/SATA HDD Bays
    • Power Switch, Reset Button & 5 LED Indicators
    • 200W High-efficiency Power Supply 80 PLUS, Gold Level Certified

    Extra Specifications for Supermicro CSE-510T-203B Server Chassis 1U Rackmount

    Main Specifications
    Device TypeSuperChassis 510T-203B
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 11.3" (287 mm)
    ColorBlack
    Form Factor11.3"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"
    Weight12 lbs (5.0kg)
    Processor
    Compatible ProcessorsSupports single Intel / AMD processor
    Expansion / Connectivity
    Expansion Slots Total (Free)1x low-profile PCI expansion slot (Optional) (Riser Card Required, use the full-height I/O bracket on the low-profile add-on card to install)
    Drive Bays
    Hot-swap2x 2.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED
    System Cooling
    FansFAN-0106L4
    3x 8500 RPM Cooling Fan
    Operating Environment (System)
    Operating Temperature RangeNon-Operating Humidity Range 5 - 95% non-condensing
    Non-Operating Temperature Range -40 - 70C (-40 - 158F)
    Humidity Range 8 - 90% non-condensing
    Operating Temperature Range 10 - 35C (50 - 95F)
    Power Supply
    Certification80 PLUS Gold Certified
    Power SupplyPWS-203-1H
    Power Device
    Power Provided200W Low Noise AC-DC power supply with PFC
    Regulatory (Power Supply)
    Power Supply Safety / EMCUSA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified
    Standard Parts List
    AccessoryMCP-290-51001-0N / MCP-320-00036-0B / MCP-340-00001-01
    ChassisCSE-510T-203B
    Front PanelFP813-D
    Parts List
    CablesCBL-0087 / CBL-0260L
    Parts List - (Items Included)
    Drive TraysMCP-220-00047-0B / MCP-220-00062-0N

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
