- Supermicro SYS-E403-9D-4C-FRDN13+ Box PC Barebone Embedded Intel Xeon D-2123IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
Supermicro SYS-E403-9D-4C-FRDN13+ Box PC Barebone Embedded Intel Xeon D-2123IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
• Multi-Access Edge Computing (MEC)
• Universal Customer Premise
• Equipment (uCPE)
• Network Function Virtualization (NFV)
• Edge Computing, Vehicle to
• Everything Application (C-V2X / V2X)
Barebone Box PC SuperServer, Embedded Intel Xeon D-2123IT Processor, 2.20GHz 4-Core/8 Thread. System on Chip, Up to 512GB in 4 DIMM Slots, SATA3, 4x 2.5in drive bays, 4x 10G SFP+ via SoC, 600W -48V DC input Redundant Power Supplies (CSE-E403iF-000NDBP2 + X11SDW-4C-TP13F+)
This product is no longer available.

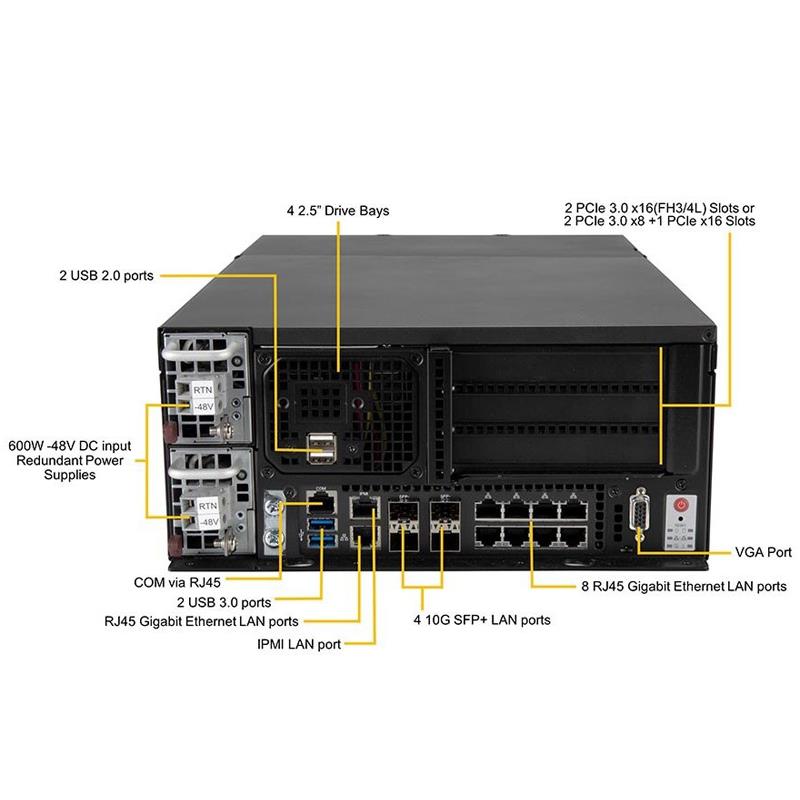

1. Intel® Xeon® D-2123IT Processor, 4 Cores, 8 Threads, 2.2 GHz, 60W
2. Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FHFL) slots
4. 4 Internal 2.5" drive bays
5. M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042
6. 9 GbE (one for Ethernet management), 4x 10G SFP+, 1 Dedicated IPMI LAN port
7. 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA via BMC
8. 600W -48V DC input Redundant Power Supplies
Extra Specifications for Supermicro SYS-E403-9D-4C-FRDN13+ Box PC Barebone Embedded Intel Xeon D-2123IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
| Motherboard | ||
| Motherboard | Super X11SDW-4C-TP13F+ | |
| Processor | ||
| CPU | Intel® Xeon® processor D-2123IT , CPU TDP support 60W | |
| Cores / Cache | 4 Cores, 8 Threads | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| Up to 256GB DDR4 ECC RDIMM | ||
| 4 DIMM slots | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM | |
| Operating speed up to 2400MHz | ||
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | Single 1GbE with Intel I210 | |
| 8x 1GbE with Intel I350-AM4 | ||
| 4x 10G SFP+ via SoC | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | VGA via Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 9 RJ45 Gigabit Ethernet LAN ports | ||
| 4 10G SFP+ LAN ports | ||
| USB | 2 USB 3.0 ports (front) | |
| 2 USB 2.0 ports (front) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM via RJ45 | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Chassis | ||
| Form Factor | Box PC | |
| Model | CSE-E403iF-000NDBP2 | |
| Dimensions and Weight | ||
| Height | 4.62" (117mm) | |
| Width | 10.5" (267mm) | |
| Depth | 16" (406mm) | |
| Weight | Gross Weight: 23 lbs (10.43 kg) | |
| Net Weight: 17 lbs (7.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots or | |
| 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FHFL) slots | ||
| M.2 | 1 M.2 M-Key , 2280/22110 | |
| 1 M.2 E-Key , 2230 | ||
| 1 M.2 B-Key , 3042 | ||
| Drive Bays | ||
| Internal | 4 Internal 2.5" drive bays | |
| System Cooling | ||
| Fans | 3x 80x80mm PWM redundant fans | |
| 600W -48V DC input Redundant Power Supplies | ||
| Total Output Power | 600W: -44Vdc to -65Vdc | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| DC Input | -44Vdc to -65Vdc / 18 - 10A | |
| +12V | Max: 50A / Min: 0A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| DC option for: (AC Counter- part) | PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R, PWS-804P-1R | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer E403-9D-4C-FRDN13+ (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDW-4C-TP13F+ | 1 | Super X11SDW-4C-TP13F+ Motherboard | |
| Motherboard / Chassis | CSE-E403iF-000NDBP2 | 1 | Black 2.5U Embedded redundant BOX for FlexATX MB, W/O PWS | |
| Add-on Card / Module | AOM-SDW-B16X2-P | 1 | AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS | |
| Cable 1 | CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
| Cable 2 | CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS | |
| Cable 3 | CBL-CUSB-0831 | 1 | [NR] USB2.0, 2 PORT,2x TYPE-A to 2X5/P2.54,63cm,26AWG,RoHS | |
| Cable 4 | CBL-SAST-0641 | 4 | 45cm SATA Cable S-RA 30AWG,RoHS/REACH | |
| FAN | FAN-0201L4 | 3 | 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan | |
| Parts | MCP-260-00153-0B | 1 | 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black | |
| Air Shroud | MCP-310-40302-0B | 1 | Mylar air shroud for X11SDW in CSE-E403iF, RoHS,Black | |
| Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
| Power Distributor | PDB-PT403-8824 | 1 | PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
