Supermicro SYS-220U-TNR Ultra 2U Barebone, Dual Intel Xeon Scalable Processor, Up to 8TB DRAM NVMe, SAS, SATA3 Dual 10GbE
• Virtualization
• HPC
• Cloud Computing
• High End Enterprise Server
• Software Defined Storage
• Application Tier Service Provider
• 5G/Telco
Barebone Ultra 2U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 8TB in 32 DIMM Slots, NVMe, SAS, SATA3 22x 2.5in NVMe, SATA, SAS drive bays, 2x 10GbE BaseT LAN Ports, 1600W Redundant Power Supply (CSE-219U3TS-R1K62P-T + X12DPU-6)
This product is sold only as a completely assembled system.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4. 1 PCIe 4.0 x16 (LP) 1 PCIe 4.0 x16 (FH, 10.5"L) 5 PCIe 4.0 x8 (FH, 10.5"L) 1 internal PCIe 4.0 x8 (in x16 slot, LP)
5. Flexible networking options

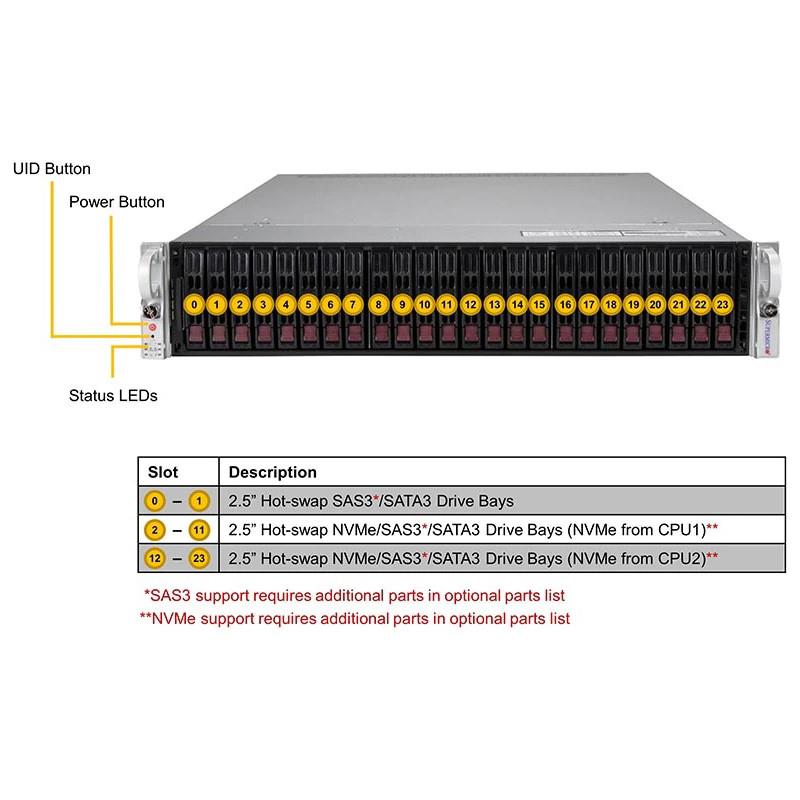

6. 22x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays + 2x2.5" hot-swap SATA/SAS drive bays
7. 4 heavy duty fans with optimal fan speed control
8. 1600W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-220U-TNR Ultra 2U Barebone, Dual Intel Xeon Scalable Processor, Up to 8TB DRAM NVMe, SAS, SATA3 Dual 10GbE
| Motherboard | ||
| Motherboard | Super X12DPU-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 270W * | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) via Intel® PCH 621A; RAID 0/1/5/10 support | |
| NVMe | NVMe (16GT/s); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | No NIC option supported | |
| 2x 10GbE BaseT with Intel® X710-AT2 (optional) OR | ||
| 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Supermicro Out of Band (OOB) License (Included with Server) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-219U3TS-R1K62P-T | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.2" (717.2mm) | |
| Package | 9.96" (H) x 24.6" (W) x 45.43" (D) | |
| Weight | Net Weight: 37 lbs (16.8 kg) | |
| Gross Weight: 63 lbs (28.6 kg) | ||
| Available Color | Black Front & Silver Body | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information (overheat/UID) | ||
| LAN2 acticity | ||
| Power Fail | ||
| Expansion Slots | ||
| Note | Optional RSC-W2-66G4 enables PCIe x16 in slots 5, 7. Slots 6,8 will be disabled. | |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
| 1 PCIe 4.0 x16 FH, 10.5"L slot(s) | ||
| 5 PCIe 4.0 x8 FH, 10.5"L slot(s) | ||
| 1 PCIe 4.0 x8 Internal LP slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (22x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.) | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-220U-TNR | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2 Rear 2.5" Hot-swap SATA Drive Bays (Complete System Only) | MCP-240-82922-0N-OEM | $ 147.00 | 1 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less | ||
| 2U Cable Management Arm | MCP-290-00128-0N & MCP-290-00127-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth) | |||
| 2U Front Bezel | MCP-210-82601-0B • | 1 | Black Front Bezel Suitable for 829U and 219U chassis with standard thumbscrew handle. | |||
| Add-on card for M.2 support | AOC-SLG3-2H8M2-O | 0 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | |||
| CacheVaults | BTR-CV3108-U1 | $ 330.50 | 0 | CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra | ||
| CacheVaults | BTR-CVPM05 + BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3908/3916 with Supercap | |||
| Drive Tray | MCP-220-00167-0B | $ 28.50 | 1 ~ 22 | 2.5 drive tray, Orange tab (for hotswap NVMe drive) | ||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Network Card(s) | AOC Compatibility Matrix | 0 | Standard Networking AOC Matrix | |||
| NVMe Support Kit | CBL-KIT-220U-TNR-8 • | 1 | 8 NVMe Support Kit for X12 Ultra SYS-220U-TNR | |||
| NVMe Support Kit | CBL-KIT-220U-TNR-22N + 3 AOC-SLG4-4E4T-O | 1 | 22 NVMe Support Kit for X12 Ultra 220U-TNR without NIC UIO | |||
| NVMe Support Kit | CBL-KIT-220U-TNR-22 + 2 AOC-SLG4-2E4T-O + 2 AOC-SLG4-4E4T-O | 1 | 22 NVMe Support Kit for X12 Ultra 220U-TNR with NIC UIO | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1276F-100 • or + 1x CBL-SAST-1264F-100 • (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3816L-L16iT-O + 2x CBL-SAST-1264F-100 • or + 2x CBL-SAST-1264F-100 • (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 16 internal ports (12Gb/s) Gen-4; HBA | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3808L-L8IT-O • + 1x CBL-SAST-1264F-100 • or + 1x CBL-SAST-1264F-100 • (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3108L-H8iR-16DD + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3916L-H16iR-32DD-O + 1x CBL-SAST-1264F-100 •, 1x CBL-SAST-1276F-100 • or + 2x CBL-SAST-1264F-100 • (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 16 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8i + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E+-O + 1x CBL-SAST-1260-100 or + 2x CBL-SAST-1285-100 (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C | |||
| Optional Storage Controller Card + Cable(s) | AOC-S3008L-L8E + 1x CBL-SAST-1260-100 or AOC-S3008L-L8E + 2x CBL-SAST-1285-100 (For system has 22 NVMe Support Kit with NIC UIO) | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA | |||
| Power Supply | PWS-1K30D-1R • | 2 | 1U 1300W, Redundancy, DC Input: -48Vdc | |||
| Power Supply | PWS-2K08A-1R • | 2 | 1U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc | |||
| Riser Card | RSC-W2-688G4 | $ 91.00 | 1 | 2U LHS WIO Riser card with one PCIe 4.0 x16 and two PCIe 4.0 x8 | ||
| Riser Card | RSC-W2-66G4 | $ 74.50 | 1 | 2U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI Capable Vertical TPM 1.2 Module | |||
| Trusted Platform Module Options | AOM-TPM-9670V-O • | 1 | SPI TPM 2.0 using SLB9670 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-P | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-I2XT-O + MCP-240-82909-0N | 1 | 2U Ultra Riser with 2-port 10G RJ45, Intel Carlsville X710-AT2, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR668G4-O | 1 | 2U Ultra Riser with 2x PCIe 4.0 x16 and 1x PCIe 4.0 x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-M2TS + MCP-240-82914-0N | 1 | 2U Ultra Riser 2-port 25GbE SFP28, Mellanox CX-6 LX, 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS | |||
| Ultra Riser Card Options + Rear Window | AOC-2UR68G4-I4XTS-O + MCP-240-82930-0N | 1 | 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS |
