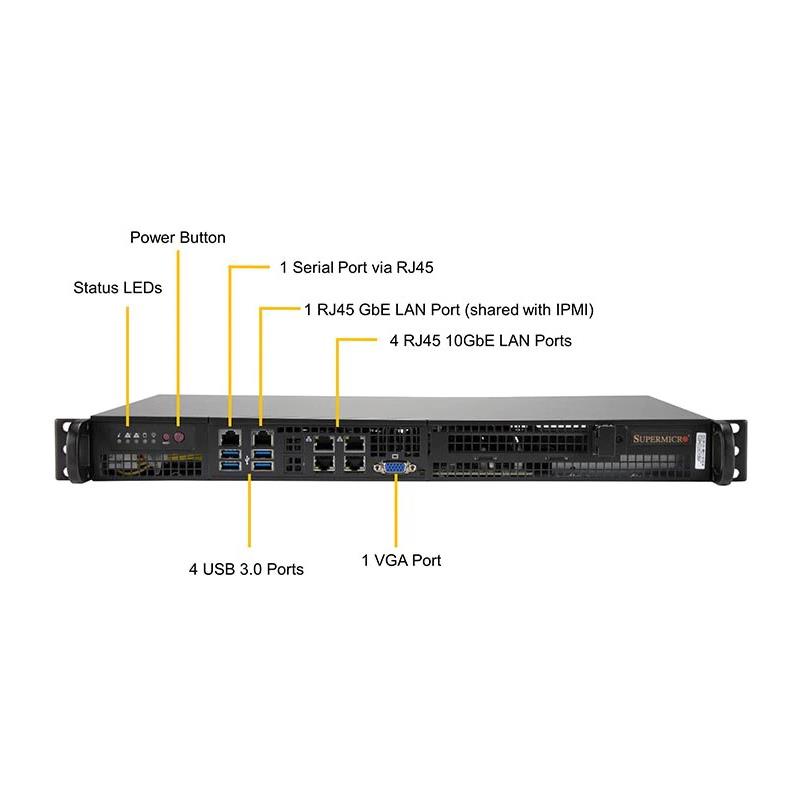

Supermicro SYS-5019A-FN5T 1U Barebone Intel Atom C3958 Processor Up to 256GB RDIMM SATA3 Quad 10GbE
• Network Security Appliance
• Edge Computing
• Network Function Virtualization
• Retailer Application
Barebone 1U Rackmount SuperServer, Embedded Intel Atom C3958 Processor, 2.0GHz 16 Core/16 Thread/16MB Cache. Up to 256GB in 4 DIMM Slots, SATA3, 1x 3.5in drive bays, Quad 10GbE BaseT LAN Ports, 200W Power Supply (CSE-505-203B + A2SDV-16C-TLN5F)
1. Intel® Atom® processor C3958, Single socket FCBGA 1310; 16-Core, TDP 31W
2. 1x 3.5" or 2x 2.5" internal drive bays
3. 1 PCI-E 3.0 x8, 1 M-Key 2242/2280, PCI-E 3.0 x2/SATA, 1 B-Key 3042/2280, PCI-E 3.0 x2/SATA/USB
4. Up to 256GB ECC RDIMM DDR4 2400MHz or 64GB ECC/non-ECC UDIMM in 4 DIMM slots
5. 4x 10GbE LAN, 1x 1GbE LAN (IPMI shared LAN)
6. USB 3.0 (4 front Type-A), 1 VGA, 1 SuperDOM, TPM
7. 3x 40x28mm 4-pin PWM fans
8. 200W Low-noise AC-DC power supply
9. Intel® Quick Assist Technology
Extra Specifications for Supermicro SYS-5019A-FN5T 1U Barebone Intel Atom C3958 Processor Up to 256GB RDIMM SATA3 Quad 10GbE
| Motherboard | ||
| Motherboard | Super A2SDV-16C-TLN5F | |
| System Memory | ||
| Memory Capacity | 4x DDR4 DIMM sockets | |
| Supports up to 64GB DDR4 ECC/non-ECC UDIMM | ||
| Supports up to 256GB DDR4 ECC RDIMM | ||
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 64GB, 32GB, 16GB, 8GB, 4GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SoC controller for 2 SATA3 (6Gbps) ports | |
| Network Controllers | Quad 10GBase-T LAN with Intel® X557 | |
| Single Gigabit Ethernet LAN with Intel® i210 | ||
| IPMI | Aspeed AST2400 BMC | |
| Graphics | Aspeed AST2400 integrated VGA | |
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 4x 10GbE LAN ports | |
| 1x 1GbE LAN (IPMI shared LAN) | ||
| USB | 5 USB 3.0 (4 rear, Type-A) | |
| 2 USB 2.0 (2 via headers) | ||
| Serial Port | 1 COM via RJ45 | |
| DOM | 1 SATA DOM (Disk on Module) power connector | |
| VGA | 1 VGA Port | |
| Others | TPM header | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-505-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Weight | Net Weight: 8 lbs (3.62 kg) | |
| Gross Weight: 12 lbs (5.44 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x8 | |
| 1 M-Key 2242/2280 , PCI-E 3.0 x2/SATA | ||
| 1 B-Key 3042/2280 PCI-E 3.0 x2/SATA/USB | ||
| Drive Bays | ||
| HDD | 1x 3.5" or 2x 2.5" internal hard drive bays | |
| System Cooling | ||
| Fans | 3x 40x28mm 4-PIN PWM Fan (FAN-0065L4, 13K RPM) | |
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | AMI UEFI BIOS | |
| BIOS Features | UEFI 2.4 | |
| SMBIOS 2.7.1 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Processor | ||
| CPU | FCBGA 1310 supported | |
| Intel® Atom® processor C3958 | ||
| CPU TDP support 31W | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5019A-FN5T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-A2SDV-16C-TLN5F | 1 | Super A2SDV-16C-TLN5F Motherboard | |
| Motherboard / Chassis | CSE-505-203B | 1 | 1U Chassis | |
| FAN 1 | FAN-0065L4 | 3 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Rear Window | MCP-240-00091-0N | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Parts | MCP-260-00135-0B | 1 | 1U 504/505/510 I/O Shield for A2SDV-LN10PF with EMI Gasket | |
| Fan Holder | MCP-320-81302-0B | 3 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) | |
| Riser Card | RSC-RR1U-E8 | 1 | RSC-RR1U-E8 | |
| Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| HDD Bracket | MCP-220-00051-0N | $ 19.00 | 0 | Single 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
