| Main Specifications |

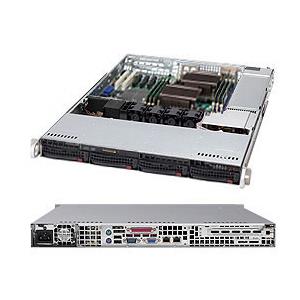

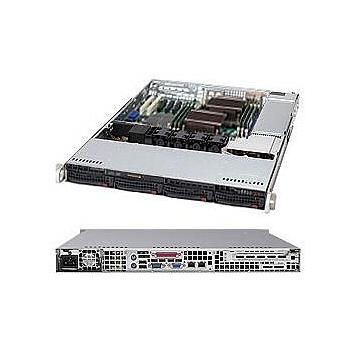

| Device Type | SuperChassis 815TQ-600CB |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) |
| Color | Black |
| Form Factor | 1U chassis support for max. motherboard size - 13.68" x 13" |
| Weight | 36 lbs (16.4kg) |
| Processor |
| Compatible Processors | Supports dual Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x full-height, full-length PCI expansion slot (Riser Card Required) |
| Peripheral Drives |
| DVD-ROM | Slim DVD-ROM drive (optional) |
| Drive Bays |
| Hot-swap | 4x 3.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended |
| System Cooling |
| Fans | 4x 4cm Counter-rotating PWM fans |
| 4x FAN-0086L4 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Humidity Range 8 - 90% non-condensing |
| Environmental Parameters |
| Operating Temperature | Operating Temperature Range 10 - 35C (50 to 95 F) |
| Non-Operating Temperature Range -40 - +70C (-40 to 158 F) |
| Power Supply |
| Certification | 80PLUS Platinum |
| Power Supply | 1x PWS-605P-1H |
| 600W AC power supply w/ PFC (24-pin) |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, China - CCC Mark, Europe/CE Mark, EN 60950/IEC 60950-Compliant, Germany - TUV Certified |
| Standard Parts List |
| Accessory | 1x MCP-120-00053-0N |
| Chassis | 1x CSE-815TQ-600CB |
| Fan Holder | 1x CSE-PT0135, 2x MCP-340-00035-0B |
| Front Panel | 1x FPB-FP813-D |
| Peripheral Drive Covers | 1x CSE-PT93L-B |
| Rear Window | 1x MCP-240-00085-0N |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-19001-0N |
| Backplane | 1x BPN-SAS-815TQ |
| Drive Trays | 4x MCP-220-00075-0B, 1x MCP-220-00081-0N |
| Mounting Rails | 1set MCP-290-00109-0N, 1set MCP-290-00101-0N, 1set MCP-290-00105-0N |
| Parts List |
| Cables | 1x CBL-0180L-01, 1x CBL-0157L, 1x CBL-0160L, 1x CBL-0071L |
