Supermicro SYS-1029U-TN12RV-NEBS-DC 1U Barebone Dual Intel Xeon Scalable Processor Up to 2TB RDIMM SATA3 Network via Ultra Riser Card
• Telekommunikationszentrale und Rechenzentrum
• 5G Core und Edge Computing
• KI und maschinelles Lernen
• Virtualisierung von Netzwerkfunktionen
• Cloud Computing
Barebone 1U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621 chipset, Up to 2TB in 24 DIMM Slots, SATA3, 12x2.5in drive bays, Network via Ultra Riser Card, 1300W Redundant Power Supply (CSE-119UHTS-R1K30HP-NEBS + X11DPU-V)
This product is no longer available.
1. NEBS Level 3 zertifiziert für Telekommunikation
2. Unterstützung für zwei Sockel P (LGA 3647) 2. Generation Intel® Xeon® Skalierbar Verarbeiter (Cascade Lake/Skylake) ‡
3. 24 DIMMs; bis zu 2TB 3DS ECC DDR4-2933MHz † RDIMM
4. 2 PCI-E 3.0 x16 (FH, 10,5 "L), 1 PCI-E 3.0 x8 (LP), 1 interner PCI-E 3.0 x16 (für SMCI-Speicher-Controller)
5. Flexible Netzwerkoptionen, bis zu 25GbE über Ultra Riser-Karte

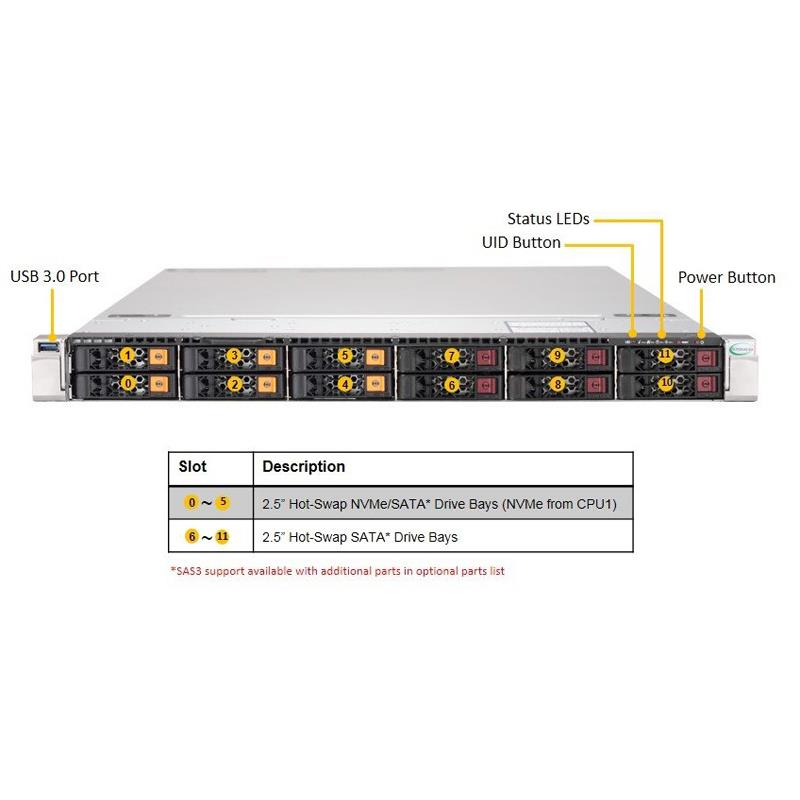

6. 12 Hot-swap 2,5"-Laufwerksschächte (6 NVMe/SATA3 + 6 SATA)
7. 8 Hochleistungslüfter mit optimaler Lüfterdrehzahlregelung
8. Redundante 1300-W-Netzteile Gold-Stufe (92%)
Extra Specifications for Supermicro SYS-1029U-TN12RV-NEBS-DC 1U Barebone Dual Intel Xeon Scalable Processor Up to 2TB RDIMM SATA3 Network via Ultra Riser Card
| Motherboard | ||
| Motherboard | Super X11DPU-V | |
| Processor | ||
| CPU * | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-150W | ||
| Cores | Up to 24 Cores | |
| Note | * Refer to NEBS Tested Parts List for NEBS compliant CPUs supported | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-2933MHz † RDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro * Refer to NEBS Tested Parts List for NEBS compliant memory modules supported | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) | |
| Network Connectivity | Networking options provided via Ultra Riser card | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| NVMe | 6 NVMe/SATA ports (NVMe from CPU 1) | |
| SATA | 6 SATA3 (6Gbps) ports | |
| SAS | 8 SAS optional via AOC-S3108L-H8IR-16DD | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Networking options provided via Ultra Riser card | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| Serial Port | 1 Serial header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-119UHTS-R1K30HP-NEBS | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.1" (739mm) | |
| Gross Weight | 48 lbs (21.8 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System UID button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| UID LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (LP) | |
| 1 Internal PCI-E 3.0 | ||
| 2 PCI-E 3.0 x16 (FH, 10.5"L) | ||
| Drive Bays / Storage | ||
| Hot-swap | 12 Hot-swap 2.5" drive bays, 6 NVMe/SATA ports (NVMe from CPU1) and 6 SATA ports | |
| Optional SAS support via AOC-S3108L-H8IR-16DD | ||
| Note | Refer to NEBS Tested Parts List for NEBS compliant drives supported | |
| System Cooling | ||
| Fans | 8 Heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| -48Vdc Input Redundant Power Supplies | ||
| -48Vdc Input Redundant Power Supplies | 1300W DC48V Redundant Power Supplies | |
| Total Output Power | 1300W: -44Vdc to -65Vdc | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | -44Vdc to -65Vdc / Max: 41A to 27A | |
| +12V | Max: 108.3A / Min: 0A (-44 to -65Vdc) | |
| +12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 pair Gold Finger | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: Continuous: 5°C ~ 40°C (41°F ~ 104°F) Short term: -5°C ~ 55°C (23°F ~ 131°F) | ||
| Operating Relative Humidity: 5% to 85% with excursions of 5% to 93% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1029U-TN12RV-NEBS-DC (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPU-V | 1 | Super X11DPU-V Motherboard | |
| Motherboard / Chassis | CSE-119UHTS-R1K30HP-NEBS | 1 | CSE-119UHTS-R1K30HP-NEBS | |
| Backplane | BPN-SAS3-119A-N12 | 1 | 1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-CDAT-0190 | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG | |
| Cable 2 | CBL-PWEX-0710 | 2 | 48VDC Input Power Cable for PWS-1K60D-1R, 4M, 8AWG, RoHS/REA | |
| Cable 3 | CBL-PWEX-0781 | 1 | PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS | |
| Cable 4 | CBL-PWEX-1067 | 1 | PWEX,2X2F/P4.2 TO 2x4F/P4.2,BLK*2,YEL*1,RED*1,61CM,16AWG | |
| Cable 5 | CBL-SAST-0655 | 1 | (SATA 8-11) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG | |
| Cable 6 | CBL-SAST-0656 | 1 | (SATA 4-7) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG | |
| Cable 7 | CBL-SAST-0657 | 1 | (SATA 0-3) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG | |
| Cable 8 | CBL-SAST-0822-1 | 1 | (NVMe 0-1) SLIMLINE x8 (RE) to 2x Oculink x4, 63/63CM,85 OHM | |
| Cable 9 | CBL-SAST-1149-85 | 1 | (NVMe 4.5) SLIMLINE SAS x8 (RE) to 2x Oculink x4,INT, 49CM, 85 OHM | |
| Cable 10 | CBL-SAST-1154-85 | 1 | (NVMe 2-3) SLIMLINE x8 (RE) to 2x Oculink x4,INT, 54CM, 85 OHM | |
| Drive Tray(s) | MCP-220-00178-0B | 6 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | |
| Drive Tray(s) | MCP-220-00187-0B | 6 | 2.5 thin profile drive tray, standard color tab, for SC119UH | |
| Air Shroud | MCP-310-11601-0B | 1 | (CPU2) Mylar air shroud for SC116U (X11 24DIMM, left side) | |
| Air Shroud | MCP-310-11906-0B | 1 | (CPU1) Right side air shroud with foam air block | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-1K30D-1R | 2 | 1U 1300W -48Vdc single output power supply gold Level, Redun | |
| * Cable 11 | CBL-CDAT-0218 | 1 | CBL,CNTL PANEL CONVERTER,FOR 809H and CSE119UH,FFC,20PIN,15C | |
| * Cable 12 | CBL-CUSB-0996 | 1 | USB 3.0(F) Type A, RA to USB3.0 20pin,60CM,26/30AWG,RoHS | |
| * FAN 1 | FAN-0163L4 | 8 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan/td> | |
| * Front Panel | FPB-FP119UH | 1 | Front control board for 119UHTS 1U Ultra | |
| * Rear Window | MCP-240-81916-0N | 1 | Rear window for SC819U, 119U tool-less chassis (No opening) | |
| * Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6\" to 33.05\" | |
| * Rail Set | MCP-290-00112-0N | 1set | Inner rail, extension, long (quick) for 1U 17.2 | |
| * Rail Set | MCP-290-00120-0N | 1set | Inner rail, front, quick-release type (thumb screw appiled) | |
| * Air Shroud | MCP-310-81905-0B | 1 | Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH |
