Supermicro SYS-220BT-DNC8R BigTwin 2U Barebone 2-Node Dual Intel Xeon Scalable Processor 3rd Generation Up to 4TB DRAM NVMe, SAS, SATA3 Network Via AIOM
• All-Flash Hyperconverged Infrastructure
• All-Flash Storage Area Network
• All-Flash Object Storage
Barebone BigTwin 2U Rackmount SuperServer 2-Node, Dual Socket P+ (LGA-4189) Intel Xeon Scalable Processors 3rd Generation, Intel C621A chipset, Up to 4TB in 20 DIMM Slots, NVMe, SAS, SATA3, 12x 2.5in drive bays, Network via AIOM, 2200W Redundant Power Supply (CSE-217BD-000NP + X12DPT-B6)
1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
2. Intel® C621A
3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
4. 1 PCIe 4.0 x16 (LP) slot; 1 PCIe 4.0 x8 (LP) slot; Tool-less support Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only) Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
5. Network connectivity via AIOM (OCP 3.0 compliant)
6. 12 Hot-swap 2.5" drive bays; 12 PCIe 4.0 NVMe/SAS/SATA 2.5" drives
7. 2 cooling fans per node, 16.5K RPM
8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
9. Built-in SAS3 Support via Broadcom 3816; IT Mode
Extra Specifications for Supermicro SYS-220BT-DNC8R BigTwin 2U Barebone 2-Node Dual Intel Xeon Scalable Processor 3rd Generation Up to 4TB DRAM NVMe, SAS, SATA3 Network Via AIOM
Motherboard | ||
Motherboard | Super X12DPT-B6 | |
Processor (per Node) | ||
CPU | Dual Socket P+ (LGA 4189) | |
3rd Gen Intel® Xeon® Scalable processors | ||
Support CPU TDP 270W * | ||
Cores | 40C/80T | |
Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
System Memory (per Node) | ||
Memory | Intel® Optane™ persistent memory 200 series | |
Memory Capacity: 16 DIMM slots (16 DRAM + 4 PMem) | ||
Memory Type: 3200MHz ECC DDR4 RDIMM | ||
Up to 4TB: 16x 256 GB DRAM | ||
Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem | ||
On-Board Devices (per Node) | ||
SAS | SAS3 (12Gbps) via Broadcom® 3816 (IT mode) | |
Chipset | Intel® C621A | |
Network Connectivity | Via AIOM | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output (per Node) | ||
LAN | 1 RJ45 Dedicated BMC LAN port | |
USB | 2 USB 3.0 port(s) (2 rear) | |
Video | 1 VGA port(s) | |
Others | M.2 for boot drive only | |
System BIOS | ||
BIOS Type | AMI 32MB Flash ROM | |
Management | ||
Software | Watch Dog | |
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
SuperCloud Composer | ||
Supermicro Out of Band (OOB) License (Included per Node) | ||
Power Configurations | ACPI / APM Power Management | |
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
7+1 Phase-switching voltage regulator | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-217BD-000NP | |
Dimensions and Weight | ||
Height | 3.47" (88mm) | |
Width | 17.68" (449mm) | |
Depth | 28.75" (730mm) | |
Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
Weight | Net Weight: 54.5 lbs (24.7 kg) | |
Gross Weight: 85 lbs (38.6 kg) | ||
Available Color | Black | |

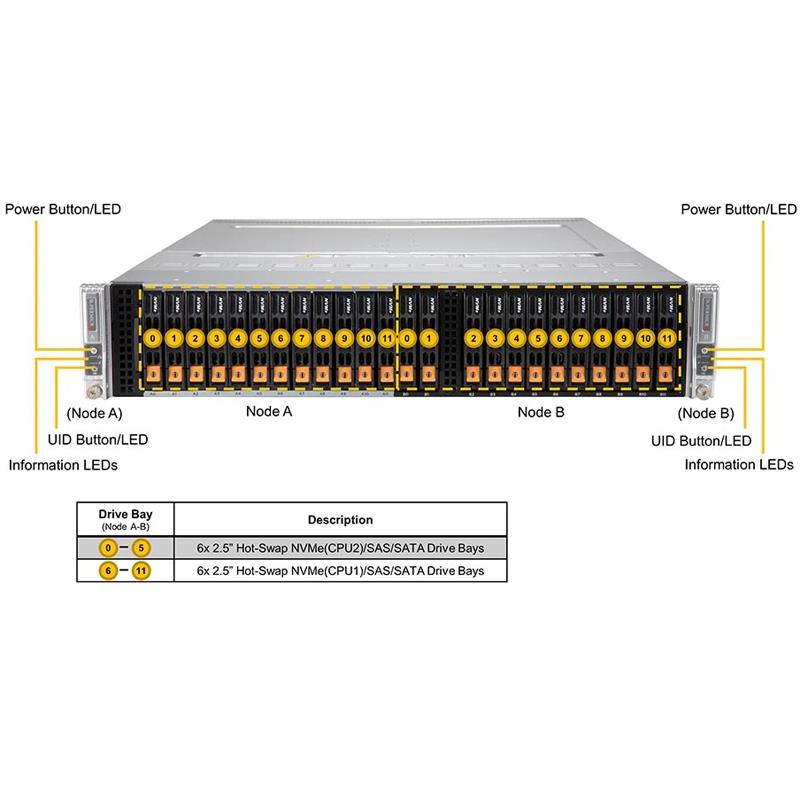

Front Panel | ||
Buttons | Power On/Off button | |
UID button | ||
LEDs | Network activity LEDs | |
Power status LED | ||
HDD activity LED | ||
Universal Information (UID) LED | ||
Drive Bays / Storage (per Node) | ||
Hot-swap | 12x 2.5" hot-swap NVMe/SATA/SAS drive bays (12x 2.5" NVMe hybrid) | |
System Cooling | ||
Fans | 4x 16.5K RPM Heavy Duty 8cm Fan(s) | |
Power Supply | ||
Total Output Power | 2200W : 100 - 240 Vac | |
2090W : 230 - 240 Vdc for CCC only | ||
Dimension (W x H x L) | 45 x 40 x 480 mm | |
AC Input | 1800W: 200-220Vac / 50-60Hz | |
1980W: 220-230Vac / 50-60Hz | ||
1200W: 100-127Vac / 50-60Hz | ||
2090W: 230-240Vac / 50-60Hz | ||
2090W: 180-220Vac (for UL/cUL only) | ||
2200W: 220-240Vac (for UL/cUL only) | ||
2090W: 230-240Vdc (for CCC only) | ||
+12V | Max: 100A / Min: 0A (100-127Vac) | |
Max: 150A / Min: 0A (200-220Vac) | ||
Max: 165A / Min: 0A (220-230Vac) | ||
Max: 174.17A / Min: 0A (230-240Vac) | ||
Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
12V SB | Max: 2.1A / Min: 0A | |
Certification | Titanium Level | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
Product SKUs | ||
Product SKUs | SYS-220BT-DNC8R | |
Expansion Slots (per Node) | ||
PCI-Express (PCIe) | 1 PCIe 4.0 x8 LP slot(s) | |
1 PCIe 4.0 x16 LP slot(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
2.5" Tool-less NVMe Tray | MCP-220-00167-0B | $ 28.50 | 0 | Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed) | ||
2.5" Tool-less SAS/SATA Tray | MCP-220-00147-0B | $ 28.50 | 0 | Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed) | ||
M.2 NVMe RAID Controller | AOC-SMG3-2M2-B-P | 0 | 2x M.2 NVMe RAID Controller Card, x8 Gen3 | |||
SPI Capable TPM Options | AOM-TPM-9670H-S | $ 56.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node) | ||
SPI Capable TPM Options | AOM-TPM-9671H-S | $ 56.50 | 1 | SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node) | ||
SPI Capable TPM Options | AOM-TPM-9670H-FIPS | $ 63.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node) | ||
SuperCloud Composer License | SFT-SDDC-SINGLE | $ 303.50 | 0 | SDDC Monitor License - Single License per Monitored host | ||
System Management Suite | SFT-DCMS-Single | 0 | Supermicro System Management Software Suite node | |||
VROC Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 (Qty per Node) | ||
VROC Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
