Supermicro SYS-620BT-DNTR BigTwin 2U Barebone 2-Node Dual Intel Xeon Scalable Processors 3rd Generation Up to 4TB DRAM SATA, NVMe Network Via AIOM
• Hyperconverged Infrastructure
• Scale-Out Object Storage
• Back-up & Recovery
Barebone BigTwin 2U Rackmount SuperServer 2-Node, Dual Socket P+ (LGA-4189) Intel Xeon Scalable Processors 3rd Generation, Intel C621A chipset, Up to 4TB in 20 DIMM Slots, SATA, NVMe 6x 3.5in drive bays, network via AIOM, 2200W Redundant Power Supply (CSE-827BD-000NP + X12DPT-B6)
This product is no longer available.
1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
2. Intel® C621A
3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
4. Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4) 1 PCIe 4.0 x16 (LP) slot; 2 PCIe 4.0 x8 (LP) slot; Tool-less support Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only) Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
5. Network connectivity via AIOM (OCP 3.0 compliant)

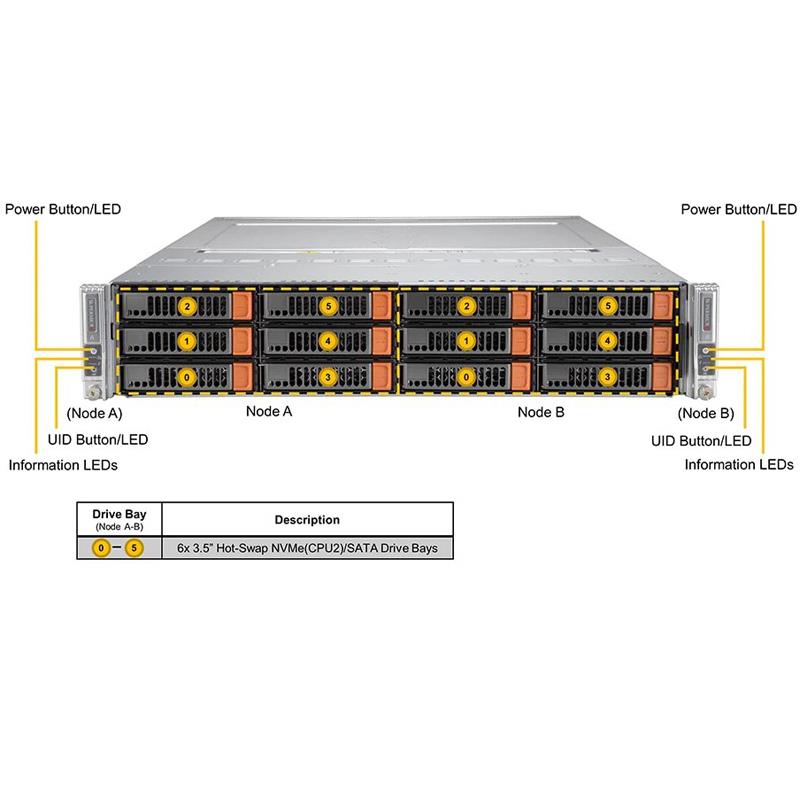

6. 6 Hot-swap 3.5" drive bays; 6 PCIe 4.0 NVMe/SATA 3.5" drives
7. 2 cooling fans per node, 14.9K RPM
8. 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Extra Specifications for Supermicro SYS-620BT-DNTR BigTwin 2U Barebone 2-Node Dual Intel Xeon Scalable Processors 3rd Generation Up to 4TB DRAM SATA, NVMe Network Via AIOM
| Motherboard | ||
| Motherboard | Super X12DPT-B6 | |
| Processor (per Node) | ||
| CPU | Dual Socket P+ (LGA 4189) | |
| 3rd Gen Intel® Xeon® Scalable processors | ||
| Support CPU TDP 250W * | ||
| Cores | 36C/72T | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory (per Node) | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 16 DIMM slots (16 DRAM + 4 PMem) | ||
| Memory Type: 3200MHz ECC DDR4 RDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem | ||
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621A | |
| Network Connectivity | Via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Others | M.2 for boot drive only | |
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| SuperCloud Composer | ||
| Supermicro Out of Band (OOB) License (Included per Node) | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 7+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827BD-000NP | |
| Dimensions and Weight | ||
| Height | 3.47" (88mm) | |
| Width | 17.68" (449mm) | |
| Depth | 30.5" (774mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Net Weight: 87.13 lbs (39.52 kg) | |
| Gross Weight: 114.66 lbs (52.01 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 6x 3.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid; 6x 3.5" NVMe hybrid) | |
| System Cooling | ||
| Fans | 4x 14.9K RPM Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Total Output Power | 2200W : 100 - 240 Vac | |
| 2090W : 230 - 240 Vdc for CCC only | ||
| Dimension (W x H x L) | 45 x 40 x 480 mm | |
| AC Input | 1800W: 200-220Vac / 50-60Hz | |
| 1980W: 220-230Vac / 50-60Hz | ||
| 1200W: 100-127Vac / 50-60Hz | ||
| 2090W: 230-240Vac / 50-60Hz | ||
| 2090W: 180-220Vac (for UL/cUL only) | ||
| 2200W: 220-240Vac (for UL/cUL only) | ||
| 2090W: 230-240Vdc (for CCC only) | ||
| +12V | Max: 100A / Min: 0A (100-127Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-620BT-DNTR | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x8 LP slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 | RSC-P2R-6G4 | $ 50.50 | 0 | expansion slots | ||
| 3.5-to-2.5" HDD Conversion Tray | MCP-220-00140-0B | $ 31.50 | 0 | Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed) | ||
| CacheVault for RAID Controller | BTR-CVPM05 BKT-BBU-BRACKET-05 | 0 | Broadcom CacheVault Mounting Bracket | |||
| M.2 NVMe RAID Controller | AOC-SMG3-2M2-B-P | 0 | 2x M.2 NVMe RAID Controller Card, x8 Gen3 | |||
| SAS3908 RAID Controller | AOC-S3908L-H8iR-16DD CBL-SAST-1234F-100 | 1 | SAS3908 HW RAID Controller 12Gb/s SAS, x8 Gen4 (Qty per Node) Slimline x8 (STR) to Slimline x8 (STR) for 8 drives support | |||
| SPI Capable TPM Options | AOM-TPM-9670H-S | $ 56.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node) | ||
| SPI Capable TPM Options | AOM-TPM-9671H-S | $ 56.50 | 1 | SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node) | ||
| SPI Capable TPM Options | AOM-TPM-9670H-FIPS | $ 63.50 | 1 | SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node) | ||
| SuperCloud Composer License | SFT-SDDC-SINGLE | $ 303.50 | 0 | SDDC Monitor License - Single License per Monitored host | ||
| System Management Suite | SFT-DCMS-Single | 0 | Supermicro System Management Software Suite node | |||
| VROC Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 (Qty per Node) | ||
| VROC Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node) |
