- Supermicro SYS-E403-9D-16C-FRDN13+ Box PC Barebone Intel Xeon D-2183IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
Supermicro SYS-E403-9D-16C-FRDN13+ Box PC Barebone Intel Xeon D-2183IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
• Multi-Access Edge Computing (MEC)
• Universal Customer Premise
• Equipment (uCPE)
• Network Function Virtualization (NFV)
• Edge Computing, Vehicle to
• Everything Application (C-V2X / V2X)

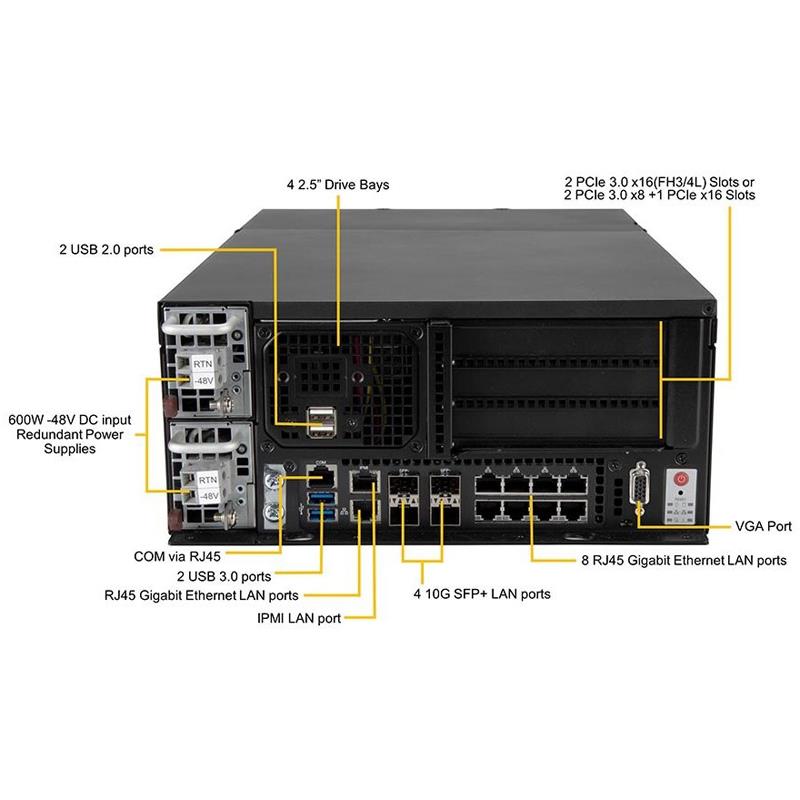

Barebone Box PC SuperServer Intel Xeon D-2183IT, System on Chip, Up to 512GB in 4 DIMM Slots, SATA3, 4x 2.5in drive bays, 4x 10G SFP+ via SoC, 600W -48V DC Redundant Power Supply (CSE-E403iF-000NDBP2 + X11SDW-16C-TP13F+)
1. Intel® Xeon® D-2183IT Processor, 16 Cores, 32 Threads, 2.2 GHz, 100W
2. Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 + 1 PCI-E 3.0 x16 (FHFL) slots
4. 4 Internal 2.5" drive bays
5. M.2: 1 M-Key 2280/22110, 1 E-Key 2230, 1 B-Key, 3042
6. 9 GbE (one for Ethernet management), 4x 10G SFP+, 1 Dedicated IPMI LAN port
7. 2 USB 3.0, 2 USB 2.0, 1 COM via RJ45, VGA via BMC
8. 600W -48V DC input Redundant Power Supplies
Extra Specifications for Supermicro SYS-E403-9D-16C-FRDN13+ Box PC Barebone Intel Xeon D-2183IT Processor Up to 512GB LRDIMM SATA3 4x 10G SFP+ via SoC
Motherboard | ||
Motherboard | Super X11SDW-16C-TP13F+ | |
Processor | ||
CPU | Intel® Xeon® processor D-2183IT , CPU TDP support 100W | |
Cores / Cache | 16 Cores, 32 Threads | |
System Memory | ||
Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
Up to 256GB DDR4 ECC RDIMM | ||
4 DIMM slots | ||
Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM | |
Operating speed up to 2400MHz | ||
DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
Memory Voltage | 1.2 V | |
On-Board Devices | ||
Chipset | System on Chip (SoC) | |
SATA | SATA3 (6Gbps) ports via SoC controller | |
Network Controllers | Single 1GbE with Intel I210 | |
8x 1GbE with Intel I350-AM4 | ||
4x 10G SFP+ via SoC | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Video | VGA via Aspeed AST2500 BMC | |
Input / Output | ||
SATA | 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
9 RJ45 Gigabit Ethernet LAN ports | ||
4 10G SFP+ LAN ports | ||
USB | 2 USB 3.0 ports (front) | |
2 USB 2.0 ports (front) | ||
Video | 1 VGA port | |
Serial Port / Header | 1 COM via RJ45 | |
System BIOS | ||
BIOS Type | 128Mb SPI Flash with AMI BIOS | |
Management | ||
Software | Watch Dog | |
NMI | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
Chassis | ||
Form Factor | Box PC | |
Model | CSE-E403iF-000NDBP2 | |
Dimensions and Weight | ||
Height | 4.62" (117mm) | |
Width | 10.5" (267mm) | |
Depth | 16" (406mm) | |
Weight | Gross Weight: 23 lbs (10.43 kg) | |
Net Weight: 17 lbs (7.7 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Power LED | |
System Information LED | ||
Network activity LEDs | ||
Hard drive activity LED | ||
Expansion Slots | ||
PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots or | |
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FHFL) slots | ||
M.2 | 1 M.2 M-Key , 2280/22110 | |
1 M.2 E-Key , 2230 | ||
1 M.2 B-Key , 3042 | ||
Drive Bays | ||
Internal | 4 Internal 2.5" drive bays | |
System Cooling | ||
Fans | 3x 80x80mm PWM redundant fans | |
600W -48V DC input Redundant Power Supplies | ||
Total Output Power | 600W: -44Vdc to -65Vdc | |
Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
DC Input | -44Vdc to -65Vdc / 18 - 10A | |
+12V | Max: 50A / Min: 0A | |
+5V sb | Max: 3A / Min: 0A | |
Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
DC option for: (AC Counter- part) | PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R, PWS-804P-1R | |
Operating Environment / Compliance | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) | ||
Product SKUs | ||
Product SKUs | SuperServer E403-9D-16C-FRDN13+ (Black) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X11SDW-16C-TP13F+ | 1 | Super X11SDW-16C-TP13F+ Motherboard | |
Motherboard / Chassis | CSE-E403iF-000NDBP2 | 1 | Black 2.5U Embedded redundant BOX for FlexATX MB, W/O PWS | |
Add-on Card / Module | AOM-SDW-B16X2-P | 1 | AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS | |
Cable 1 | CBL-0082L | 2 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | |
Cable 2 | CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS | |
Cable 3 | CBL-CUSB-0831 | 1 | [NR] USB2.0, 2 PORT,2x TYPE-A to 2X5/P2.54,63cm,26AWG,RoHS | |
Cable 4 | CBL-SAST-0641 | 4 | 45cm SATA Cable S-RA 30AWG,RoHS/REACH | |
FAN | FAN-0201L4 | 3 | 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan | |
Parts | MCP-260-00153-0B | 1 | 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black | |
Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
Power Distributor | PDB-PT403-8824 | 1 | PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst |
