Supermicro AS-4124GO-NART A+ 4U Barebone Dual AMD EPYC 7003/7002 Series Processor Up to 8TB RDIMM SATA3, NVMe Network via AIOM
• High Performance Computing
• AI / Deep Learning

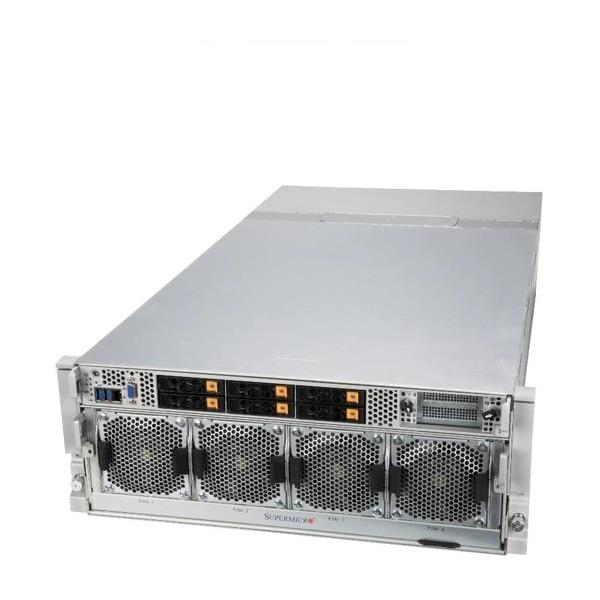

Barebone A+ 4U Rackmount Server Dual AMD EPYC 7003/7002, System on Chip, Up to 8TB in 32 DIMM Slots, SATA3, NVMe, 6x 2.5in drive bays, network via AIOM, 2200W Redundant Power Supply (CSE-438G + H12DGO-6)

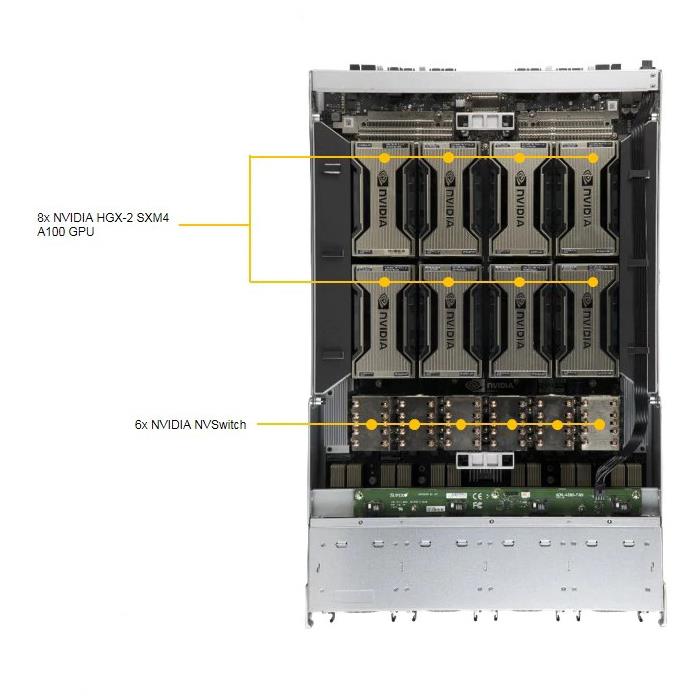

1. Supports NVIDIA® HGX™ A100 8-GPU; Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™; NICs for GPUDirect RDMA (1:1 GPU Ratio)
2. Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
3. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

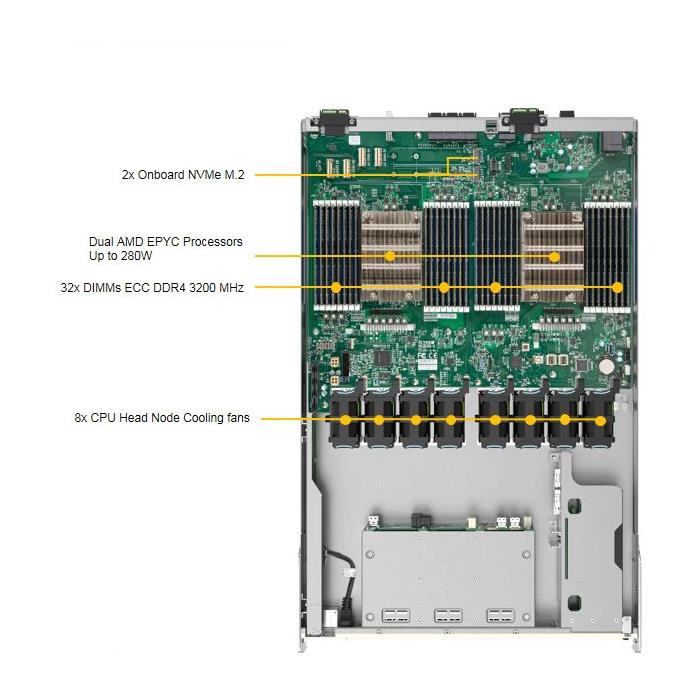

4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
5. 8 PCI-E 4.0 x16 via PCI-E switch; 1 PCI-E 4.0 x 16 LP and 1 PCI-E 4.0 x8 LP via CPUs; AIOM Support

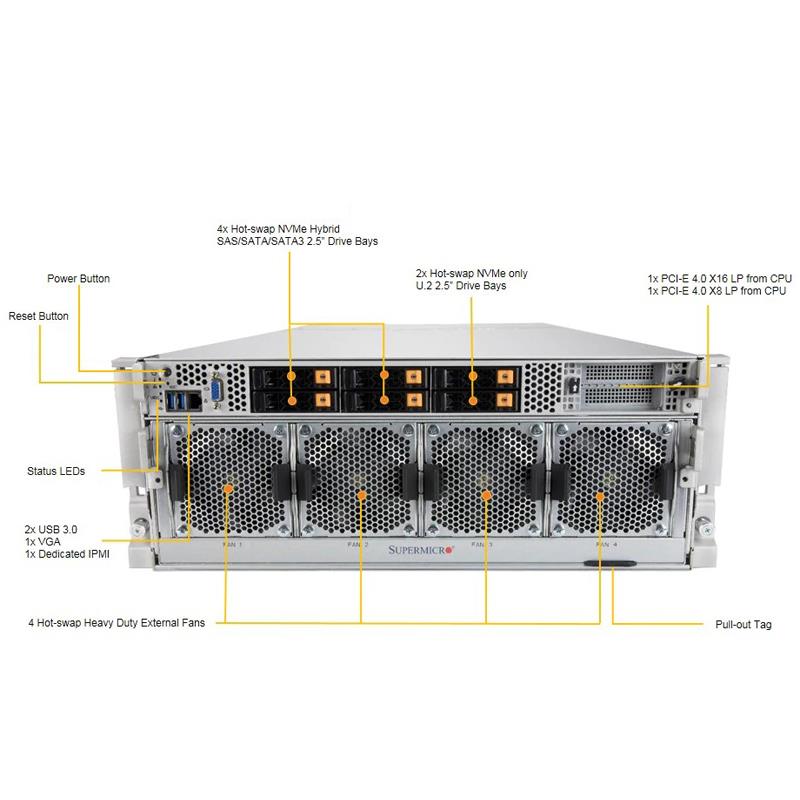

6. 6 Hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU) Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system
7. Flexible Networking via AIOM, 1 dedicated IPMI LAN Port
8. 4 Hot-swap heavy-duty cooling fans
9. 2200W (3+1) Redundant Platinum Level Power Supplies (full redundancy based on configuration and application load); 3000W (2+2) Redundant Titanium Level (96%+) Power Supply option available for upgrade
Extra Specifications for Supermicro AS-4124GO-NART A+ 4U Barebone Dual AMD EPYC 7003/7002 Series Processor Up to 8TB RDIMM SATA3, NVMe Network via AIOM
Motherboard | ||

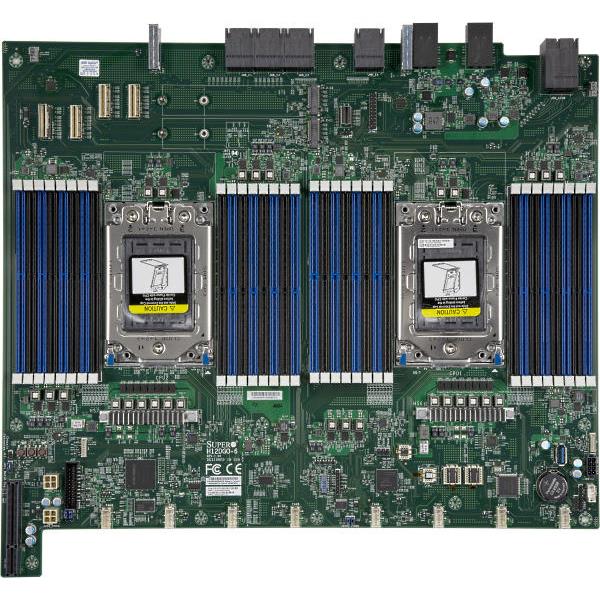

Motherboard | Super H12DGO-6 | |
Processor/Cache | ||
CPU | Socket SP3 | |
Supports CPU TDP up to 280W * | ||
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
Cores | Up to 128 Cores (64 per CPU) | |
Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
GPU | ||
Supported GPUs | HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board | |
CPU-GPU Interconnect | PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect | |
GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect | |
System Memory | ||
Memory Capacity | 32 DIMM slots | |
Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM | ||
Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM | |
On-Board Devices | ||
Chipset | System on Chip (SoC) | |
SATA | SATA3 (6Gbps) | |
Network Controllers | Provided via AIOM | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Graphics | ASPEED AST2600 BMC | |
Input / Output | ||
SATA | 4 SATA3 (6Gbps) ports | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
Provided by AIOM | ||
USB | 2 USB 3.0 ports (front) | |
Video | 1 VGA Connector (front) | |
COM Port | 1 COM port (header) | |
System BIOS | ||
BIOS Type | AMI 256Mb SPI Flash ROM | |
Management | ||
Software | Watchdog | |
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
IPMI 2.0 | ||
SSM , SPM , SUM | ||
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 4U Rackmountable | |
Rackmount Kit (MCP-290-00180-0N) | ||
Model | CSE-438G | |
Dimensions | ||
Height | 6.9" (174mm) | |
Width | 17.6" (446mm) | |
Depth | 35.4" (900mm) | |
Package | 29.5" (750mm) H x 27.4" (695mm) W x 44.9" (1140mm) D | |
Weight | Net Weight: 166.0 lbs (75.3 kg) | |
Gross Weight: 225.0 lbs (102.1 kg) | ||
Drive Bays / Storage | ||
Hot-swap | 6 hot-swap U.2 NVMe 2.5" drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA) (up to 10 hot-swap U.2 NVMe 2.5" available) | |
M.2 | 2 M.2 NVMe | |
Expansion Slots | ||
PCI-Express | 8 PCI-E 4.0 x16 via PCI-E switch - supporting HGX A100 8-GPU's 1:1 connection to 8 NICs | |
1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs | ||
System Cooling | ||
Fans | 4 x Hot-swap 11.5K RPM heavy duty fans | |
Power Supply | ||
Power Supply | 2200W Redundant Platinum Level Power Supplies | |
Total Output Power | 1000W with Input 100 - 127Vac | |
2200W with Input 220 - 240Vac (for UL/cUL only) | ||
2090W with Input 230 - 240Vdc (for CQC only) | ||
Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz | ||
2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
2200W: 220-240 Vac / 11.8-9.6 A / 50-60 Hz (for UL/cUL only) | ||
2090W: 230-240 Vdc / 10-9.8 A / 50-60 Hz (for CQC only) | ||
+12V | Max: 41.67A / Min: 0A (500W) | |
+54V | Max: 18.5A / Min: 0A (1000W) | |
Max: 33.33A / Min: 0A (1800W) | ||
Max: 36.6A / Min: 0A (1980W) | ||
Max: 38.7A / Min: 0A (2090W) | ||
Max: 40.74A / Min: 0A (2200W) | ||
12Vsb | Max: 3A / Min: 0A | |
Output Type | Gold Finger (connector on M/P) | |
Certification | Platinum Certified | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Product SKUs | ||
Product SKUs | A+ Server 4124GO-NART |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Cable 2 | CBL-GNZ2-1282FLP-85 | 1 | 2x SlimlineLP x8 (STR), 4x Slimline x4 to 3x SlimlineLP | |
Cable 1 | CBL-GNZ2-12105F-85 | 1 | GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105. | |
Cable 6 | CBL-SAST-1265A-100 | 1 | Slimline x4 (STR) to MiniSAS HD x4 (STR),65CM,100 OHM,R | |
FAN 1 | FAN-0196L4-1 | 4 | 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fa | |
Power Supply | PWS-2K21G-2R | 4 | AC-DC 2200W at high and 1200W at low line multi-output | |
Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors (Optional H12 Delta heatsink ***support up to 200W CPU ONLY***) | |
Heatsink / Retention | SNK-P1043V | 2 | 1U standard AMD vapor chamber Heat Sink (Standard H12 DELTA 1U heatsink) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Cable(s) | CBL-SAST-1224LP-85 | $ 37.50 | 0 | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | ||
Network Card(s) | AOC-A100G-M2CM-O | $ 532.50 | 0 | AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS | ||
RAID Card(s) | AOC-S3108L-H8IR-16DD | $ 588.50 | 0 | 8 ports, 12Gb/s per port, 8 Internal, Low-profile, 16 SATA/SAS drives | ||
Network Card(s) | AOC-SGP-I2 | $ 132.00 | 0 | Intel® i350 AM2 2-port RJ45 (1Gb/port) Gen3 x4 Standard Low Profile | ||
Network Card(s) | AOC-STGF-I2S-O | $ 310.00 | 0 | Intel® X710-BM2 2-port SFP+ (10Gb/port) Gen3 x8 Standard Low Profile | ||
TPM security module | AOM-TPM-9665V | $ 63.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | ||
Cable(s) | CBL-SAST-0532 | $ 55.00 | 0 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s (for AOC-S3008L-L8I and AOC-S3108L-H8IR-16DD) | ||
Cable(s) | CBL-SAST-1262-100 | $ 54.50 | 0 | Slimline x8 (STR) to 2x MiniSAS HD x4 (STR),62/62CM,100 (for AOC-S3908L-H8IR-16DD-O) | ||
Thin Profile Drive | MCP-220-00178-0B | $ 44.50 | 0 | 2.5" thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH |
