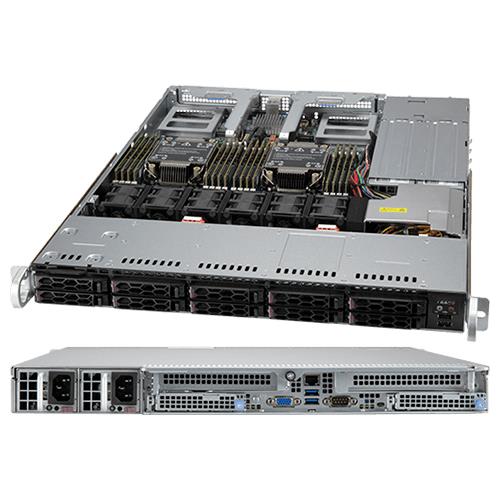

- Supermicro SYS-120C-TN10R CloudDC 1U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM NVMe, SAS, SATA3
Supermicro SYS-120C-TN10R CloudDC 1U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM NVMe, SAS, SATA3
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone CloudDC 1U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 4TB in 16 DIMM Slots, SATA3 and NVMe RAID support, 10x 2.5in NVMe, SATA, SAS drive bays, 860W Redundant Power Supply (CSE-LB16AC10-R860AW + X12DDW-A6)
This product is sold only as a completely assembled system.
1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
2. Intel® C621A Chipset
3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
4. 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
5. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
6. 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
9. 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)
Extra Specifications for Supermicro SYS-120C-TN10R CloudDC 1U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM NVMe, SAS, SATA3
| Motherboard | ||
| Motherboard | Super X12DDW-A6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations. | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Intel® Optane™ persistent memory 200 series | ||
| Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| NVMe | NVMe; RAID 0/1/5/10 support ((*VROC is required)) | |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | Via Slim-AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 1 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| SCC | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitorin | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-LB16AC10-R860AW | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 23.5" (597mm) | |
| Package | 7.7" (H) x 23.7" (W) x 31.8" (D) | |
| Weight | Gross Weight: 40 lbs (18.14 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| Universal Information (UID) | ||
| LEDs | Power status | |
| Network activity | ||
| Drive activity | ||
| Universal Information (UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (NVMe drives require additional cables from the optional parts list.) | |
| M.2 | 2 M.2 NVMe | |
| M-Key, 2280 | ||
| System Cooling | ||
| Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
| Output Type | Backplanes (gold finger) | |
| Certification | Platinum Level | |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
| 860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
| Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-120C-TN10R | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHHL slot(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 CacheVault | BTR-TFM8G-LSICVM02 | $ 279.00 | 1 | CacheVault for Broadcom 3108 (requires a mount) | ||
| 3108 CacheVault | BTR-CV3108-1U1 | $ 324.50 | 1 | CacheVault for Broadcom 3108 with mount for 1U 40 cm fan slot. (Note: It will replace one fan and lower overall system cooling) | ||
| 3108 RAID Card | AOC-S3108L-H8IR-16DD | $ 485.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3108 RAID Card | CBL-SAST-1260-100 | $ 38.00 | 1 | MiniSAS HD x8 (LE) to 2x Slimline x4 (STR) 60CM | ||
| 3808 HBA Card | AOC-S3808L-L8IT | $ 397.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA | ||
| 3808 HBA Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
| 3816 HBA Card | AOC-S3816L-L16IT | $ 497.50 | 1 | Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA | ||
| 3816 HBA Card | CBL-SAST-1265F-100 | $ 34.00 | 1 | Slimline x8 (STR) to Slimline x4 (STR) 64CM | ||
| 3816 HBA Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
| 3908 RAID Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
| 3908 RAID Card | AOC-S3908L-H8IR-16DD | $ 695.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3908/3916 CacheVault | BTR-CVPM05 | $ 207.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a mount) | ||
| 3916 RAID Card | AOC-S3916L-H16IR-32DD | $ 786.50 | 1 | Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3916 RAID Card | CBL-SAST-1265F-100 | $ 34.00 | 1 | Slimline x8 (STR) to Slimline x4 (STR) 64CM | ||
| 3916 RAID Card | CBL-SAST-1276F-100 | $ 37.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100 | ||
| AIOM Network Card(s) | AOC-AG-i2M | 0 | OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2 | |||
| AIOM Network Card(s) | AOC-A25G-m2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX | |||
| AIOM Network Card(s) | AOC-ATG-i2T2SM | 0 | OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4 | |||
| AIOM Network Card(s) | AOC-A25G-i4SM | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
| AIOM Network Card(s) | AOC-A25G-i2SM | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
| AIOM Network Card(s) | AOC-A25G-b2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2 | |||
| AIOM Network Card(s) | AOC-A100G-b2CM | 0 | OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508 | |||
| AIOM Network Card(s) | AOC-AG-i4M | 0 | OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-AG-i4SM | 0 | OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-AH25G-m2S2TM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2 | |||
| AIOM Network Card(s) | AOC-ATG-b2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416 | |||
| AIOM Network Card(s) | AOC-ATG-i2SM | 0 | OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2 | |||
| AIOM Network Card(s) | AOC-ATG-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2 | |||
| AIOM Network Card(s) | AOC-ATG-i4SM | 0 | OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1 | |||
| AIOM Network Card(s) | AOC-ATGC-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2 | |||
| Cable Management Arm | MCP-290-00152-0N | $ 152.00 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
| CacheVault Mount | MCP-240-00203-0N | $ 26.50 | 1 | CacheVault mounting bracket for PCIe slot | ||
| CacheVault Mount | MCP-240-00127-0N | $ 20.50 | 1 | CacheVault mounting tray for 2.5" drive bay | ||
| CacheVault Mount | MCP-240-21747-0N | 1 | CacheVault mounting card for AIOM slot | |||
| Fan Upgrade | FAN-0163L4 | $ 33.50 | 6 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan | ||
| Inlet Temp Sensor | MCP-280-00033-0N | $ 31.50 | 1 | Universal Thermal sensor kit with 80cm I2C cable | ||
| License | SFT-SDDC-SINGLE | $ 303.50 | 1 | Supermicro Data Center Monitor License | ||
| License | SFT-DCMS-SINGLE • | 1 | Supermicro System Managment Software License | |||
| M.2 Tray | AOC-SLG4-2H8M2 | $ 224.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1 | ||
| M.2 Tray | AOC-SLG3-2SM2 | $ 188.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1 | ||
| M.2 Tray | AOC-SLG3-2NM2 | $ 188.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1 | ||
| M.2 Tray | AOC-SLG3-2M2 | $ 54.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules | ||
| NC-SI Cable | CBL-PWEX-1099-34 | 1 | FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM | |||
| NVMe Cable | CBL-KIT-120C-TN10R-10 | $ 185.50 | 1 | Enables 10 NVMe drive bays. Kit includes: 4x CBL-SAST-1219LP-85 (bay # 0-3, 6-9) 1x CBL-SAST-1234FLP-85 (bay # 4-5) | ||
| Power Supply | PWS-1K27A-1R | $ 370.00 | 2 | 1200W Redundant Titanium Level Power Supply | ||
| Power Supply | PWS-654-1R | $ 340.50 | 2 | DC 48V Input 650W Power Supply | ||
| Power Supply | PWS-861A-1R | $ 294.50 | 2 | (Default) AC-DC 860W Titanium Level Power Supply | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor | ||
| TPM | AOM-TPM-9670V-S-FIPS | $ 63.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor | ||
| TPM | AOM-TPM-9672V | $ 72.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor | ||
| TPM | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor | ||
| VROC HW Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium RAID 0, 1, 5, 10 | ||
| VROC HW Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard RAID 0, 1, 10 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
