- Supermicro SYS-F620P3-RTBN FatTwin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 3rd Generation
Supermicro SYS-F620P3-RTBN FatTwin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 3rd Generation
• Hyperscale / Hyperconverged
• HPC and Big Data
• Data Center Enterprise Applications
• High Capacity and Ultra Dense Storage
• Virtualization Server (VSAN)
• Telco Data Center
Barebone FatTwin 4U Rackmount SuperServer With Four Nodes, Each Node Supports: Dual Socket P+ (LGA-4189) Intel Xeon Scalable Processors 3rd Generation, Intel C621A chipset, Up to 2TB in 16 DIMM Slots, SATA, NVMe 6x 2.5in NVMe, SATA, SAS drive bays, 1x 1GbE RJ45, 2200W Redundant Power Supply (CSE-F424AS3-R2K20BP + X12DPFR-AN6)
1. Socket P+(LGA 4189) Supports 3rd Generation Intel® Scalable Processors (Dual Socket)
2. Two M.2 Internal Drives
3. NVMe/SATA/SAS options
4. AIOM and M.2 support; 1 AIOM card support (PCIe 4.0)

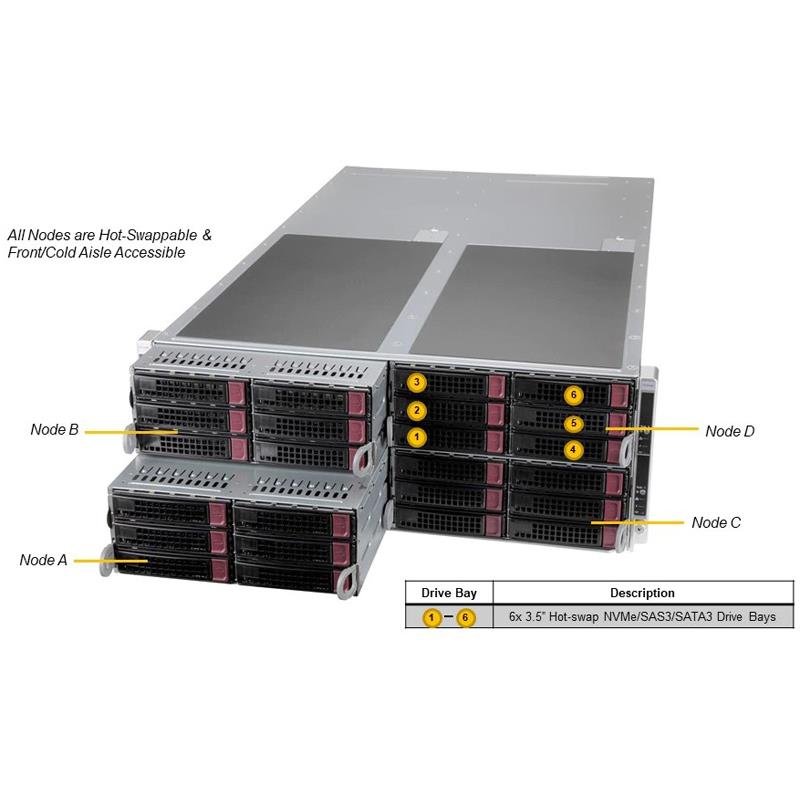

5. Front access node for better serviceability; 8x 3.5” hot-swap HDDs per node Up to 8x SAS/SATA Hot Swap 3.5” Drives, or up to 6x NVMe Hot Swap 2.5” Drives + 2x SAS/SATA Hot Swap 3.5” Drives
Extra Specifications for Supermicro SYS-F620P3-RTBN FatTwin 4U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 3rd Generation
Motherboard | ||
Motherboard | Super X12DPFR-AN6 | |
Processor (per Node) | ||
CPU | 3rd Gen Intel® Xeon® Scalable processors | |
Dual Socket P+ (LGA-4189) | ||
Support CPU TDP 205W | ||
Cores | Up to 36/72T; Up to 54MB Cache | |
System Memory (per Node) | ||
Memory | Memory Capacity: 16 DIMM slots | |
Intel® Optane™ persistent memory 200 series | ||
Up to 2TB: 16x 128 GB DRAM | ||
Up to 4TB: 8x 512 GB PMem and 16x 128 GB DRAM | ||
Up to : 16x 128 GB | ||
Memory Voltage | 1.2 V | |
Error Detection | Yes | |
On-Board Devices (per Node) | ||
Chipset | Intel® C621A | |
Network Connectivity | 1x 1GbE RJ45 (BMC) | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output (per Node) | ||
SATA | 14 SATA (6Gbps) port(s) | |
NVMe | 6 NVMe U.2 options | |
LAN | 1 RJ45 Dedicated IPMI LAN port | |
USB | 2 USB 3.0 port(s) (2 rear) | |
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI FLASH ROM | |
Management | ||
Software | Watch Dog | |
KVM with dedicated LAN | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
Power Configurations | ACPI / APM Power Management | |
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Chassis | ||
Form Factor | 4U | |
Model | CSE-F424AS3-R2K20BP | |
Dimensions and Weight | ||
Height | 6.96" (177mm) | |
Width | 17.63" (448mm) | |
Depth | 29" (737mm) | |
Package | 15" (H) x 28.3" (W) x 42.4" (D) | |
Weight | Net Weight: 150 lbs (68.04 kg) | |
Gross Weight: 200 lbs (90.71 kg) | ||
Available Color | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
UID button | ||
LEDs | Network activity LEDs | |
Power status LED | ||
HDD activity LED | ||
Universal Information (UID) LED | ||
Drive Bays / Storage (per Node) | ||
Hot-swap | 8x 3.5" hot-swap SATA/SAS drive bays (8x 2.5" NVMe hybrid) | |
8x 2.5" 7mm drive bays | ||
System Cooling | ||
Fans | 2x 8cm Fan(s) | |
Power Supply | ||
Dimension (W x H x L) | 76 x 40 x 336 mm | |
AC Input | 50-60Hz | |
+12V | Max: 150A / Min: 0A (200Vac-220Vac) | |
Max: 165A / Min: 0A (220Vac-230Vac) | ||
Max: 100A / Min: 0A (100Vac-127Vac) | ||
Max: 183.3A / Min: 0A (220Vac-240Vac) | ||
Max: 174.17A / Min: 0A (230Vac-240Vac) | ||
5V SB | Max: 1A / Min: 0A | |
Output Type | Gold Finger Connector | |
Certification | Titanium Level | |
Total Output Power | 1200W : 100 - 127 Vac | |
1800W : 200 - 220 Vac | ||
1980W : 220 - 230 Vac | ||
2200W : 220 - 240 Vac (for UL/cUL use only) | ||
2090W : 230 - 240 Vdc (for CCC only) | ||
2090W : 230 - 240 Vac | ||
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Operating Relative Humidity: 5% to 95% (8) | ||
Non-operating Relative Humidity: 90% to 5% (95) | ||
Product SKUs | ||
Product SKUs | SYS-F620P3-RTBN | |
Expansion Slots (per Node) | ||
PCI-Express (PCIe) | 1 PCIe 4.0 x16 LP slot(s) | |
1 AIOM slot(s) | ||
1 HBA slot(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Component | BTR-CV3908-FT1 | $ 264.00 | 0 | SuperCap for 3908 with bracket and 24in extension cable | ||
Component | AOC-SMG4-2M2-F | $ 41.50 | 0 | 2x M.2 NVMe carrier card (NO SATA) | ||
Component | MCP-220-42435-0N | 0 | Changes from 3.5” Rear BPN with 1 x16 PCIe slot to a 2.5” Rear BPN with a RSC that supports 2 x8 PCIe slots | |||
Component | MCP-250-42426-0N | $ 72.00 | 0 | This ADP will supply power to the front drives, therefore lessing power draw from the backplane | ||
Component | CBL-KIT-FRB20-10BAY | $ 46.50 | 0 | Additional x2 internal SATA SSDs per node | ||
Component | MCP-220-00158-0B • | 0 | 3.5” to 2.5” Tool-less Conversion Tray; Red Tab (SAS/SATA only | |||
Component | MCP-220-00140-0B • | 0 | 3.5” to 2.5” Tool-less Conversion Tray; Orange Tab (NVMe only) | |||
Component | CBL-KIT-FRI20-NVME2R | $ 79.50 | 0 | Supports up to 2 NVMe drives in the Rear BPN. For 2U systems. | ||
Component | CBL-KIT-FRI20-NVME2F | $ 81.00 | 0 | Supports up to 2 NVMe drives in the Front BPN. For 2U systems. | ||
Component | CBL-KIT-FRI20-NVME4F | $ 146.50 | 0 | Supports up to 4 NVMe drives in the Front BPN. For 2U systems. | ||
Component | CBL-KIT-FRI20-NVME6F | $ 203.50 | 0 | Supports up to 6 NVMe drives in the Front BPN. For 2U systems. | ||
Component | SCC-KIT-FRB20-3808 | $ 368.50 | 0 | Supports 3808 SW/HBA RAID w/ cables. For 2U systems. | ||
Component | AOC-KIT-FRB20-3908 | 0 | Supports 3908 HW RAID w/ cables. For 2U systems. | |||
Component | SNK-P0078P • | 0 | 2U passive CPU heat sink. For CPU1 when using Dual 205W CPUs. |
