| Motherboard |
| Motherboard | Super H12SSFF-AN6 |
| Processor/Chipset (per Node) |
| CPU | Socket SP3 |
| Supports CPU TDP / cTDP up to 280W * |
| Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) |
| Cores | Up to 64 Cores |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| System Memory (per Node) |
| Memory Capacity | 16 DIMM slots |
| 8-channel memory bus |
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Flexible networking via AIOM (not included, must add 1 per node) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | ASPEED AST2600 BMC |
| Input / Output (per node) |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Flexible networking via AIOM |
| USB | 2 USB 3.0 ports (front) |
| VGA | 1 VGA port (front) |
| Others | 1 TPM 2.0 header |
| System BIOS |
| BIOS Type | 256Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Software | Watch Dog |
| KVM with dedicated LAN |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SSM , SUM |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| 7 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |

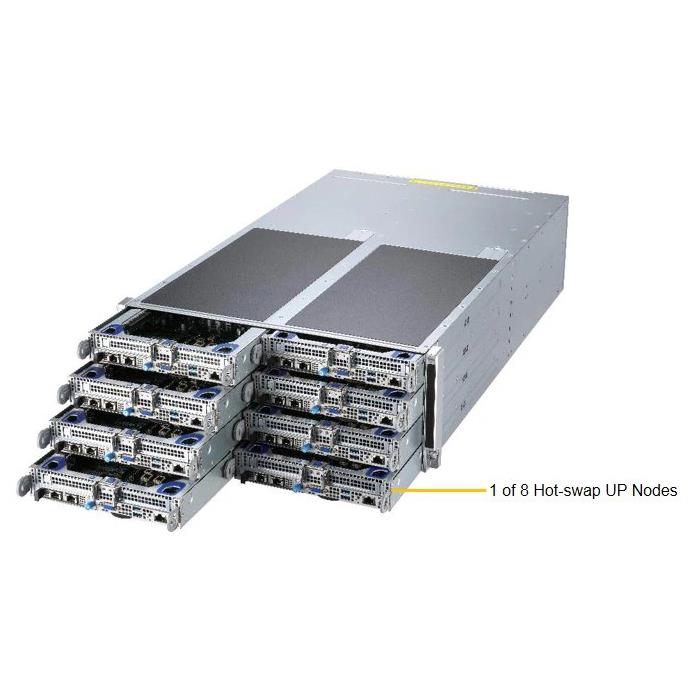

| Chassis |
| Form Factor | 4U Rackmount |
| Model | CSE-F418IF4-R2K20BP |
| Dimensions and Weight |
| Width | 17.63" (448mm) |
| Height | 6.96" (177mm) |
| Depth | 29" (737mm) |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) |
| Weight | Net Weight: 108.5 lbs (49.21 kg) |
| Gross Weight: 204.8 lbs (90.71 kg) |
| Available Colors | Black |
| Front Panel (per node) |
| Buttons | Power On/Off button |
| UID button |
| LEDs | Power status LED |
| Hard drive activity LED |
| Network activity LEDs |
| Information LED (UID, Fan failure, Overheat) |
| Expansion Slots (per node) |
| PCI-Express | 2 PCI-E 4.0 x16 (Low-profile riser) |
| 1 PCI-E 4.0 x16 (AIOM) |
| Drive Bays (per node) |
| Fixed | Up to 4 internal 2.5" drive bays: |
| 4 SATA3 by default, |
| or optional 2 NVMe via additional cable in Optional Parts List |
| M.2 | M.2 Form Factor: 2260, 2280, 22110 |
| M.2 Key: M-Key |
| M.2 Interface: 2 SATA/NVMe, PCI-E 4.0 x4 |
| System Cooling |
| Fans | 8 heavy-duty 8cm 13.5k RPM rear fans per enclosure |
| Power Supply |
| Power Supply | 2000W or above Redundant Power Supplies with PMBus |
| Total Output Power and Input | 1100W with Input 100-120Vac |
| 1400W with input 120-140Vac |
| 1800W with input 200-220Vac |
| 1980W with input 220-230Vac |
| 2000W with input 230-240Vac |
| 2000W with input 200-240Vac (for UL/cUL use only) |
| AC Input Frequency | 50-60Hz |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| +12V | Max: 150A / Min: 0A (200-220Vac) |
| Max: 165A / Min: 0A (220-230Vac) |
| Max: 166.7A / Min: 0A (230-240Vac) |
| Max: 91.7A / Min: 0A (100-120Vac) |
| Max: 116.7A / Min: 0A (120-140Vac) |
| Max: 166.7A / Min: 0A (200-240Vac) (for UL/cUL use only) |
| 5VSB | Max: 1A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Product SKUs |
| Product SKUs | A+ Server F1114S-FT (Black) |
