Supermicro SYS-740P-TR Mainstream Tower/4U Dual Intel Xeon Scalable Processor Up to 4TB DRAM SATA, NVMe Dual 1GbE
• Enterprise Server
• Application and data serving
• Model analysis
• Compute Intensive Applications
• Office environment
Barebone Mainstream Tower/4U SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 4TB in 18 DIMM Slots, SATA3, NVMe, 8x 3.5in SATA drive bays, 2x 1GbE BaseT LAN Ports, 1200W Redundant Power Supply (CSE-745BTS-R1K23BP + X12DPi-N6)
1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
3. 4 PCIe 4.0 x16 Full Height (FH); 2 PCIe 4.0 x8 Full Height (FH)
4. Dual Gigabit LAN with Intel® i350 Ethernet Controller
5. Three 80mm high-performance 9.4K RPM Hot-swappable Middle Cooling Fans;Two 80mm 9.4K RPM Rear Exhaust Fans;1 air shroud
6. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc, Whisper-Quiet
7. 1 rear VGA, 1 Type A port, 1 COM Port (rear) and 6 USB ports (2 front USB 3.0 and 4 rear USB 3.0)
Extra Specifications for Supermicro SYS-740P-TR Mainstream Tower/4U Dual Intel Xeon Scalable Processor Up to 4TB DRAM SATA, NVMe Dual 1GbE
| Motherboard | ||
| Motherboard | Super X12DPi-N6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| Cores | Up to 36C/72T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Intel® Optane™ persistent memory 200 series | ||
| Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4 | ||
| Up to 4TB: PMem and DRAM | ||
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 dedicated IPMI LAN port | |
| USB | 4 USB 3.0 port(s) (4 rear) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Supermicro Out of Band (OOB) License (included in the unit) | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | Tower/4U | |
| Model | CSE-745BTS-R1K23BP | |
| Dimensions and Weight | ||
| Height | 17.8" (452mm) | |
| Width | 7" (178mm) | |
| Depth | 25.5" (647mm) | |
| Package | 24.6" (H) x 14" (W) x 31.3" (D) | |
| Weight | Net Weight: 56 lbs (25.9 kg) | |
| Gross Weight: 73.5 lbs (33.9 kg) | ||
| Available Color | Black | |

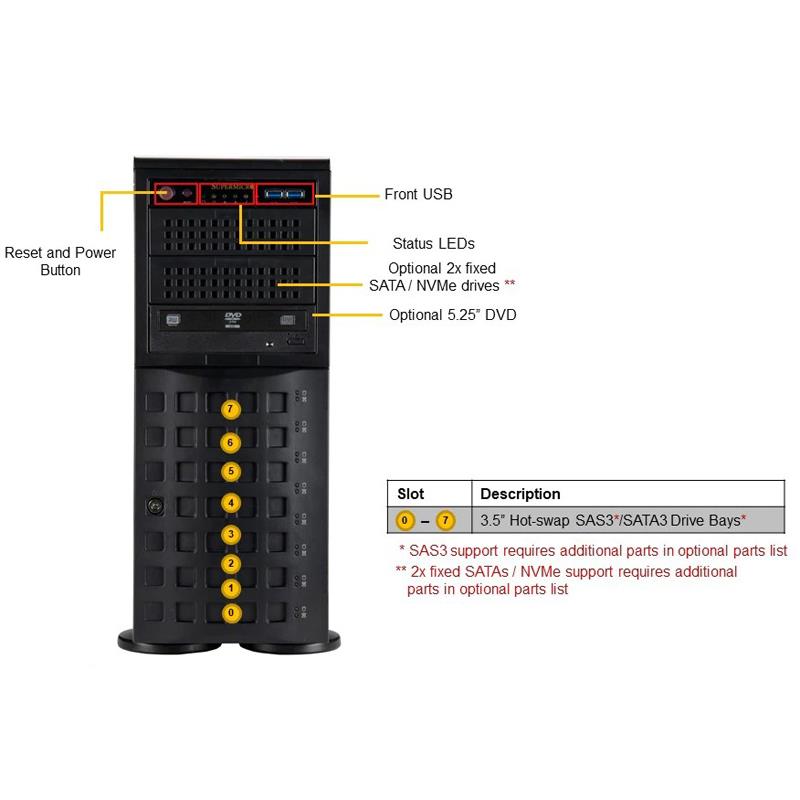

| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 3.5" hot-swap SATA3 drive bays (8x 3.5" hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01) | |
| M.2 | 1 M.2 NVMe | |
| Peripheral Bays | 1x 5.25" DVD drive bays (optional) | |
| System Cooling | ||
| Fans | 2 rear Fan(s) | |
| 3 middle Fan(s) | ||
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1200W: 200-240Vac / 7A-8.5A / 50-60Hz | |
| 1000W: 100-127Vac / 12A-15A / 50-60Hz | ||
| Output Type | Gold Finger (19 pair connector) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-740P-TR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x8 Full-height slot(s) | |
| 4 PCIe 4.0 x16 Full-height slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPi-N6 | 1 | Super X12DPi-N6 Motherboard | |
| Motherboard / Chassis | CSE-745BTS-R1K23BP | 1 | Tower/4U Chassis | |
| Backplane | BPN-SAS3-743A | 1 | 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Parts | MCP-290-74502-0B | 1 | Plastic feet (4 pcs set) for 4U tower chassis, black color | |
| Manual | MNL-2242-QRG | 1 | SYS-740P-TR(T) Quick Reference Guide | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078P | 2 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
| Cable | CBL-SAST-0508-01 OR | 2 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG | |
| Cable | CBL-SAST-0508-02 | 0 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG | |
| Cable | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM | |
| Cable | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE | |
| Cable | CBL-0216L | 3 | 4 TO 4 PIN FAN POWER CABLE, 210MM | |
| Cable | CBL-0471L | 1 | USB3.0 Internal Cable-80cm (19pin Female to 19pin Female) | |
| *Power Supply | PWS-1K23A-SQ | 2 | 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac | |
| *Power Distributor | PDB-PT747-4648 | 1 | POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE | |
| *Fan | FAN-0180L4 | 2 | 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis | |
| *Fan | FAN-0182L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis | |
| *Drive Tray(s) | MCP-220-00193-0N | 8 | SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray | |
| *Air Shroud | MCP-310-49001-0N | 1 | SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| BTR kit for AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR with SYS-740P-TR | use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05 with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR | 1 | SuperCap and mounting bracket used for SAS raid controllers AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR | |||
| BTR kit forAOC-S3908L-H8IR-16DD-P orAOC-S3916L-H16IR-32DD with SYS-740P-TR | use BTR-CVPM05 and 1x BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD | 1 | SuperCap and mounting bracket used for SAS raid controllers AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD | |||
| Optional Gen3 8-ports SAS Raid controller kit for SYS-740P-TR | add 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01 | 1 | Convert 8x hotswap SATA drives to SAS drives | |||
| Optional Gen4 8-ports SAS Raid AOC kit for SYS-740P-TR (backplane is Gen3) | add 1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100 | 1 | Convert 8x hotswap SATA drives to SAS drives | |||
| Optional Mounting Rails | CSE-PT26L-B | $ 54.50 | 1 | 4U Chassis Rail Kits SC743,745, w/ 2pcs Black Chassis Ears | ||
| Optional parts needed to support 2x fixed NVMe drives | 1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) | 1 | 1x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives | |||
| Optional parts needed to support 2x fixed SATA drives | 1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) | 1 | 1x MCP-220-00160-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives |
