- Supermicro SYS-620P-TRT Mainstream 2U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM SATA, NVMe Dual 10GbE
Supermicro SYS-620P-TRT Mainstream 2U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM SATA, NVMe Dual 10GbE
• Virtualization
• Enterprise Server
• Data Center Optimized
• Application and data serving
• Model analysis
• Compute Intensive Applications
Barebone Mainstream 2U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 4TB in 18 DIMM Slots, SATA, NVMe, 8x 3.5in SATA drive bays, 2x 10GbE Ports, 1200W Redundant Power Supply (CSE-825BTS-R1K23LPP1 + X12DPi-NT6)
1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
2. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
3. 4 PCIe 4.0 x16 Low Profile (LP); 2 PCIe 4.0 x8 Low Profile (LP)
4. Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
5. 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud
6. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
7. 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)
Extra Specifications for Supermicro SYS-620P-TRT Mainstream 2U Barebone Dual Intel Xeon Scalable Processor Up to 4TB DRAM SATA, NVMe Dual 10GbE
| Motherboard | ||
| Motherboard | Super X12DPi-NT6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| Cores | Up to 36C/72T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Intel® Optane™ persistent memory 200 series | ||
| Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4 | ||
| Up to 4TB: PMem and DRAM | ||
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 dedicated IPMI LAN port | |
| USB | 4 USB 3.0 port(s) (4 rear) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 front; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Supermicro Out of Band (OOB) License (included in the unit) | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-825BTS-R1K23LPP1 | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.5" (647mm) | |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) | |
| Weight | Gross Weight: 69 lbs (31.2 kg) | |
| Net Weight: 36.38 lbs (16.5 kg) | ||
| Available Color | Black | |

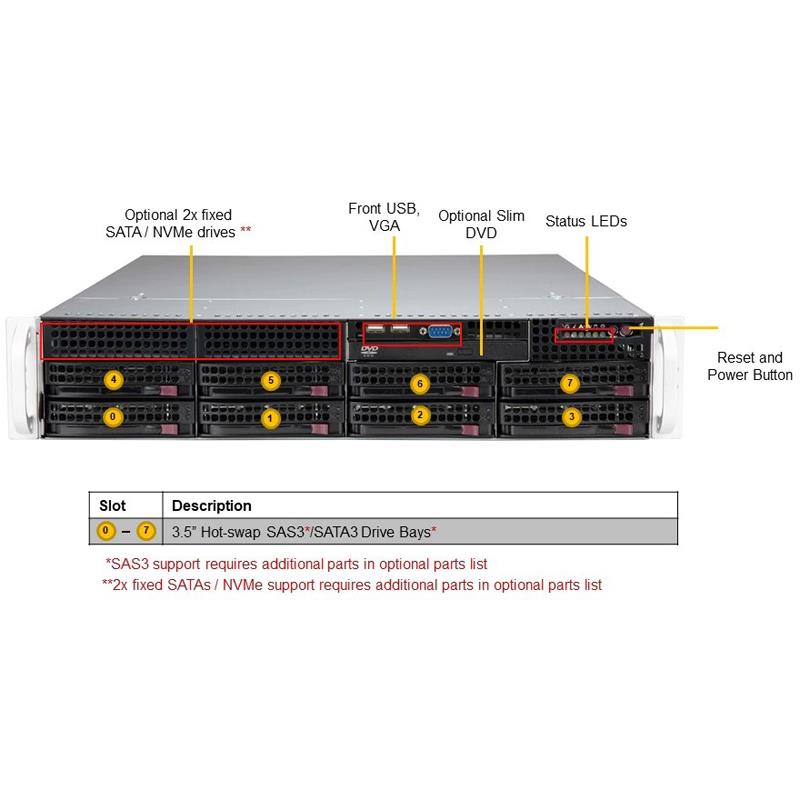

| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 3.5" hot-swap SATA3 drive bays | |
| M.2 | 1 M.2 NVMe | |
| Peripheral Bays | 1x slim DVD drive bays (optional) | |
| System Cooling | ||
| Fans | 3 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz | |
| 1200W: 200-240Vac / 8.5A-7A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-620P-TRT | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 4 PCIe 4.0 x16 LP slot(s) | |
| 2 PCIe 4.0 x8 LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DPi-NT6 | 1 | Super X12DPi-NT6 Motherboard | |
| Motherboard / Chassis | CSE-825BTS-R1K23LPP1 | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable | CBL-0343L-01 | 2 | 30AWG IPASS/4SATA 76/66/54/45CM W/SB | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Drive Tray(s) | MCP-220-00007-01 | 1 | Black USB/COM port tray for SC825, 836 | |
| Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | |
| Drive Tray(s) | MCP-220-00075-0B | 8 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| Drive Tray(s) | MCP-220-82502-0B | 2 | Black fixed 3.5\" HDD tray or FDD dummy tray | |
| Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5 | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Manual | MNL-2241-QRG | 1 | SYS-620P-TR(T) Quick Reference Guide | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
| Heatsink / Retention | SNK-P0078PC | 1 | 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms | |
| *Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT825-S8824 | 1 | SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL | |
| *Fan | FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825 | |
| *Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
