Supermicro AS-2014CS-TR A+ 2U Barebone Single AMD EPYC 7002/7003 Series Processor
• Financial Services
• Cloud Computing
• Network Appliance
• Private Cloud
• Content Delivery Network (CDN)
• Deep Learning Inferencing
Barebone A+ 2U Rackmount SuperServer Single AMD EPYC 7002/7003 Series, System on Chip, Up to 4TB in 16 DIMM Slots, SATA3, NVMe, 12x 3.5in NVMe,SATA,SAS drive bays, network via AIOM, 920W Redundant Power Supply (CSE-LA26TS-R920AWP + H12SSW-AN6) - AS -2014CS-TR
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (For optimal performance, 8 DIMMs are recommended). Minimum requirement is 1 CPU, 4 DIMMs, 1 HDD/NVMe and 1 AIOM/AOC NIC card.
1. Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. Expansion slots: 4 PCI-E 4.0 x16 (FH, 10.5" L) slots; 2 AIOM slots for flexible networking (One x8 AIOM slot and one x16 AIOM slot)
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management

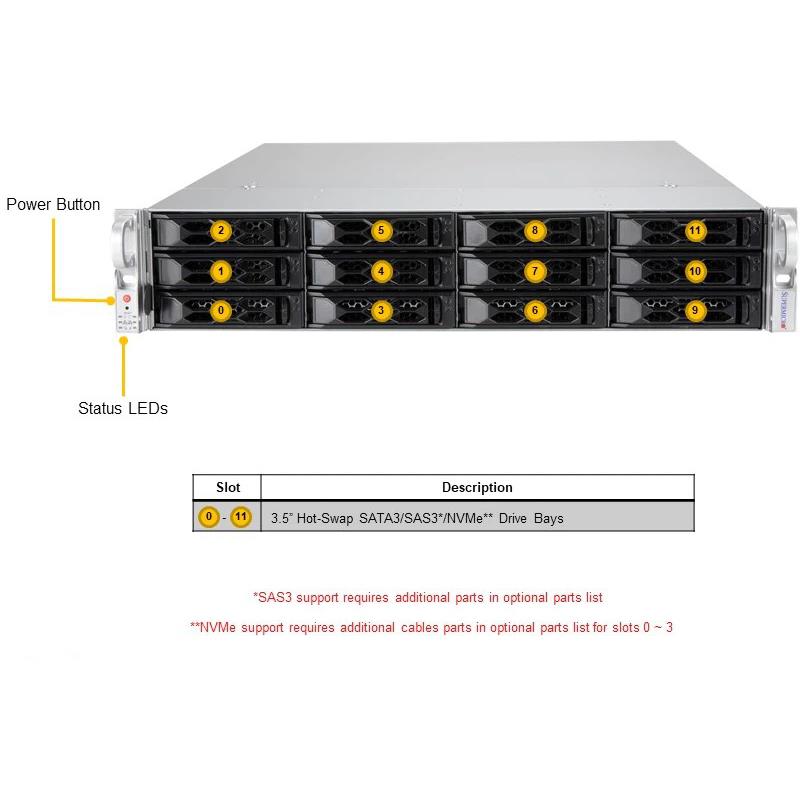

5. 12 Hot-swap 3.5" SATA3/SAS3/NVMe drive bays: 12 SATA3 by default or 8 SATA3 + 4NVMe via optional cables or 12 SAS3 via optional SAS kit; Optional 2x 2.5" peripheral drive bays via rear drive bay kits M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2242, 2260, 2280, 22110 M.2 Key : M-Key
6. 2 USB 3.0 ports (rear), 1 VGA, 1 COM, ASPEED AST2600 BMC graphics
7. Tool-less Drive Trays and Tool-less Brackets
8. 920W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2014CS-TR A+ 2U Barebone Single AMD EPYC 7002/7003 Series Processor
| Motherboard | ||
| Motherboard | Super H12SSW-AN6 | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W | ||
| Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Flexible networking provided via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2600 BMC | |
| Input / Output | ||
| SATA | 16 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Networking provided via AIOM | ||
| USB | 2 USB 3.0 ports (rear) | |
| COM | 1 COM Port (rear) | |
| Video | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SUM | ||
| Super Doctor 5 | ||
| IPMI 2.0 , KVM with dedicated LAN | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 3 Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-LA26TS-R920AWP | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.5" (648mm) | |
| Package | 26.4" (W) 11.4" (H) 34.3" (D) | |
| Gross Weight | 59 lbs (26.76 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot) | |
| 4 PCI-E 4.0 x16 (FH, 10.5"L) slots | ||
| Drive Bays | ||
| Hot-swap | 12 SATA3 by default | |
| 12 Hot-swap 3.5" drive bays: 12 SATA3 by default or 8 SATA3 + 4NVMe via optional cables or 12 SAS3 via via optional SAS kit | ||
| or 8 SATA3 + 4NVMe via optional cables | ||
| or 12 SAS3 via via optional SAS kit | ||
| Optional 2x 2.5" peripheral drive support via additional rear drive bays kits | ||
| Backplane | ||
| Backplane | SAS/SATA/NVMe HDD Backplane | |
| System Cooling | ||
| Fans | 3x 80x80x38mm middle cooling fans | |
| Power Supply | ||
| Power Supply | 1U 920W redundant power supply | |
| Total Output Power and Input | 920W with Input 100 - 127Vac | |
| 920W with Input 200 - 240Vac | ||
| 920W with Input 200 - 240Vdc | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input Frequency | 50-60Hz | |
| +12V | Max: 75A / Min: 0A (100Vac-127Vac) | |
| Max: 75A / Min: 0A (200Vac-240Vac) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Backplanes (connector) | |
| Certification | ||
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2014CS-TR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Optional Power Supply | PWS-1K23A-1R • | 2 | 1200W 100-240Vac, and DC240 input | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA; | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1260-100 | 0 | MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1260-100 | 0 | MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR/16DD | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1260-100 | 0 | MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3616L-L16IT | $ 458.50 | 0 | 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP; | ||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1285-100 | 0 | Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1260-100 | 0 | MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3808L-L8IT | $ 397.50 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA; | ||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1276F-100 | 0 | Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM | |||
| Storage Control Card and Cable(s) | (support up to 8 SAS3 HDD) | 0 | - | |||
| Storage Control Card and Cable(s) | AOC-S3816L-L16IT | $ 497.50 | 0 | Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD; HBA; | ||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1276F-100 | 0 | Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM; | |||
| Storage Control Card and Cable(s) | 1x CBL-SAST-1265F-100 | 0 | Slimline x8 (STR) to Slimline x4 (STR),64CM | |||
| Storage Control Card and Cable(s) | (support up to 12 SAS3 HDD) | 0 | - | |||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 1 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Cable Management Arm | MCP-120-82601-0N | $ 31.00 | 1 | Cable arm adapter for SCLA26-AW | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | $ 275.00 | 0 | CacheVault for Broadcom 3108 | ||
| Optional Kit for NVMe Solution | CBL-SAST-1236LP-85 | $ 38.00 | 2 | Slimline x8 (STR) to 2x SlimlineLP x4 (STR),FFC,40/40CM | ||
| Optional Kit for NVMe Solution | (Support 4 NVMe drives slot per cables for HDD slot 0~3) | 0 | - | |||
| M.2 by AOC | AOC-SLG3-2H8M2 | $ 188.00 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
| Rear Window SATA Drive Kit | MCP-220-82616-0N | $ 112.00 | 1 | Rear Window Module for 2x 2.5" SATA/SAS Drives | ||
| Rear Window SATA Drive Kit | CBL-SAST-1295LP-100 | $ 36.00 | 1 | SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
