Supermicro SYS-120H-TNR Hyper 1U Barebone Dual Intel Xeon Scalable Processor Up to 8TB DRAM SATA3, NVMe Dual 10GbE
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone Hyper 1U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 8TB in 32 DIMM Slots, SATA3, NVMe 8x 2.5in NVMe, SATA, SAS drive bays, 2x 10GbE BaseT LAN Ports, 1200W Redundant Power Supply (CSE-HS119-R1K24P + X12DHM-6)
This product is no longer available.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

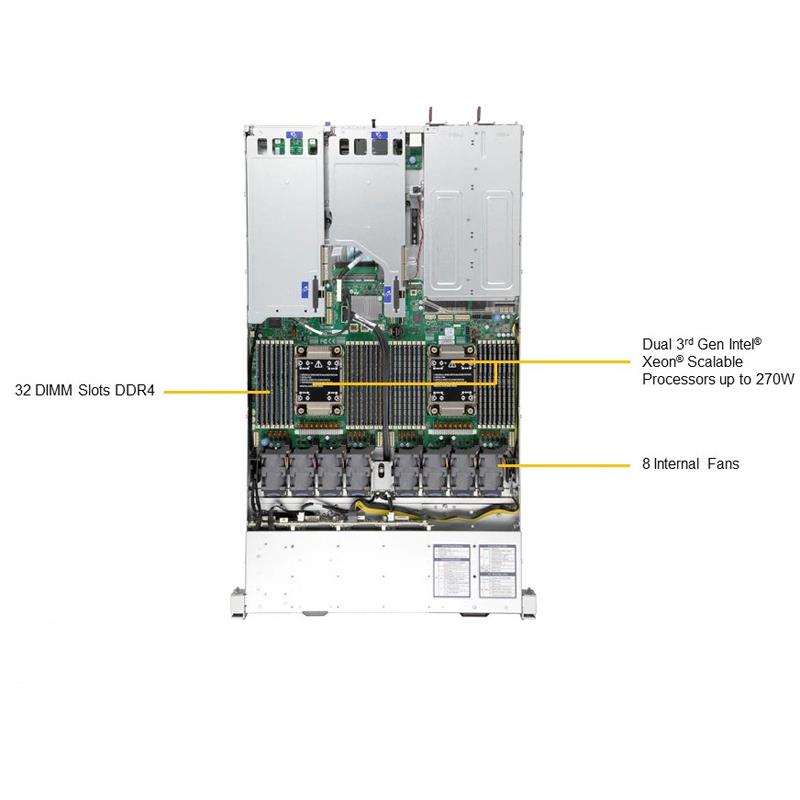

2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

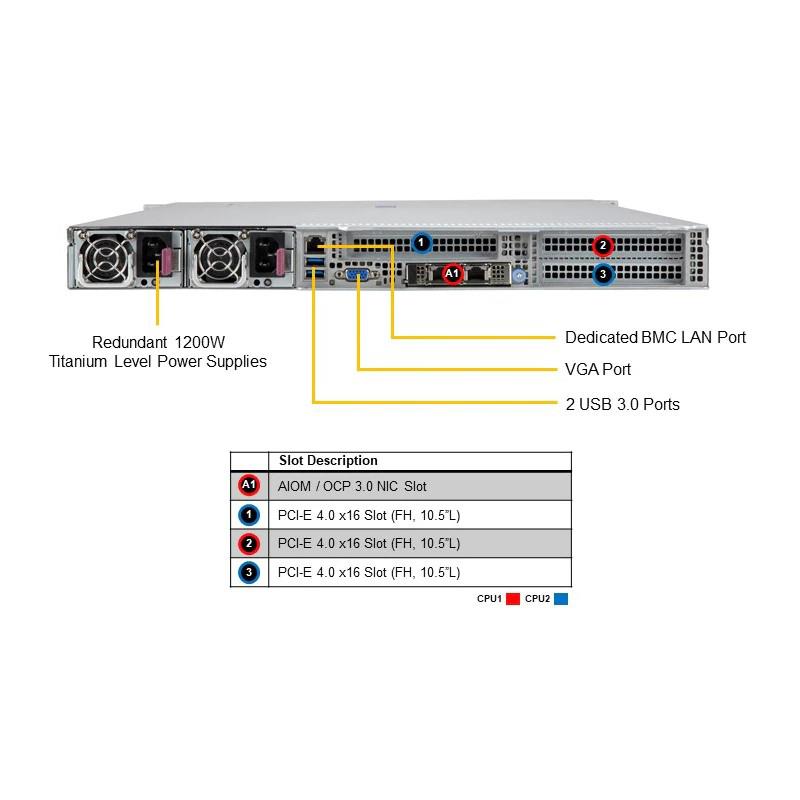

3. 3 PCIe 4.0 x16 slots with support for GPU/Accelerator cards
4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

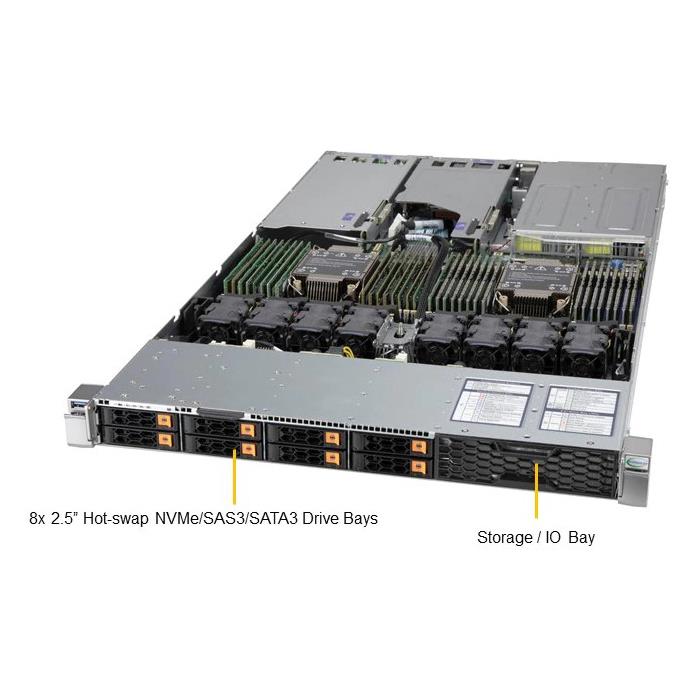

5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
6. 8 heavy duty hot-swap fans with optimal fan speed control
Extra Specifications for Supermicro SYS-120H-TNR Hyper 1U Barebone Dual Intel Xeon Scalable Processor Up to 8TB DRAM SATA3, NVMe Dual 10GbE
| Motherboard | ||

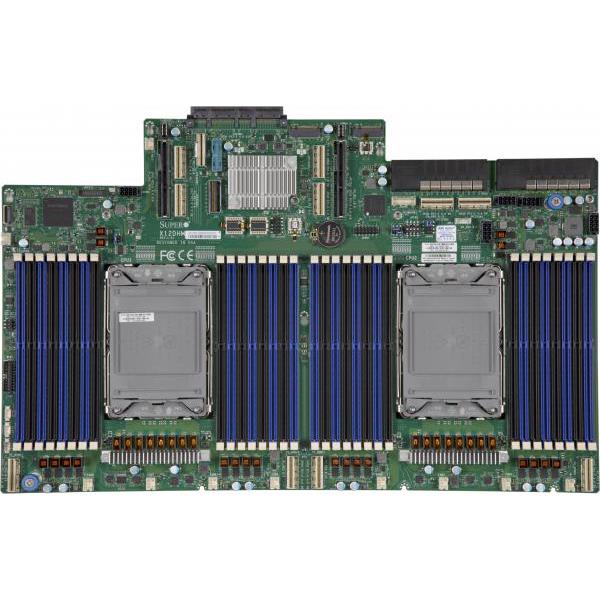

| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 270W * | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 32 DIMM slots | ||
| Memory Type: 3200MHz ECC DDR4 | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 3 USB 3.0 port(s) (1 front; 2 rear) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-HS119-R1K24P | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29.4" (747mm) | |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) | |
| Weight | Net Weight: 34 lbs (15.4 kg) | |
| Gross Weight: 49 lbs (22.2 kg) | ||
| Available Color | N/A | |

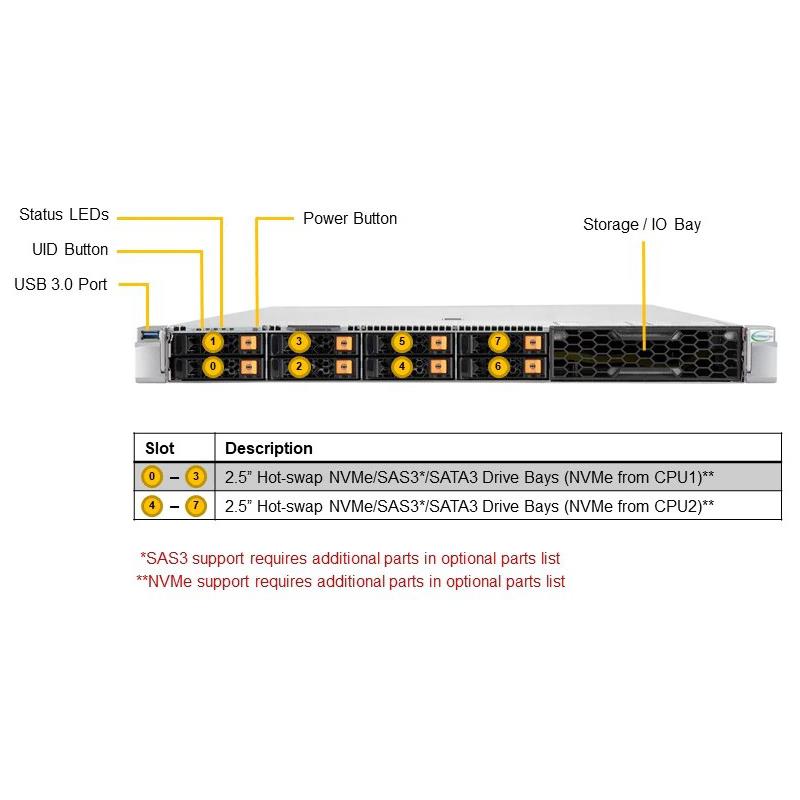

| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| Drive Bays / Storage | ||
| Hot-swap | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid) (Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 8x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz | |
| 1200W: 200-240Vac / 7.5A-6A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-120H-TNR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 FH, 6.6"L slot(s) | |
| 2 PCIe 4.0 x16 FH, 10.5"L slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable Management Arm + Rail Set | MCP-290-00168-0N + MCP-290-11901-0N | 0 | 7.5" cable management arm + 41" long ball-bearing rail set | |||
| CacheVault for Broadcom 3916/3908 | BTR-CVPM05 + MCP-120-00092-0N | 1 | CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) + slot 2-3 riser cage mounting bracket | |||
| Drive Bay Configuration Options | Refer to User's Manual | 0 | Drive bay configuration options for NVMe, SAS, or SATA support | |||
| Front Bezel | MCP-210-11909-0B | $ 46.00 | 1 | Optional front bezel for 1U Hyper | ||
| Global Services & Support | OS4HR3/2/1 | 0 | Gold Level, 3/2/1-year onsite 24x7x4 SLA | |||
| Global Services & Support | OSNBD3/2/1 | 0 | Silver Level, 3/2/1-year onsite NBD SLA | |||
| Global Services & Support | SMSAD3/2/1 | 0 | Bronze Level, 3/2/1-year 3BD SLA | |||
| Intel® VROC RAID Key Options | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Intel® VROC RAID Key Options | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Power Supply | PWS-1K24A-1R (included in the system) | 0 | 1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
| Power Supply | PWS-1K63A-1R | $ 438.50 | 0 | 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | ||
| Power Supply | PWS-2K63A-1R | $ 620.50 | 0 | 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet | ||
| Power Supply | MCP-250-00025-0N | $ 22.50 | 0 | Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis | ||
| Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
| Rail Set | MCP-290-11902-0N | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-11903-0N (included in the system ) | 1 | 30.5" ball-bearing rail set for Hyper servers | |||
| Rail Set | MCP-290-21103-0N | $ 110.00 | 1 | 21.65" ball-bearing rail set for Hyper servers | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Trusted Platform Module Options | AOM-TPM-9670V-O | 1 | SPI capable vertical TPM 2.0 | |||
| Trusted Platform Module Options | AOM-TPM-9671V-O | 1 | SPI capable vertical TPM 1.2 | |||
| Trusted Platform Module Options | AOM-TPM-9670V-S-FIPS-O | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS |
