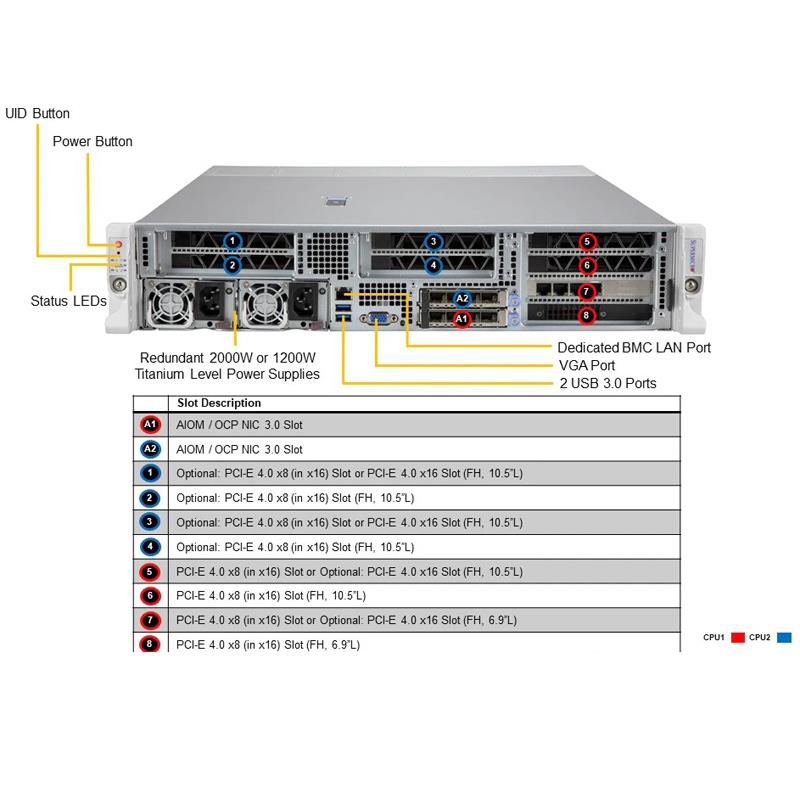

Supermicro SYS-220HE-FTNR Hyper 2U Barebone Dual Intel Xeon Scalable Processor UP to 8TB DRAM SATA3, NVMe Dual 1GbE
• 5G Core and Edge
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 8TB in 32 DIMM Slots, SATA3, NVMe 6x 2.5in drive bays, 2x 1GbE BaseT LAN Ports, 1200W Redundant Power Supply (CSE-HE211-R000NFP + X12DHM-6)
This product is sold only as a completely assembled system.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3. 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default); 1 PCIe 4.0 x16 expansion slots (Optional)
4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6. 6 heavy duty hot-swap fans with optimal fan speed control Front I/O, tool-less design
7. Redundant 2000W redundant AC power supplies
Extra Specifications for Supermicro SYS-220HE-FTNR Hyper 2U Barebone Dual Intel Xeon Scalable Processor UP to 8TB DRAM SATA3, NVMe Dual 1GbE
| Motherboard | ||
| Motherboard | Super X12DHM-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| System Memory | ||
| Memory | Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | |
| Memory Capacity: 32 DIMM slots | ||
| Up to 8TB: 32x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required) | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
| 4x 1GbE SFP or 2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
| 2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
| 4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
| 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
| 2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
| 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
| 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
| 4x 1GbE BaseT with Intel® i350-AM4 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 2 USB 2.0 port(s) (2 front) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HE211-R000NFP | |
| Note | Standard sliding rail kit: Post to Post 19.1" ~ 26.4“ | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 22.6" (574mm) | |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) | |
| Weight | Net Weight: 34.4 lbs (15.6 kg) | |
| Gross Weight: 47.4 lbs (21.5 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | LAN1 activity | |
| System information | ||
| LAN2 activity | ||
| Expansion Slots | ||
| Note | If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled. | |
| PCI-Express (PCIe) | 3 PCIe 4.0 x16 or x8 FHFL slot(s) | |
| 1 PCIe 4.0 x8 FHFL slot(s) | ||
| 2 PCIe 4.0 x8FHFL slot(s) | ||
| 1 PCIe 4.0 x8 or (Optional) x16 FHHL slot(s) | ||
| 1 PCIe 4.0 x8 FHHL or slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid) | |
| M.2 | M-Key, 2280/22110 | |
| 2 M.2 NVMe OR 2 M.2 SATA3 | ||
| System Cooling | ||
| Fans | 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz | ||
| +12V | Max: 83A (100Vac-127Vac) | |
| Max: 150A (200Vac-220Vac) | ||
| Max: 165A (220Vac-230Vac) | ||
| Max: 166A (220Vac-240Vac) | ||
| Max: 166A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-220HE-FTNR | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 6 Drive Bay Configuration (6 SAS/SATA) | AOC-S3808L-L8IT-O • + CBL-SAST-1273LP-100 | 1 | 6 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 0-5 | |||
| 6 Drive Bay Configuration (6 SAS/SATA) | AOC-S3908L-H8IR-16DD-O + CBL-SAST-1273LP-100 | 1 | 6 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-5 | |||
| Cable Management Arm for Hyper-E | MCP-290-00168-0N | $ 114.50 | 1 | Cable Management Arm for Hyper-E | ||
| CacheVault SuperCap | BTR-CVPM05 | $ 207.50 | 1 | CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) | ||
| CacheVault SuperCap to PCIe Card Bracket | BKT-BBU-BRACKET-05 | $ 84.00 | 1 | CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05) | ||
| Optional Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16 | RSC-H2-668G4S | 1 | Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16 | |||
| Optional RSC and GPU AUX power cable for A40, A100 GPU | CBL-PWEX-1172-2654 • | 1,2,3 | RSC and GPU AUX power cable for A40, A100 GPU | |||
| Optional RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200 | CBL-PWEX-1171-2654 | $ 29.00 | 1,2,3 | RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200 | ||
| Optional sliding rail kit | MCP-290-11902-0N | 1 | Optional sliding rail kit for Post to Post: 24" ~ 35.3" | |||
| Optional sliding rail kit | MCP-290-11901-0N | $ 115.00 | 1 | Optional sliding rail kit for Post to Post: 26.5" ~ 41.2" | ||
| Optional sliding rail kit | MCP-290-11903-0N • | 1 | 30.5" ball-bearing rail set, without auto latch for Hyper 1U & 2U Project | |||
| Slim AIOM module | AOC-A25G-i2SM | 1 | AIOM 2-Port 25GbE SFP28, based Intel E810-XXVAM2 w/ 0.5U height bracket,RoHS | |||
| Slim AIOM module | AOC-A100G-b2CM | 1 | AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS | |||
| Slim AIOM module | AOC-AG-i4SM | 1 | AIOM 4-port GbE SFP, Intel i350-AM4 with 0.5U bracket,RoHS | |||
| Slim AIOM module | AOC-A25G-m2SM | 1 | AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS | |||
| Slim AIOM module | AOC-ATGC-i2TM | 1 | AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 0.5U BKT,RoHS | |||
| Slim AIOM module | AOC-A100G-m2CM | 1 | AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS | |||
| Slim AIOM module | AOC-AH25G-m2S2TM | 1 | AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2 with 0.5U Bracket, RoHS | |||
| Slim AIOM module | AOC-A25G-b2SM | 1 | AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS | |||
| Slim AIOM module | AOC-ATG-i4SM | 1 | AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS | |||
| Slim AIOM module | AOC-ATG-i2SM | 1 | AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS | |||
| Slim AIOM module | AOC-ATG-i2TM | 1 | AIOM 2-port 10GBase-T, Intel X550,RoHS | |||
| Slim AIOM module | AOC-AG-i4M | 1 | AIOM Quad-Port 1GbE RJ45, based on i350-AM4 with 0.5U Bracket, RoHS | |||
| Slim AIOM module | AOC-AG-i2M | 1 | AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS | |||
| TPM security module | AOM-TPM-9671V-O | 1 | SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor | |||
| TPM security module | AOM-TPM-9670V-O | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
