- Supermicro SYS-210P-FRDN6T IoT 2U Barebone Single Intel Xeon Scalable Processor UP to 2TB DRAM NVMe, SATA3 Dual 1/10GbE
Supermicro SYS-210P-FRDN6T IoT 2U Barebone Single Intel Xeon Scalable Processor UP to 2TB DRAM NVMe, SATA3 Dual 1/10GbE
• 5G Core and Edge
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 1U Rackmount SuperServer Single Intel Xeon Scalable, Intel C621A chipset, UP to 2TB in 8 DIMM Slots, NVMe, SATA3, 2x 2.5in SATA drive bays, 2x 1/10GbE Ports, 600W Redundant Power Supply (CSE-211M + X12SPM-LN6TF)
This product is no longer available.
1. Design with compliance to NEBS-Level 3
2. Single Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
3. 8 DIMM slots; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
4. Up to 2 PCIe 4.0 FHHL & 2 HHHL expansion slots for Accelerator Add-On-Cards
5. Onboard 2x 10GbE ports & 4x 1GbE ports
6. 2x 2.5" drive bays for SATA drives
7. Redundant 600W DC -48V Power Supplies

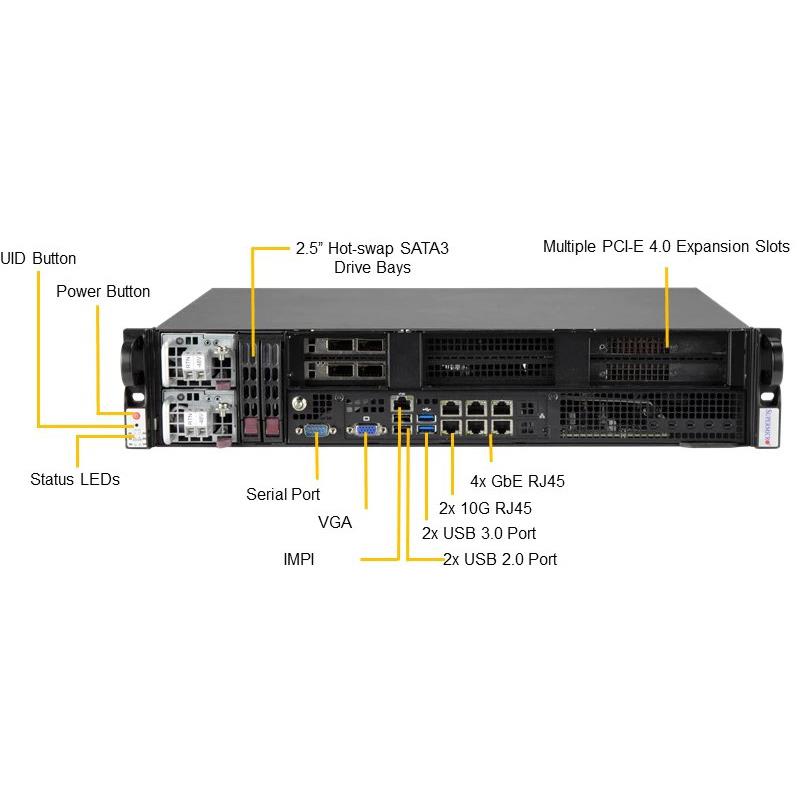

8. Ultra short depth, 2U Front I/O Edge Server
Extra Specifications for Supermicro SYS-210P-FRDN6T IoT 2U Barebone Single Intel Xeon Scalable Processor UP to 2TB DRAM NVMe, SATA3 Dual 1/10GbE
| Motherboard | ||
| Motherboard | Super X12SPM-LN6TF | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Single Socket P+ (LGA-4189) | ||
| Support CPU TDP 85-270W | ||
| Please contact Supermicro Technical Support for supporting conditions of high power (TDP >205W) processors. | ||
| Cores | Up to 36C/72T; Up to 60MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 1/10GbE port(s); 4x 1GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| USB | 2 USB 3.0 port(s) (2 front) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | ACPI Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support, PEPI | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-211M | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9mm) | |
| Width | 17.2" (436.88mm) | |
| Depth | 11.8" (298.8mm) | |
| Package | 7.4" (H) x 19.3" (W) x 23.3" (D) | |
| Weight | Net Weight: 17 lbs (7.7 kg) | |
| Gross Weight: 22 lbs (10 kg) | ||
| Available Color | Silver/Black | |
| Front Panel | ||
| Buttons | UID button | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| LAN1 activity | ||
| System information | ||
| LAN2 activity | ||
| Drive Bays / Storage | ||
| Hot-swap | 2x 2.5" hot-swap SATA drive bays | |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
| M-Key, 2280/22110 | ||
| System Cooling | ||
| Fans | 4 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Total Output Power | 600W : (-44) - (-65) Vdc | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| +12V | Max: 50A | |
| 5V SB | Max: 3A / Min: 0A | |
| Certification | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-210P-FRDN6T | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 or x8 slot slot(s) | |
| 1 PCIe 4.0 x16 x8 slot slot(s) | ||
| 1 1 PCIe 4.0 x8 FHHL slot(s) | ||
| 2 1 PCIe 4.0 x16 FHHL slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SPM-LN6TF | 1 | Super X12SPM-LN6TF Motherboard | |
| Motherboard / Chassis | CSE-211M | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-Port 12Gbps Backplane for 2x2.5 | |
| Cable | CBL-0010L | 1 | DB9/M TO 2X5F/P2.54,INT TO EXT,W/BKT,FLAT,26.5CM,28AWG,RoHS | |
| Cable | CBL-0206L | 2 | 7pin SATA (STR to STR), 48cm, PBF | |
| Cable | CBL-CDAT-0662 | 1 | 8 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1 | |
| Cable | CBL-PWCD-0974 | 2 | 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS | |
| Cable | CBL-PWEX-1132-20 | 1 | MicroHi 2x2F to 2x2M MicroFit, PH3.0, 20cm,7A/p,18#,RoHS | |
| Cable | CBL-SAST-1206LP-85 | 1 | SlimSASLP x8 (RA) to SlimSAS x8 (STR),26CM,85 OHM,RoH | |
| Cable | CBL-SAST-1207LP-85 | 1 | SlimSASLP x8 (STR,RSC) to SlimSAS x8 (STR),26CM,85 OHM | |
| Cable | CBL-SAST-1270A-85 | 1 | 2x PCIe x16 on riser PCBA to 2x x16 edge cards,90CM,RoH | |
| Cable | CBL-CDAT-1058 | 1 | NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS | |
| Power Supply | PWS-601S-1R | 2 | 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4 | |
| Riser Card | RSC-H2-68G4 | 1 | 2U LHS Hyper riser card with one PCIe 4.0 x16 and one PCIe | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0078P | 1 | 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms | |
| Power Distributor | PDB-PT211M-8824 OR | 1 | (EOL)2U support redundancy powers up to 800W for SC211.,RoHS | |
| Power Distributor | PDB-PT211M-3424 | 0 | 2U support redundancy powers up to 800W for SC211M with 2 Mi | |
| *Fan | FAN-0220L4 | 4 | 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve | |
| *Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 | |
| *Drive Tray(s) | MCP-220-00147-0B | 2 | Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design) | |
| *Rail Set | MCP-290-21106-0N | 1 | 1U height sliding rail for SC211M chassis |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U heat sink | SNK-P0077V • | 0 | Optional 1U heatsink if CPU < 165W | |||
| 2U riser card | RSC-S2R-68G4 | 0 | Optional 2U Riser card for PCIe slot 3 (PCIe x8 FHHL) if CPU < 165W | |||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 0 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | ||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 0 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
