Supermicro SYS-610C-TR CloudDC 1U Barebone for Dual Intel Xeon Scalable Processor
• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes
Barebone 1U Rackmount SuperServer Dual Intel Xeon Scalable, Intel C621A chipset, Up to 4TB in 16 DIMM Slots, SATA3, NVMe, 4x 3.5/2.5in SAS, SATA drive bays, Network via Slim-AIOM, 860W Redundant Power Supply (CSE-LA15TQC-R860AW + X12DDW-A6)
This product is sold only as a completely assembled system.
1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
2. Intel® C621A Chipset
3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
4. 2 PCIe 4.0 x16 FHHL; 2 PCIe 3.0 x2 NVMe M.2
5. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

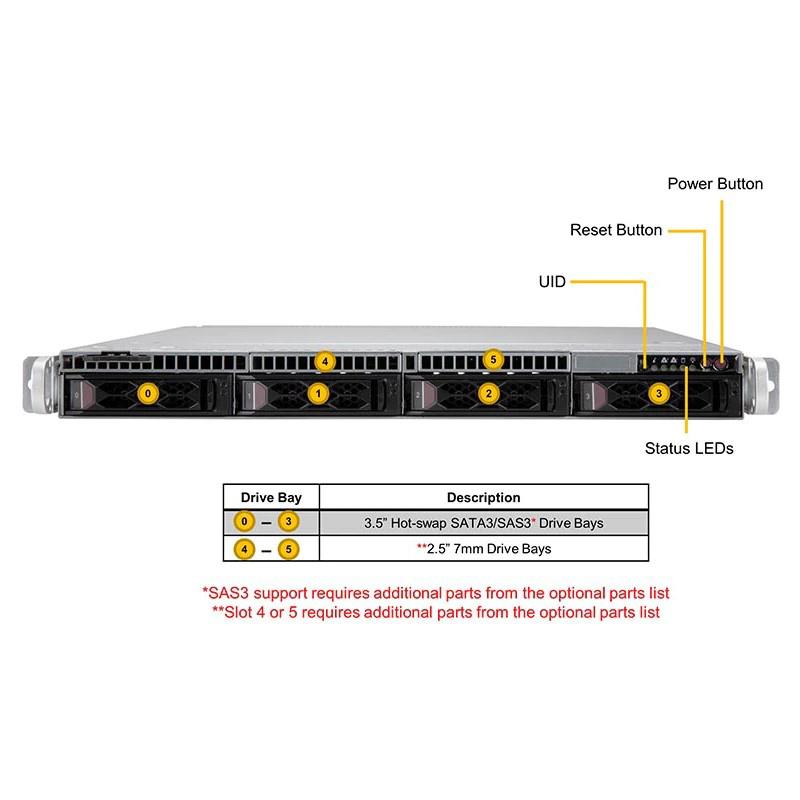

6. 4x 3.5/2.5" hot-swap SATA/SAS drive bays
7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
Extra Specifications for Supermicro SYS-610C-TR CloudDC 1U Barebone for Dual Intel Xeon Scalable Processor
| Motherboard | ||

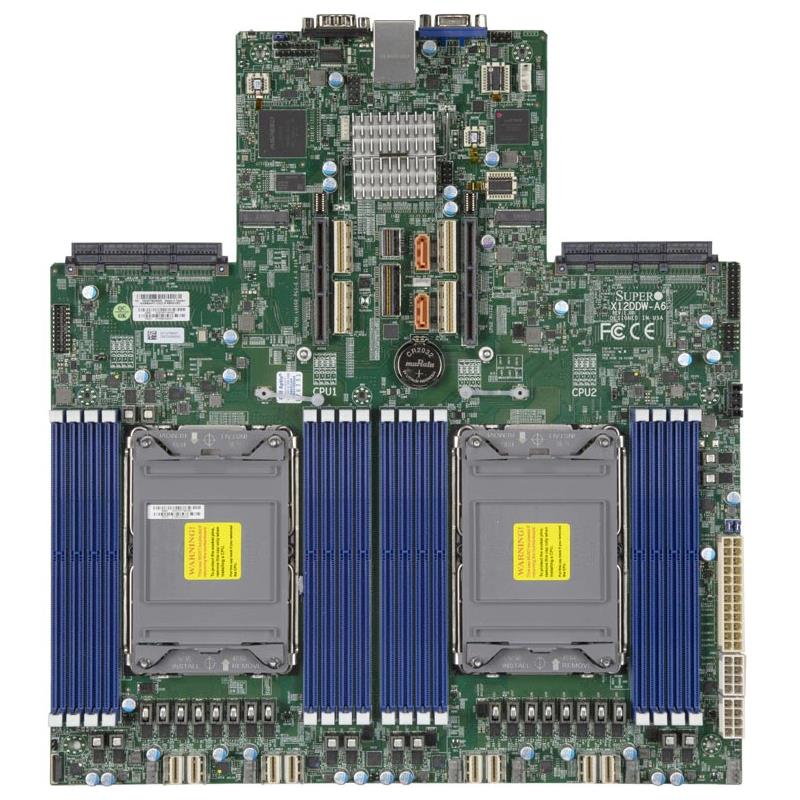

| Motherboard | Super X12DDW-A6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W * | ||
| Dual Socket P4 (LGA-4189) | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| Note | *CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations. | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Intel® Optane™ persistent memory 200 series | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem | ||
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;PMEM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 1 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI FLASH ROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| SCC | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. | |
| 8 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-LA15TQC-R860AW | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 7.7" (H) x 23.7" (W) x 34.1" (D) | |
| Weight | Gross Weight: 28 lbs (12.7 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| Reset button | ||
| Unit Identifier (UID) | ||
| LEDs | Power status | |
| Network activity | ||
| Drive activity | ||
| Universal Information | ||
| Drive Bays / Storage | ||
| Hot-swap | 4x 3.5" hot-swap SATA/SAS drive bays (Default 3.5" drive trays can also support 2.5" drives.) | |
| M.2 | M-Key, 2280 | |
| 2x PCIe 3.0 x2 | ||
| Peripheral Bays | 2x 2.5" 7mm fixed drive bays (optional) | |
| System Cooling | ||
| Fans | 6x 4cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 54.5 x 40.25 x 322 mm | |
| Output Type | Backplanes (gold finger) | |
| Certification | Platinum Level | |
| AC Input | 800W: 100-127Vac / 9A-7.5A / 50-60Hz | |
| 860W: 200-240Vac / 6A-4.5A / 50-60Hz | ||
| +12V | Max: 66.6A / Min: 0A (100Vac-127Vac) | |
| Max: 71.6A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-610C-TR | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 4.0 x16 FHHL slot(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 CacheVault | BTR-CV3108-1U1 | $ 324.50 | 1 | CacheVault for Broadcom 3108 with mount for 1U 40 cm fan slot. (Note: It will replace one fan and lower overall system cooling) | ||
| 3108 CacheVault | BTR-TFM8G-LSICVM02 | $ 279.00 | 1 | CacheVault for Broadcom 3108 (requires a mount) | ||
| 3108 RAID Card | AOC-S3108L-H8IR-16DD | $ 485.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3108 RAID Card | CBL-SAST-0699 | $ 29.00 | 1 | Mini SAS HD-4 SATA 12G,75/75/90/90CM 75CM | ||
| 3808 HBA Card | CBL-SAST-1275A-100 | $ 34.00 | 1 | Slimline x8 (STR) to 4x SATA 75/75/90/90CM 75CM | ||
| 3808 HBA Card | AOC-S3808L-L8IT | $ 397.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA | ||
| 3908 RAID Card | CBL-SAST-1275A-100 | $ 34.00 | 1 | Slimline x8 (STR) to 4x SATA 75/75/90/90CM 75CM | ||
| 3908 RAID Card | AOC-S3908L-H8IR-16DD | $ 695.50 | 1 | Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60 | ||
| 3908/3916 CacheVault | BTR-CVPM05 | $ 207.50 | 1 | CacheVault for Broadcom 3908/3916 (requires a mount) | ||
| AIOM Network Card(s) | AOC-A25G-m2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX | |||
| AIOM Network Card(s) | AOC-A100G-b2CM | 0 | OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508 | |||
| AIOM Network Card(s) | AOC-AG-i2M | 0 | OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2 | |||
| AIOM Network Card(s) | AOC-A25G-i4SM | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
| AIOM Network Card(s) | AOC-A25G-i2SM | 0 | OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1 | |||
| AIOM Network Card(s) | AOC-A25G-b2SM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2 | |||
| AIOM Network Card(s) | AOC-AG-i4M | 0 | OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-AG-i4SM | 0 | OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4 | |||
| AIOM Network Card(s) | AOC-AH25G-m2S2TM | 0 | OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2 | |||
| AIOM Network Card(s) | AOC-ATG-b2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416 | |||
| AIOM Network Card(s) | AOC-ATG-i2SM | 0 | OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2 | |||
| AIOM Network Card(s) | AOC-ATG-i2T2SM | 0 | OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4 | |||
| AIOM Network Card(s) | AOC-ATG-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2 | |||
| AIOM Network Card(s) | AOC-ATG-i4SM | 0 | OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1 | |||
| AIOM Network Card(s) | AOC-ATGC-i2TM | 0 | OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2 | |||
| Cable Management Arm | MCP-290-00152-0N | $ 152.00 | 1 | 1U Supermicro Cable Management Arm 2nd Gen | ||
| CacheVault Mount | MCP-240-21747-0N | 1 | CacheVault mounting card for AIOM slot | |||
| CacheVault Mount | MCP-240-00203-0N | $ 26.50 | 1 | CacheVault mounting bracket for PCIe slot | ||
| CacheVault Mount | MCP-240-00127-0N | $ 20.50 | 1 | CacheVault mounting tray for 2.5" drive bay | ||
| Fan Upgrade | FAN-0163L4 | $ 33.50 | 6 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan | ||
| Fixed 2.5" Drive Kit | MCP-220-81511-0N | $ 26.00 | 2 | FDD-size tray support for 1x 2.5" 7mm drive | ||
| Fixed 2.5" Drive Kit | CBL-SAST-0624 | $ 17.00 | 2 | 70cm SATA Cable S-S | ||
| Fixed 2.5" Drive Kit | CBL-0211L | $ 20.00 | 1 | 4PIN-TO-3X SATA POWER CABLE | ||
| Inlet Temp Sensor | MCP-280-00033-0N | $ 31.50 | 1 | Universal Thermal sensor kit with 80cm I2C cable | ||
| License | SFT-DCMS-SINGLE • | 1 | Supermicro System Managment Software License | |||
| License | SFT-SDDC-SINGLE | $ 303.50 | 1 | Supermicro Data Center Monitor License | ||
| M.2 Tray | AOC-SLG4-2H8M2 | $ 224.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1 | ||
| M.2 Tray | AOC-SLG3-2M2 | $ 54.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules | ||
| M.2 Tray | AOC-SLG3-2NM2 | $ 188.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1 | ||
| M.2 Tray | AOC-SLG3-2SM2 | $ 188.00 | 0 | Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1 | ||
| NC-SI Cable | CBL-PWEX-1099-34 | 1 | FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM | |||
| Power Supply Upgrade | PWS-1K27A-1R | $ 370.00 | 2 | 1200W Redundant Titanium Level Power Supply | ||
| TPM | AOM-TPM-9672V | $ 72.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor | ||
| TPM | AOM-TPM-9670V-S-FIPS | $ 63.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor | ||
| TPM | AOM-TPM-9672V-FIPS | $ 78.00 | 1 | SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor | ||
| VROC HW Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard RAID 0, 1, 10 | ||
| VROC HW Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium RAID 0, 1, 5, 10 |
