| Main Specifications |

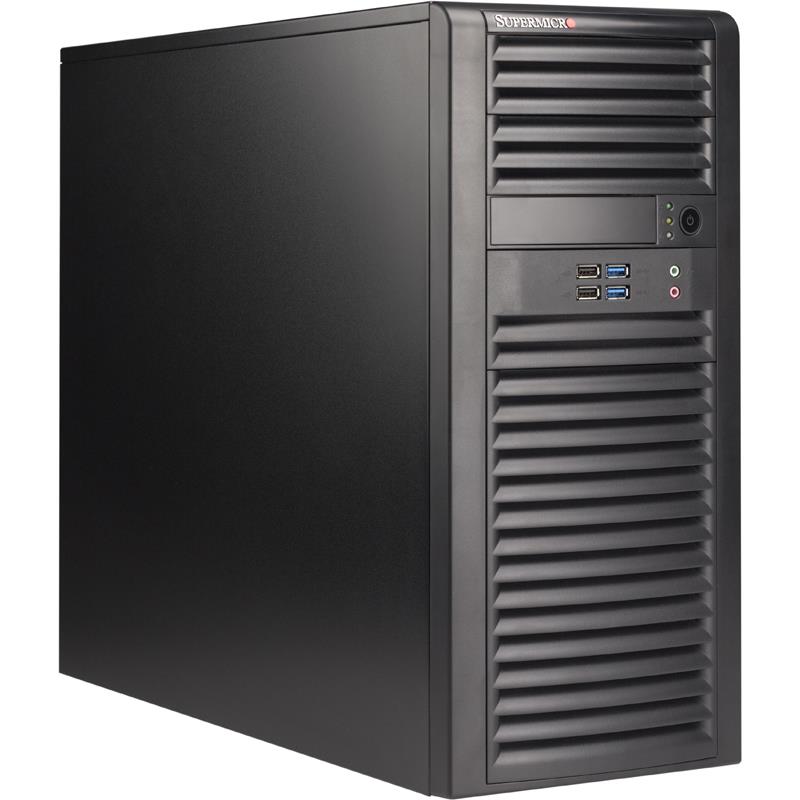

| Device Type | Mid-tower chassis |
| Supported Mainboard Form Factor | support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX |
| Dimensions (WxDxH) | Height 16.7" (424 mm) x Width 7.6" (193 mm) x Depth 20.68" (525 mm) |
| Weight | 30 lbs (13.61 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 full-height & full-length expansion slot(s) |
| Expansion Bays Total (Free) | 4 x 3.5" fixed drive bay, Optional 4 x 2.5" fixed drive bay |
| Peripheral Bay (Free) | 2 x standard 5.25" drive bay, 1 x 3.5" internal fixed drive bay |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | 1 Network Activity LEDs, HDD activity LED, Power Status LED, System Overheat LED |
| Ports | 2x USB 3.0 Port, 2x USB 2.0 Port, 2x HD/AC97 Audio port |
| System Cooling |
| Fans | 1 x 12cm rear exhaust fan, Optional 1 x 12cm (front) cooling fan |
| Power Supply |
| Power Supply | PS2 668W Multi-output power supply 80PLUS Platinum |
| Certification | 80PLUS Platinum Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Parts List - (Items Included) |
| Cable | 1x CBL-0071L, 1x CBL-0084L, 1x CBL-0453L, 1x CBL-0455L, 1x CBL-PWCD-0160-IS |
| Fan(s) | 1x FAN-0124L4 |
| Front Bezel | 1x MCP-210-73102-0B |
| Drive Trays | 4x MCP-220-73101-0B |
| Power Supply Number | 1x PWS-668-PQ |
| Parts | 1x MCP-290-73102-0N |
