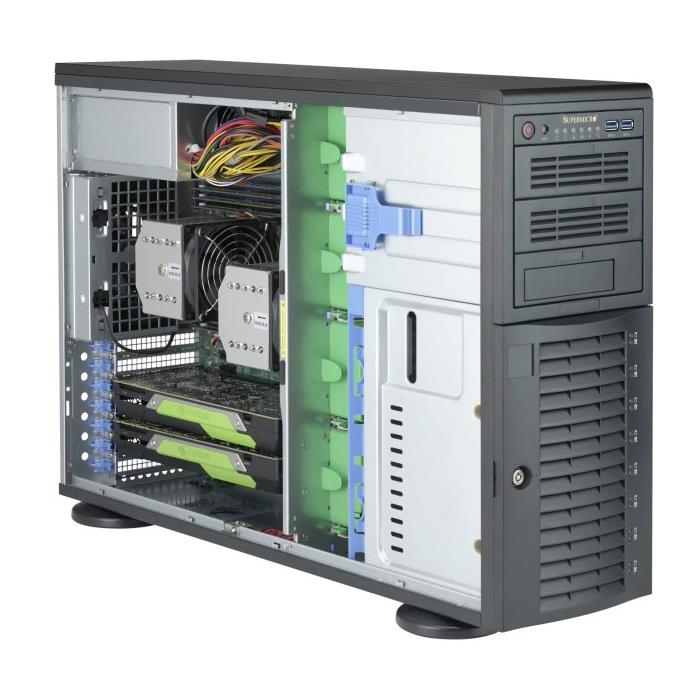

Supermicro CSE-743AC-1K26B-SQ 4U / Full Tower Chassis With 1260W Platinum Power Supply

Seven PCI-Express full-height slots
4U tower, optional rack mounting rails
Up to eight SAS3/SATA3 3.5" hot-swap drives
Offers reliable performance with problem-free maintenance

4U / Full Tower Chassis With 8x 3.5in SAS3/SATA3 Backplane for Hot-Swappable Drives Whisper-Quiet Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0, 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan, 4U / Full Tower Chassis 1260W Platinum Level Certified High-Efficiency Power Supply 3x 5.25in External HDD Drive Bays - SC743AC-1200B-SQ

1. 8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
2. Whisper-Quiet (<27dB)
3. Front HDD Door Lock & Side Panel Intrusion Switch
4. Front I/O Ports: 2x USB 3.0
5. 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
7. 1200W Platinum Level Certified High-Efficiency Power Supply
8. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

Extra Specifications for Supermicro CSE-743AC-1K26B-SQ 4U / Full Tower Chassis With 1260W Platinum Power Supply

Processor Support
Processor Support	Dual and Single Intel® and AMD processors
Power Supply
Certification	Platinum Certified
Power Efficiency	94%
Total Output Power and Input	1000W with Input 100 - 120Vac
	1200W with Input 120 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	185 x 150 x 86 mm
Output Type	24pin ATX
-12V	Max: 0.3A / Min: 0A
+12V	Max: 99A / Min: 1A (120Vac - 240Vac)
	Max: 83A / Min: 1A (100Vac - 120Vac)
+5V	Max: 20A / Min: 0.3A
+3.3V	Max: 20A / Min: 0.3A
+5Vsb	Max: 3A / Min: 0A
Product SKUs
Product SKUs	CSE-743AC-1K26B-SQ
Form Factor
Form Factor	4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX
Dimensions
Height	17.8" (452 mm)
Width	7" (178 mm)
Depth	25.5" (647 mm)
Gross Weight	56 lbs (25.4 kg)
Net Weight	53 lbs (24.04 kg)
Packaging (W x H x L)	27.8" (706 mm) x 12.5" (318 mm) x 31.1" (790 mm)
Available Color	Black
Expansion Slots
Expansion Slots	7x Full-height, Full-length expansion slot(s)
Drive Bays
Drive Bays	8x 3.5"/2.5" hot-swap SAS drive bay with SES3
Backplane
Backplane	8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Peripheral Drives
Peripheral Drives	90 degree rotatable drive cage
	2x standard 5.25" drive bay
Front Panel
Button	Power On/Off button
	System Reset button
LED	Power status LED
	HDD activity LED
	2 Network Activity LEDs
	Unit Identification (UID) LED
	Fan Fail/System Over Heat LED
Port	2x USB 3.0 Port(s)
Systems Cooling
Fans	1x 92mm PWM Rear fan(s)
	2x 80mm PWM Chassis Middle Fans
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	UL/CB
	FCC class B

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
