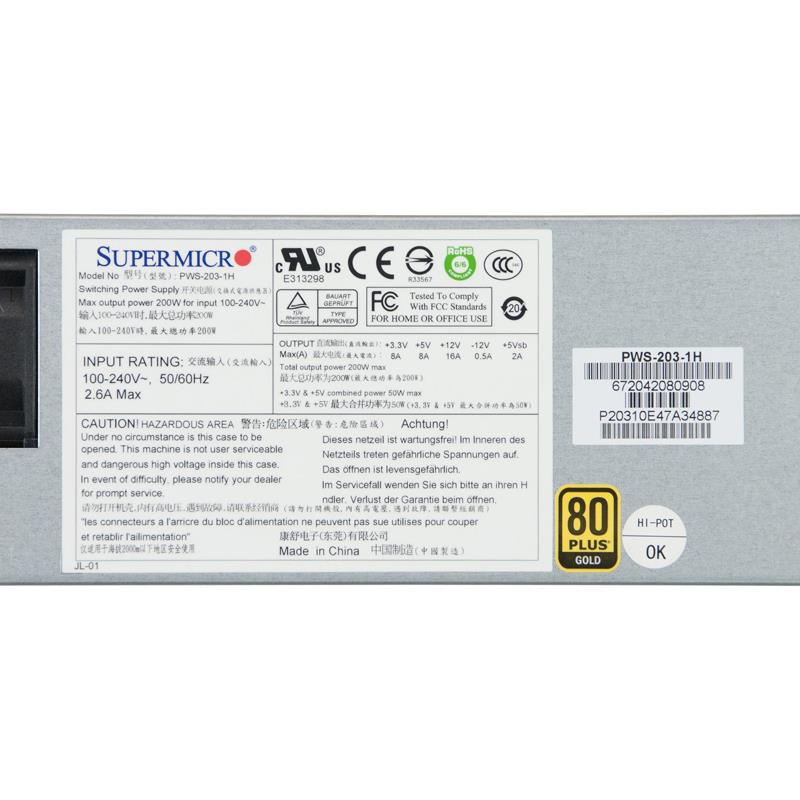

Supermicro PWS-203-1H 1U 200W Power Supply 80PLUS Gold Certified
• Designed for Workstation and Desktop
• 200W - 80 Plus Gold level power supply
• Quiet fan to keep it cool under heavy loads
• RoHS requirements and are certified by Supermicro
1U Power Supply, Provide 200W 80Plus Gold Certified, Multi-output, Low Noise With PFC
The Supermicro PWS-203-1H is an 80 Plus Gold level power supply capable of continuously supplying 200W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your Supermicro 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and is certified by Supermicro.
Cables Included
1x 20 Pin ATX (Motherboard)
1x 8 Pin 12V (CPU)
2x 4 Pin Legacy HDD
2x SATA Power Connectors
Extra Specifications for Supermicro PWS-203-1H 1U 200W Power Supply 80PLUS Gold Certified
| Power Device | ||
| Power Provided | 200W Low Noise AC-DC power supply with PFC | |
| 80 PLUS Certification | 80 PLUS Gold | |
| Power Supply | ||
| +12V | 16 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| +5V Standby | 2.0 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| Certification | 80 + Gold Certified | |
| Dimension (W x H x L) | 76 x 40.3 x 192 mm | |
| PFC | Yes | |
| Main Specifications | ||
| Output Type | 20Pin ATX Cable Output | |
| Power Efficiency | ||
| Energy Efficient | 91% Peak | |
| Miscellaneous | ||
| Compatible Chassis | CSE-504-203B, CSE-505-203B, CSE-510-203B, CSE-510T-203B, CSE-512-203B | |
| Compatible Servers | AS-5019D-FTN4, SYS-1019C-HTN2, SYS-5018A-FTN4, SYS-5018A-TN7B, SYS-5018D-FN4T, SYS-5018D-FN8T, SYS-5019A-FN5T, SYS-5019A-FTN4, SYS-5019A-FTN10P, SYS-5019C-FL, SYS-5019D-4C-FN8TP, SYS-5019D-FN8TP, SYS-5019S-L | |
| Environmental Compliance | RoHS and REACH compliant | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
