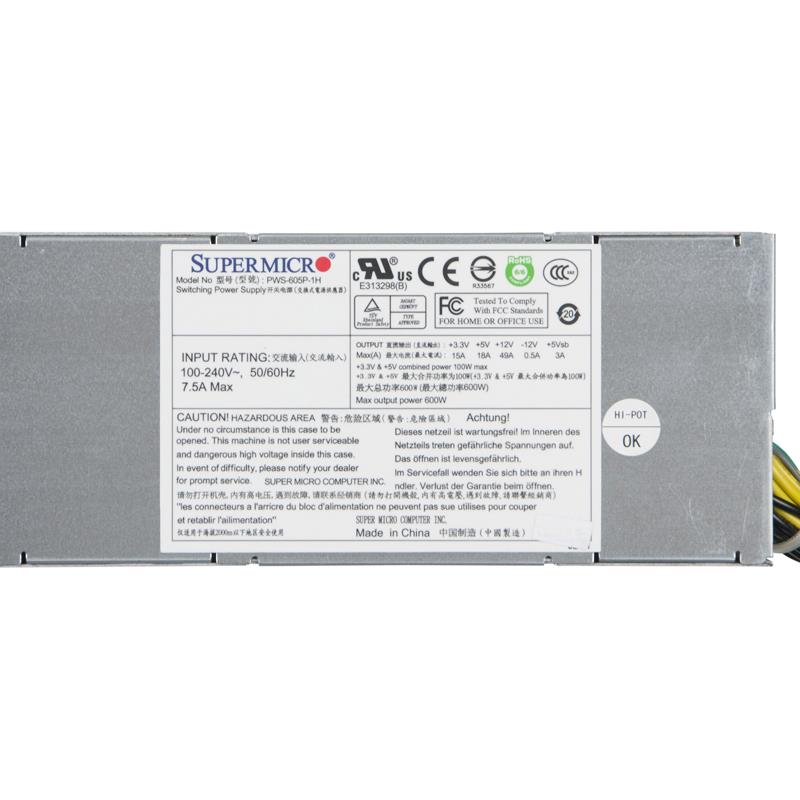

- Supermicro PWS-605P-1H 1U 600W 80 Plus Platinum Power Supply With PFC Support
Supermicro PWS-605P-1H 1U 600W 80 Plus Platinum Power Supply With PFC Support
• Multiple output power supply
• Comply with RoHS requirements
• PMBus 1.2 Support for Remote Management
• 80+ certification; active PFC for high efficiency
Power Supply 600W 80 Plus Platinum w/ PFC, PMBus, 100-240 V input
The Supermicro PWS-605P-1H provides up to 600w output. It features PMBus 1.2 support for remote management. The power supply is 80 Plus certification and active PFC for high efficiency.
Extra Specifications for Supermicro PWS-605P-1H 1U 600W 80 Plus Platinum Power Supply With PFC Support
| Main Specifications | ||
| Device Type | Power supply | |
| Dimension(s) (WxDxH) | 3 x 11 x 1.6 in | |
| Height (Rack Units) | 1U | |
| Power | ||
| Power Device | Internal | |
| Power Device | ||
| Power Provided | 600 Watt | |
| Frequency Required | 50/60 Hz | |
| Input Voltage | AC 100-240 V | |
| Output Connector(s) | 1 x power 24 pin ATX, 1 x power 8 pin +12V with detachable 4 pin section | |
| Output Current | +5V - 18 A, +12V - 49 A, +3.3V - 15 A, +5VSB - 3 A, -12V - 0.5 A | |
| Output Voltage | +3.3, +5, 12 V | |
| PCF | Power Factor Correction (PFC) | |
| Power Supply | ||
| Certification | 80 PLUS Platinum | |
| Miscellaneous | ||
| Compatible Servers | SYS-1028R-MCT, SYS-1028R-TDW, SYS-1029P-MT, SYS-1029P-WT, SYS-5019P-WT, SYS-6017R-NTF, SYS-6017R-TDAF, SYS-6017R-TDT+, SYS-6018R-TDTP, SYS-6018R-TDW, SYS-6019P-WT, SYS-6027R-TDT+ | |
| Compatible Chassis | CSE-111TQ-600CB, CSE-111TQ-600UB, CSE-113AC2-605WB, CSE-113MFAC2-605CB, CSE-113MTQ-600CB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-213LT-600LPB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQC-605CB, CSE-815TQC-605WB, CSE-825TQ-600LPB, CSE-825TQ-600WB, CSE-825TQC-600LPB, CSE-825TQC-600WB | |
| Environmental Compliance | RoHS and REACH compliant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
