• Supports dual; single processors
• Optimized for E-ATX; WIO motherboards
• 4x 3.5 Hot-swap SAS / SATA Drive Bays
• 1x Air Shroud; 4x Counter-rotating PWM Fans

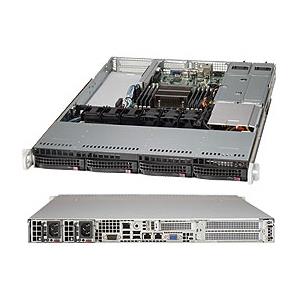

Rackmount 1U 700W/750W 80 Plus Redundant Gold Level Power Supply, for Up to Dual Intel / AMD Processors, Optimized for WIO (W Series) motherboards - 4x 3.5in Hot-Swap SAS/SATA Drive Trays, Slim DVD-ROM (Optional), Slim Floppy Drive (Optional), Rails Kit - (Black)
• 1x Slim DVD-ROM Drive (optional)
• 4x 4cm Counter-rotating PWM Fans
• 2x Full-height I/O Expansion Slots
• 1x Low-profile I/O Expansion Slot
• Power Switch, Reset, UID Button & 5 LED Indicators
• 700W Redundant Power Supplies 80 PLUS, Gold Level Certified
| Main Specifications | ||
| Device Type | SuperChassis 815TQ-R700WB | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) | |
| Color | Black | |
| Form Factor | 1U chassis support for max. MB size - 12" x 13" E-ATX - Optimized for WIO (W series) motherboards | |
| Weight | 36 lbs (16.3kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2x Full-height Expansion Slots (Riser Card Required) | |
| 1x Low-profile Expansion Slot (Riser Card Required) | ||
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| Drive Bays | ||
| Hot-swap | 4x 3.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended | |
| Peripheral Drives | CSE-PT93L-B | |
| System Cooling | ||
| Fans | FAN-0086L4 | |
| 4x 4cm Counter-rotating PWM fans | ||
| Environmental Parameters | ||
| Operating Temperature | Operating Temperature Range 10 - 35C (50 to 95 F) | |
| Non-Operating Temperature Range -40 - +70C (-40 to 158 F) | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing | |
| Humidity Range 8 - 90% non-condensing | ||
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Power Supply | 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C | |
| PWS-704P-1R | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, China - CCC Mark, Europe/CE Mark, EN 60950/IEC 60950-Compliant, Germany - TUV Certified | |
| Standard Parts List | ||
| Accessory | MCP-120-00030-0N / MCP-120-00053-0N | |
| Chassis | CSE-815TQ-R700WB | |
| Fan Holder | MCP-340-00035-0B / CSE-PT0135 | |
| Front Panel | FP815U | |
| Power Distributor | PDB-PT112-2420 | |
| Rear Window | MCP-240-00098-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-19002-0N | |
| Backplane | BPN-SAS-815TQ-O-P | |
| Drive Trays | MCP-220-00075-0B | |
| Mounting Rails | MCP-290-00109-0N / MCP-290-00101-0N / MCP-290-00105-0N | |
| Parts List | ||
| Cables | CBL-0157L / CBL-0180L-01 / CBL-0335L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
