| Main Specifications |

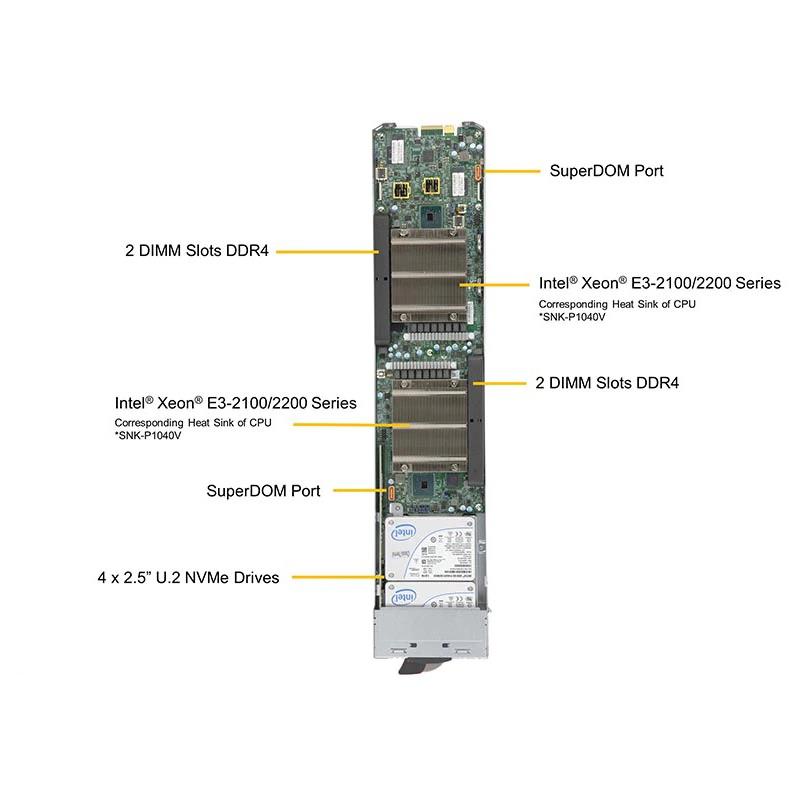

| Device Type | MicroBlade Sled |
| Built-in Devices | MBD-B2SC2-TF |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) |
| Enclosure Color | Silver Grey |
| Processor |
| Compatible Processors (per Node) | Support Intel Xeon processor E-2100 / E-2200 series, CPU TDP support up to 95W |
| Compatible Socket (per Node) | Single Socket H4 (LGA 1151) |
| Cache/Core (per Node) | Up to 8 cores |
| System Memory |
| Memory Capacity (per Node) | 2 DDR4 DIMM sockets, Supports up to 64GB DDR4 ECC VLP UDIMM |
| Memory Type (per Node) | 2666MHz ECC DDR4 UDIMM |
| DIMM Sizes (per node) | 32GB |
| Memory Voltage (per Node) | 1.2V |
| Error Detection (per Node) | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset (per Node) | Intel C246 chipset |
| Network Controllers (per Node) | Dual 10GbE LAN ports via BCM57414 |
| TPM | 1 TPM Header |
| IPMI (per Node) | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Input / Output |
| Others (per Node) | 1x SATA DOM |
| System BIOS |
| BIOS Type | 128Mb Flash EEPROM |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 |
| Front Panel |
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED |
| Drive Bays |
| Internal Drive Bays (per Node) | 2x 2.5" U.2 NVMe (7mm) drives |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) |
| Electromagnetic Compatibility (EMC) |
| United States / Canada | FCC- Emissions (US) Verification |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| Parts List - (Items Included) |
| Motherboard / MicroBlade Sled | 1x MBD-B2SC2-TF-P / 1x MCP-680-31405-0N |
| Micro Blade Module Chassis | 1x MCP-620-31401-0N, 1x MCP-620-31402-0N, 1x MCP-620-31408-0N, 1x MCP-620-31405-0N |
| Add-On Card | 1x AOM-BPNIO-MSN-P |
