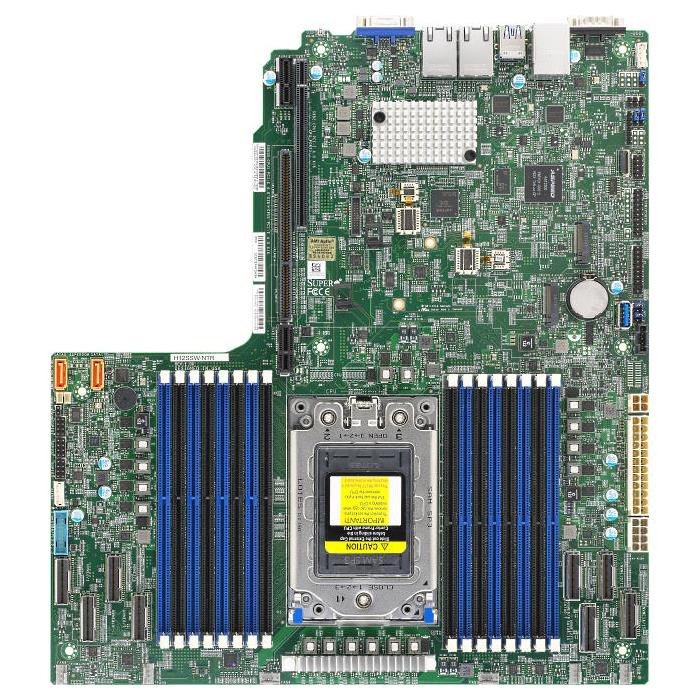

Supermicro H12SSW-NTR Motherboard Proprietary Single Socket SP3 AMD EPYC 7003/7002 Series Processor
Single EPYC 7002, in one Socket SP3 socket
Two RJ45 10GBase-T LAN ports, Two SuperDOM
Two Expansion Slots, Twelve Internal NVMe Ports
Up to 4TB ECC DDR4-3200MHz, memory in sixteen slots
Motherboard Proprietary, Supports Single Socket SP3, Supporting AMD EPYC 7003/7002 Series Processor (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) (Up to 64-Core). Up to 4TB DDR4 Reg ECC 3200MHz memory in 16 DIMM slots, 12 native NVMe via SlimSAS, 2x M.2, Dual 10GbE LAN, IPMI 2.0 + KVM, TPM 2.0 - MBD-H12SSW-NTR-O
Built upon the functionality and capability of the EPYC 7002 processor, the H12SSW-NTR motherboard provides superior system performance while consuming little power.
Key Features
Single AMD EPYC 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Expansion slots: 1 PCI-E 4.0 x32 Left Riser Slot, 1 PCI-E 4.0 x16 Right Riser Slot
M.2 Interface: 2 PCI-E 4.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
12 native NVMe via SlimSAS, 4 NVMe or 16 SATA3 ports via SlimSAS, 2 M.2, 2 SATA3
2x 10GBase-T LAN Ports via Broadcom BCM57416
ASPEED AST2500 BMC graphics
Up to 7 USB 3.0 ports
6x 4-pin PWM Fans & Speed control
Extra Specifications for Supermicro H12SSW-NTR Motherboard Proprietary Single Socket SP3 AMD EPYC 7003/7002 Series Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Proprietary | |
| Dimensions (WxDxH) | 13.4" x 12.29" (34cm x 31.2cm) | |
| Processor | ||
| Compatible Processors | Single AMD EPYC 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) | |
| Compatible Socket | Socket SP3 | |
| Cache/Core | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots, Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs, 8-channel memory bus | |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System-on-Chip | |
| SATA/SAS | SATA3 (6 Gbps) | |
| Network Controllers | 2x 10GBase-T LAN Ports via Broadcom BCM57416, 1 Realtek RTL8211F PHY (dedicated IPMI) | |
| Video | VGA via Aspeed AST2500 BMC | |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2500 BMC | |
| TPM | 1 TPM 1.2/2.0 header | |
| Input / Output | ||
| SATA | 2 SATA3 (6 Gbps) ports | |
| SATA/NVMe Hybrid | 16 SATA3 or 4 NVMe via SlimSAS (PCI-E Gen4) | |
| NVMe | 12 NVMe (PCI-E Gen4) | |
| LAN | 2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port | |
| USB | 7 USB 3.0 ports (4 rear, 2 via header, 1 Type A) | |
| VGA | 1x VGA Port | |
| COM Port | 1 COM | |
| DOM | 2 SATA DOM power connectors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 4.0 x32 Left Riser Slot | |
| 1 PCI-E 4.0 x16 Right Riser Slot | ||
| Drive Bays | ||
| M.2. | Key: M-Key | |
| Form Factor: 2280, 22110 | ||
| Interface: 2 PCI-E 4.0 x2 | ||
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 | |
| Management | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby, CPU switching voltage regulator | |
| FAN | Up to 6 fan status tachometer monitoring, Up to 6 4-pin fan headers, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip Support, Thermal control for 6x Fan connectors, I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED | |
| Other Features | Chassis intrusion detection, Chassis intrusion header | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
