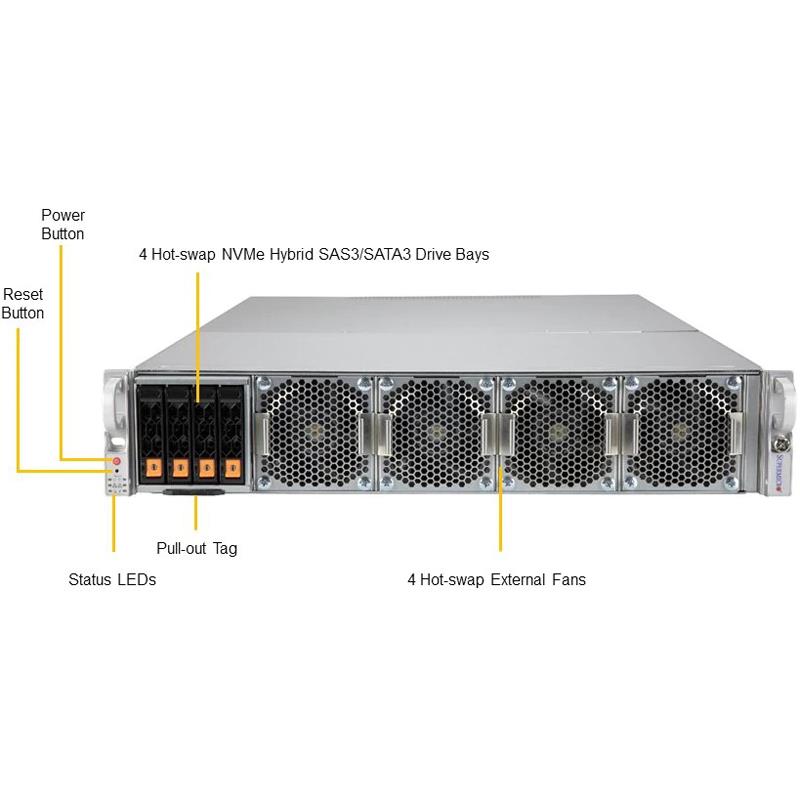

- Supermicro AS-2124GQ-NART A+ 2U Barebone Dual AMD EPYC 7002/7003 Series Processor Up to 8TB SDRAM SATA3, NVMe Dual RJ45 10GbE
Supermicro AS-2124GQ-NART A+ 2U Barebone Dual AMD EPYC 7002/7003 Series Processor Up to 8TB SDRAM SATA3, NVMe Dual RJ45 10GbE
• AI/ML, Deep Learning Training and Inference
• High-performance Computing (HPC)
• Cloud Computing
• Research Laboratory/National Laboratory
• Autonomous Vehicle Technologies
• Molecular Dynamics Simulation

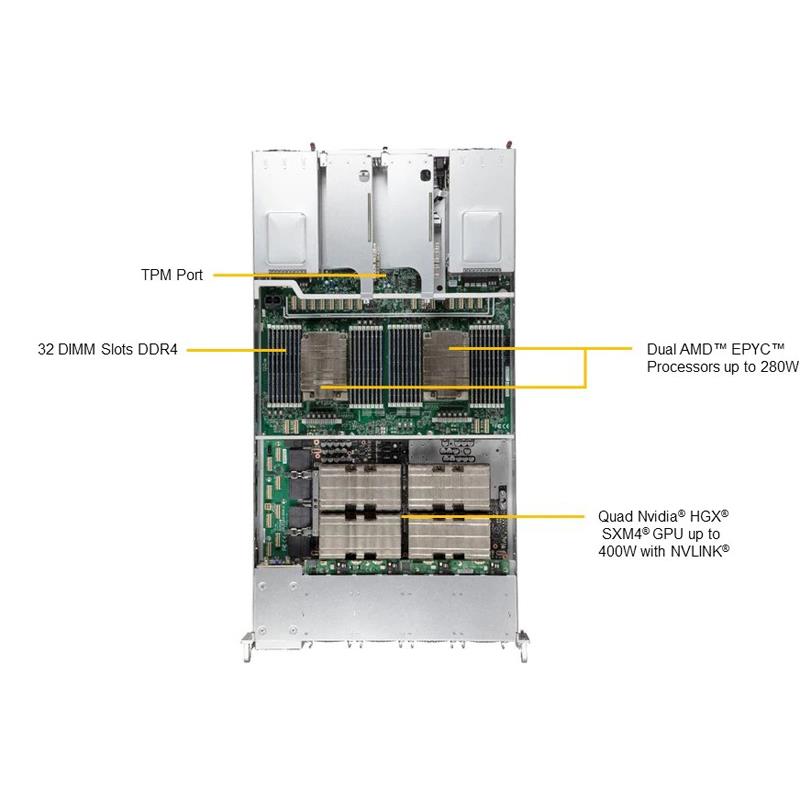

Barebone A+ 2U Rackmount SuperServer Dual AMD EPYC 7002/7003, System on Chip, included baseboard supports 4x HGX A100 40GB (HBM2) or 80GB (HBM2e); Up to 8TB 3200MHz in 32 DIMM Slots; SAS3/ SATA3/ NVMe Hybrid, 4x 2.5in hot-swap drive bays, Dual 10GbE RJ45, 2x 2200W Redundant Power Supply (CSE-228GTS-R2K21P + H12DSG-Q-CPU6) - AS -2124GQ-NART
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, Min of 512GB Memory for 80G HGX-4 A100 OR Min of 256GB Memory for 40G HGX-4 A100, 1 Storage device, and 1 NIC included in IO board). OSNBD3 is highly recommended.
1. High Density 2U System with NVIDIA® HGX™ A100 4-GPU; Highest GPU communication using NVIDIA® NVLINK™, 4 NICs for GPUDirect RDMA (1:1 GPU Ratio)
2. Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
3. Direct connect PCI-E Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
4. On board BMC supports integrated IPMI 2.0 + KVM with dedicated 10G LAN
5. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
6. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
7. 4 PCI-E Gen 4 x16 (LP), 1 PCI-E Gen 4 x8 (LP)
8. 4 Hot-swap 2.5" drive bays (SAS/SATA/NVMe Hybrid)
9. 2x 2200W Platinum Level power supplies with Smart Power Redundancy
Extra Specifications for Supermicro AS-2124GQ-NART A+ 2U Barebone Dual AMD EPYC 7002/7003 Series Processor Up to 8TB SDRAM SATA3, NVMe Dual RJ45 10GbE
| Motherboard | ||
| Motherboard | Super H12DSG-Q-CPU6 | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 128 Cores (64 per CPU) | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| GPU | ||
| Supported GPUs | HGX A100 4-GPU 40GB/80GB SXM4 Multi-GPU Board | |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ GPU-to-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | 32 DIMM slots | |
| Up to 8TB 3DS ECC DDR4-3200MH SDRAM | ||
| Memory Type | 3200MHz ECC DDR4 SDRAM | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| Network | Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics & System Management | ASPEED AST2600 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 10GbE-aggregate host LAN ports | |
| 1 RJ45 1GbE Dedicated IPMI management port | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector (rear) | |
| Others | 1 COM port (header) | |
| 1 TPM 2.0 (header) | ||
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmountable | |
| Model | CSE-228GTS-R2K21P | |
| Dimensions | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | ~32.7" (830.3mm) | |
| Weight | Net Weight: 78.5 lbs (35.6 kg) | |
| Gross Weight: 88.5 lbs (40.1 kg) | ||
| Package Dimensions | 45.5" L x 22.5" W x 11" H | |
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | 4 Hot-swap 2.5" drive bays (SATA/NVMe Hybrid or SAS with optional HBA) | |
| Expansion Slots | ||
| PCI-Express | 4 PCI-E Gen4 x16 (LP) slots - supporting HGX A100 4-GPU's 1:1 connection to 4 NICs | |
| 1 PCI-E Gen 4 x8 (LP) slot | ||
| System Cooling | ||
| Fans | 4 Hot-swap heavy duty fans | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 2200W: 220 – 240Vac | ||
| Dimension (W x H x L) | 107 x 82 x 204 mm | |
| Input | 100-127Vac / 12-9.5A / 50-60Hz | |
| 220-240Vac / 11-10A / 50-60Hz | ||
| Output Type | Gold Finger Connector | |
| Certification | Platinum Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2124GQ-NART (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| GPU Baseboard * | GPU-NVTHGX-A100-SXM4-4 | 0 | NVIDIA Redstone GPU Baseboard, 4 A100 40GB SXM4 | |||
| GPU Baseboard * | GPU-NVTHGX-A100-SXM4-48 | 0 | NVIDIA Redstone GPU Baseboard, 4 A100 80GB SXM4 | |||
| Drive Tray | MCP-220-00187-0B | $ 23.50 | 0 | SATA or SAS Maroon Drive Carrier, tool-less with lock feature | ||
| Storage Controller Card & Cable(s) | AOC-S3108L-H8IR-16DD& 1x CBL-SAST-1285-100 | 0 | 8 int 12Gb/s ports, 8xGen3, ROC – LP, 16 HDD w/ exp;Slimline x4 (STR) to MiniSAS HD (STR) x4, 85cm, 100OHM, R | |||
| Storage Controller Card & Cable(s) | AOC-SLG3-2H8M2 | $ 188.00 | 0 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | ||
| Storage Controller Card & Cable(s) | AOC-SLG3-2M2 | $ 54.00 | 0 | LP, PCIe3 x8, Dual port NVMe M.2 carrier | ||
| Storage Controller Card & Cable(s) | AOC-SLG3-2NM2 | $ 188.00 | 0 | 2x NVMe M.2 RAID Carrier, Standard LP,RoHS | ||
| Storage Controller Card & Cable(s) | AOC-S3908L-H8IR-16DD& 1x CBL-SAST-1276F-100 | 0 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDD w/ exp,RoHS | |||
| Network Card(s) | AOC-623106AN-CDAT | $ 1,363.00 | 0 | ConnectX-6 Dx 100GbE Ethernet Adapter Card, dual port QSFP56 PCIe 4.0 x16, RoHS | ||
| Network Card(s) | AOC-653105A-ECAT | $ 918.00 | 0 | ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Card(s) | AOC-653105A-HDAT | $ 1,174.00 | 0 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS | ||
| Network Card(s) | AOC-653106A-ECAT | $ 1,199.00 | 0 | ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Card(s) | AOC-653106A-HDAT | $ 2,028.00 | 0 | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS | ||
| Network Card(s) | AOC-683105AN-HDAT | $ 1,367.00 | 0 | Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen 3.0/4.0x16 Cx-6 DE, RoHS | ||
| Network Card(s) | AOC-MCX512A-ACAT | $ 407.50 | 0 | Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS | ||
| Network Card(s) | AOC-MCX555A-ECAT | $ 758.50 | 0 | CX-5 VPI EDR IB adapter & 100GbE,1p, QSFP28, PCIe3x16 | ||
| Network Card(s) | AOC-MCX556A-ECAT | $ 1,048.00 | 0 | MCX556A-ECAT, CX-5 VPI,EDR IB,100GbE,2p,QSFP28,PCIe3x16 | ||
| Network Card(s) | AOC-S100GC-i2C | 0 | Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset.,RoHS | |||
| Network Card(s) | AOC-S40G-i2Q | 0 | Intel® XL710-BM2 2-port QSFP+ (40Gb/port) Gen3 x8 Standard Low Profile | |||
| Network Card(s) | AOC-SGP-I2 | $ 106.00 | 0 | Intel® i350 AM2 2-port RJ45 (1Gb/port) Gen3 x4 Standard Low Profile | ||
| Network Card(s) | AOC-STG-i4S | 0 | Intel XL710-BM1 4-port SFP+ (10Gb/port) Gen3 x8, Standard Low Profile | |||
| Network Card(s) | AOC-STG-i4T | 0 | Std LP 4-port 10G RJ45, Intel XL710+ X557 | |||
| Network Card(s) | AOC-STGS-i2T | 0 | Intel® X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile | |||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 0 | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
