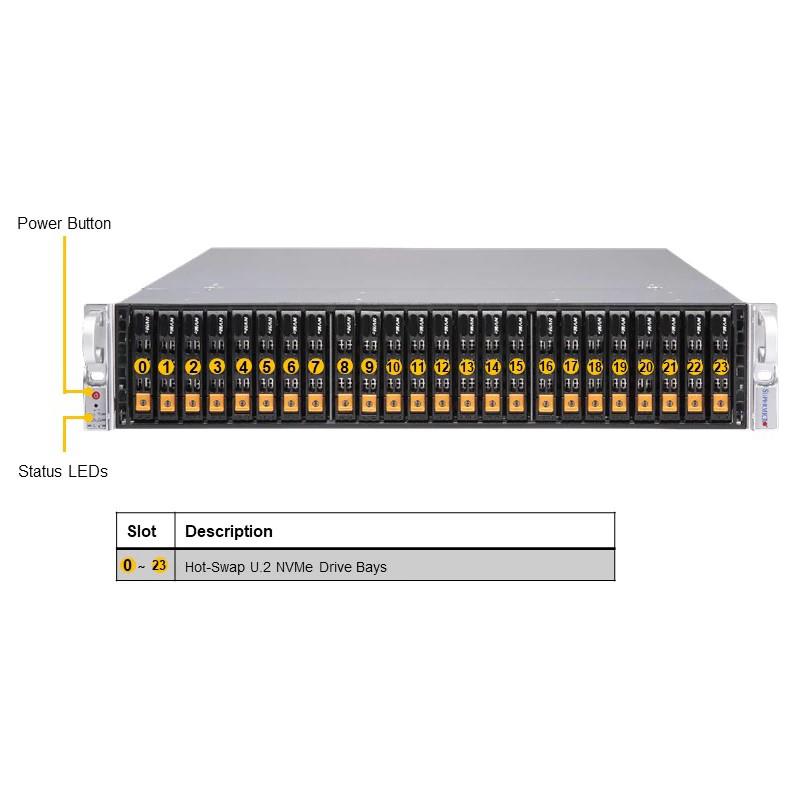

Supermicro AS-2114S-WN24RT Barebone Single AMD EPYC 7003/7002 Series Processor
• Virtualization
• Hyperconverged Storage
• Cloud Computing
• All Flash Storage
Barebone 2U A+ Server, support AMD Single EPYC 7003/7002. Up to 4TB DDR4 memory in 16 DIMM slots, 24 hot-swap 2.5in U.2, 12 NVMe via SlimSAS, 4 NVMe or 16 SATA3 ports, 2x M.2, Dual 10GbBase-T LAN ports. 1200W Redundant Power Supply (H12SSW-NTR + CSE-216BTS-R1K23WBP) - AS -2114S-WN24RT
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 8 DIMMs is recommended). Minimum requirement is 1 CPU, 2 DIMMs, 1 NVMe.
1. Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
3. Expansion slots: Up to 2 PCI-E 4.0 x16 (FH/HL) slots: 24-NVMe configuration (Standard) – 1 slot available 20-NVMe configuration – 2 slots available M.2 Interface : 2 PCI-E 4.0 x2 M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 10GBase-T LAN ports via Broadcom BCM57416
6. Up to 24 hot-swap 2.5" U.2 NVMe drive bays
7. 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2114S-WN24RT Barebone Single AMD EPYC 7003/7002 Series Processor
| Motherboard | ||
| Motherboard | H12SSW-NTR | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Support CPU TDP up to 280W | ||
| Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 16 DIMM slots | ||
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Broadcom BCM57416 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI Express | 1 or 2 * PCI-E 4.0 x16 (FH/HL) slots | |
| M.2 | Form Factor: 2280, 22110 | |
| Key: Onboard M-key | ||
| Interface: 2 PCI-E 4.0 x2 | ||
| Note | * 2 slots available using 20-NVMe configuration (24 NVMe is standard) | |
| Input / Output | ||
| NVMe | Up to 24 U.2 NVMe support | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10GBase-T LAN ports | ||
| USB | 5 USB 3.0 ports (4 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| Others | 1 COM port | |
| 2 SATA DOM power connectors | ||
| TPM 1.2 header, TPM 2.0 header | ||
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-216BTS-R1K23WBP | |
| Dimensions | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 24.8" (630mm) | |
| Weight | Net Weight: 34 lbs (15.42 kg) | |
| Gross Weight: 59 lbs (26.76 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | Up to 24 hot-swap 2.5" U.2 NVMe drive bays | |
| System Cooling | ||
| Fans | 3 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | CPU switching voltage regulator | |
| Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 6-fan status tachometer monitoring | ||
| Up to six 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| I²C Temperature Sensing Logic | ||
| Thermal control for 6x Fan connectors | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2114S-WN24RT | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Parts | MCP-220-82616-0N | $ 112.00 | 1 | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) | ||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Cable Management Arm | MCP-120-82503-0N | $ 34.00 | 0 | Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
