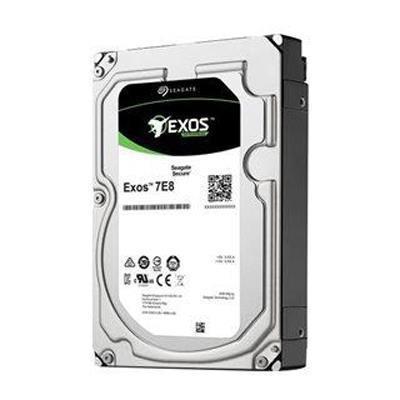

- Seagate ST4000NM004A Hard Drive 4TB SAS3 12Gb/s 7200 RPM 3.5in, 4Kn - Exos 7E8 Series
Seagate ST4000NM004A Hard Drive 4TB SAS3 12Gb/s 7200 RPM 3.5in, 4Kn - Exos 7E8 Series
OLTP and HPC applications
Massive scale-out data centers
High-capacity density RAID storage
Hyperscale applications/cloud data centers
Hard Drive 4TB SAS3 12Gb/s 7200 RPM 3.5in 256MB Cache 4kN Cimarron Series - OEM
Seagate Enterprise Capacity 3.5 HDD SAS drives provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.
Meet your storage workload requirements in the most efficient and cost-effective data center footprint on the market today
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550TB per year—10× that of desktop hard drives
Exos 7E8 hard drives support up to 8TB per drive, 1 offering bulk data storage for data center infrastructures requiring a highly reliable enterprise hard drive
Extra Specifications for Seagate ST4000NM004A Hard Drive 4TB SAS3 12Gb/s 7200 RPM 3.5in, 4Kn - Exos 7E8 Series
| Main Specifications | ||
| Device Type | Hard drive - internal - 4Kn Format | |
| Capacity | 4TB | |
| Form Factor | 3.5in | |
| Interface Type | 12Gb/s SAS | |
| Dimensions (WxDxH) | 4 in x 5.7 in x 1 in | |
| Weight | 1.58 lbs | |
| Hard Drive | ||
| Buffer Size | 256 MB | |
| Spindle Speed | 7200 RPM | |
| Performance | ||
| Average Latency | 4.16 | |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | |
| Max Sustainable Transfer Rate | 226MB/s | |
| Rotational Vibration | 12.5 | |
| Expansion / Connectivity | ||
| Interface Ports | Dual | |
| Miscellaneous | ||
| MTBF | 2 Million | |
| Key Application | Hyperscale applications/cloud data centers, Massive scale-out data centers, OLTP and HPC applications, High-capacity density RAID storage, Mainstream enterprise external storage arrays, Distributed file systems, including Hadoop and Ceph, Enterprise backup and restore—D2D, virtual tape, Centralized surveillance | |
| Features | Protection Information (T10 DIF), Humidity Sensor, SuperParity, Low Halogen, PowerChoice Technology, PowerBalance Technology, Advanced Write Caching (2M internal NOR flash) | |
| Reliability | ||
| Non-Recoverable Errors | 1 sector per 10E15 | |
| Power-On Hours | 8760 | |
| Reliability Rating @ Full 247 Operation | 0.44% | |
| Environmental | ||
| Operating Environment | Temperature, Operating (°C): 5°C – 60°C | |
| Shock, Operating Read/Write (Gs): 70/40Gs | ||
| Shock, Nonoperating, 1ms/2ms (Gs): 150/300 | ||
| Power | ||
| Idle (W) | 5.79W | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
