- Seagate ST12000NM004J Hard Drive 12TB SAS3 12Gb/s 7200 RPM 3.5in, 512e/4Kn - Exos X18 Series

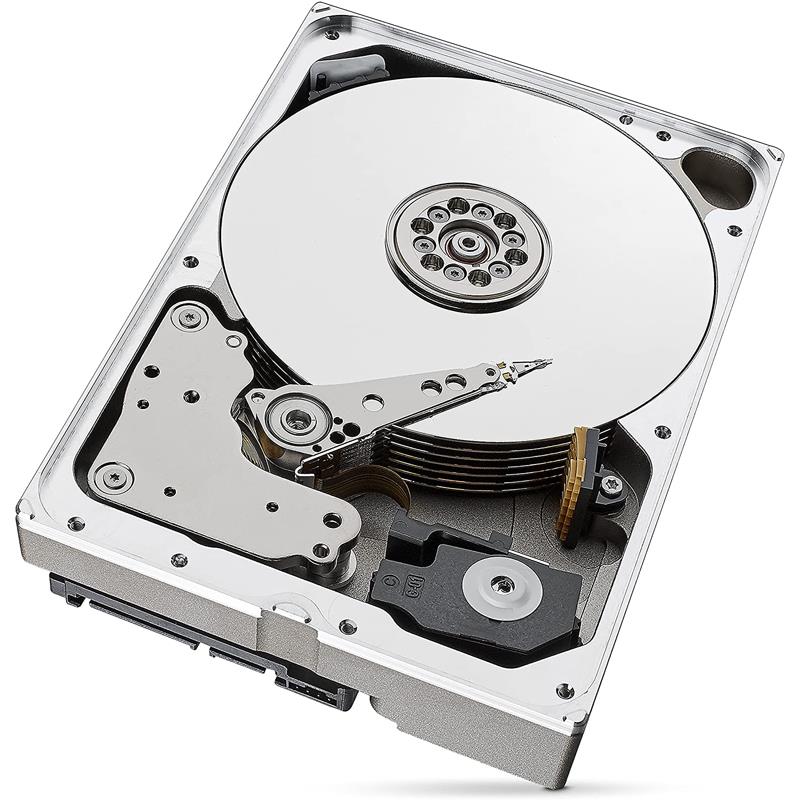

Seagate ST12000NM004J Hard Drive 12TB SAS3 12Gb/s 7200 RPM 3.5in, 512e/4Kn - Exos X18 Series
Helium Sealed-Drive Design, SuperParity
Affordable, fast, and easy drive retirement
High-capacity density RAID storage Applications
Hot-Plug Support, PowerChoice Idle Power Technology
Hard Drive 12TB SAS3 12Gb/s 7200 RPM 3.5in 256MB Cache 512e 4kN - OEM
Seagate manufactures hard drives that specifically address the demand for hyper-scale cloud scalability. As the flagship of the Seagate X class, the Exos X18 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
Scalable hyperscale applications/cloud data centers
Massive scale-out data centers
Big data applications
High-capacity density RAID storage
Mainstream enterprise external storage arrays
Distributed file systems, including Hadoop and Ceph
Enterprise backup and restore — D2D, virtual tape
Centralized surveillance
Extra Specifications for Seagate ST12000NM004J Hard Drive 12TB SAS3 12Gb/s 7200 RPM 3.5in, 512e/4Kn - Exos X18 Series
| Main Specifications | ||
| Device Type | Hard drive - internal - FastFormat (512e/4Kn) | |
| Capacity | 12TB | |
| Interface | 12Gb/s SAS Standard | |
| Form Factor | 3.5-inch HDD | |
| Dimensions (WxDxH) | Height 1.028 x Width 4.010 x Depth 5.787 in | |
| Weight | 1.433 lb | |
| Hard Drive | ||
| Buffer Size | 256 MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Average Latency | 4.16 ms | |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | |
| Max Sustainable Transfer Rate | 270/258 | |
| Rotational Vibration | 12.5 | |
| Expansion / Connectivity | ||
| Interface / Ports | Dual | |
| Power | ||
| Idle (W) | 5.0W | |
| Requirement | +12 V and +5 V | |
| Miscellaneous | ||
| MTBF | 2.5M hours | |
| Features | Helium Sealed-Drive Design, Conventional Magnetic Recording (CMR), Protection Information (T10 DIF), SuperParity, Low Halogen, PowerChoice Idle Power Technology, PowerBalance Power/Performance Technology, Hot-Plug Support, Cache, Organic Solderability Preservative, RSA 3072 Firmware Verification (SD&D) | |
| Environmental | ||
| Operating Environment | Temperature, Operating (°C): 5°C – 60°C | |
| Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27 | ||
| Shock, Operating 2ms (Read/Write) (Gs): 50 | ||
| Shock, Nonoperating 2ms (Gs): 200 | ||
| Warranty: | 5 years, 90 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 90 days, 2 weeks afterwards |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Seagate |
| Type of Support: | FULL |
| Phone No.: | 800.SEAGATE |
| URL: | Click here for Manufacturer Website |
