- Seagate XS15360TE70004 Hard Drive 15.36TB SSD SAS3 12Gb/s 2.5in - Nytro 3131 Series

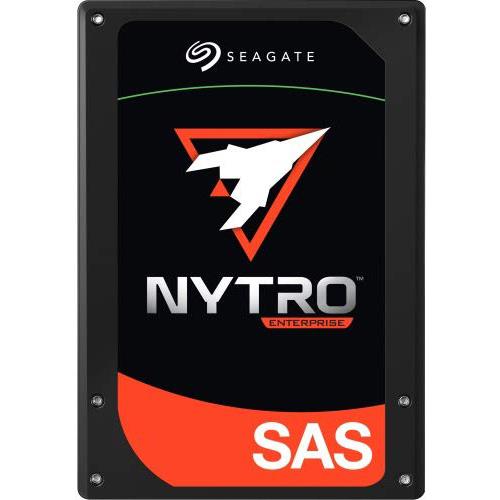

Seagate XS15360TE70004 Hard Drive 15.36TB SSD SAS3 12Gb/s 2.5in - Nytro 3131 Series
Dual-port 12Gb/s SAS interface
Vertical, horizontal, or top down mounting
IOPS, ultra-low latency, and high endurance
Server virtualization, OLTP databases Applications
Hard Drive 15.36TB SSD 12Gb/s 2.5in 3D eTLC 0.7DWPD - OEM
This product is no longer available.
The Seagate Nytro 3131 SAS SSD Series delivers high performance, industry-leading security features, and a broad selection of capacity and endurance offerings optimized for demanding enterprise applications and improved TCO.
Key Features and Benefits
Industry-leading hardware-based data encryption
Dual-port 12Gb/s SAS interface
The broad selection of endurance and capacity
Ultra-fast performance of up to 2200MB/s
Best-Fit Applications
Server virtualization
OLTP databases
Software-defined storage
All-flash arrays
Caching and tiering
Extra Specifications for Seagate XS15360TE70004 Hard Drive 15.36TB SSD SAS3 12Gb/s 2.5in - Nytro 3131 Series
| Main Specifications | ||
| Device Type | Solid state drive - internal - Nytro 3131—Read Intensive | |
| Capacity | 15.36TB | |
| Interface | Dual 12Gb/s SAS | |
| Form Factor | 2.5 in × 15 mm | |
| Dimensions (WxDxH) | Height 0.591 x Width 2.760 x Depth 3.955 in | |
| Weight | 0.364 lb | |
| NAND Flash Memory Type | 3D eTLC | |
| Performance | ||
| Endurance DWPD | 0.7 | |
| Internal Data Rate | 2100 MBps (read) / 1000 MBps (write) | |
| 4KB Random Read | Random Read (IOPS) Sustained, 4 KB: 145,000 | |
| 4KB Random Write | Random Write (IOPS) Sustained, 4 KB: 13,000 | |
| Reliability | ||
| Non-Recoverable Errors | 1 per 10E17 | |
| Annual Failure Rate (AFR) | 0.35% | |
| Power | ||
| Idle (W) | 4.4 | |
| Miscellaneous | ||
| Features | 3.0 / 6.0 / 12.0 Gb SAS interface, Single port or Dual port operation of the two interfaces, Support for SAS expanders and fanout adapters, T10 Write Stream support, 128 - deep task set (queue), Supports up to 32 initiators, Jumperless configuration, User-selectable logical block size (512, 520, 528, 4096, 4160, or 4224 bytes per logical block), Industry standard SFF 2.5-inch dimensions, ECC and Micro-RAID Error Recovery, No preventive maintenance or adjustments required, Self diagnostics performed when power is applied to the drive, Vertical, horizontal, or top down mounting, Drive Self Test (DST), Power loss data protection, Thin Provisioning with Block Unmap Support | |
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
