2.5” SATA III solution for industrial field
Excellent IOPS boosts system performance
Support S.M.A.R.T, TRIM, NCQ and iData Guard
Latest SATA III (6.0GHz) Marvell NAND controller

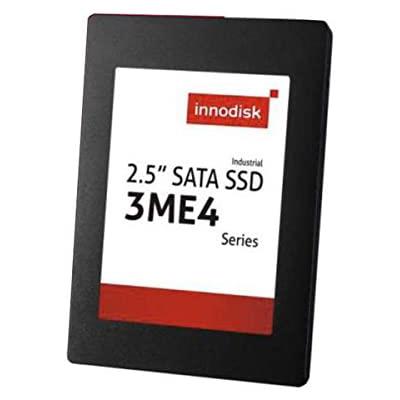

Hard Drive 32GB SSD SATA3 6Gb/s 2.5in - OEM
Innodisk 2.5” SATA SSD 3ME4 is characterized by L architecture with the latest SATA III (6.0GHz) Marvell NAND controller.
Innodisk’s exclusive L architecture is L architecture multiplied by LDPC (Low-Density Parity Check). L (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Features
2.5” SATA III solution for industrial field
7mm height mechanical design
DRAM-less, high-level data integrity
L³ architecture extends lifespan
Excellent IOPS boosts system performance
Built-in thermal sensor
Support S.M.A.R.T, TRIM, NCQ and iData Guard
| Main Specifications | ||
| Device Type | Solid state drive - internal | |
| Capacity | 32GB | |
| Interface | SATA III 6.0 Gb/s | |
| Form Factor | 2.5-inch, 7mm | |
| NAND Flash Memory Type | MLC | |
| Dimensions (WxDxH) | 69.85 X 100.10 X 6.9 mm | |
| Performance | ||
| Internal Data Rate | 550 MBps (read) / 510 MBps (write) | |
| Power | ||
| Power Consumption | 3.6W | |
| Miscellaneous | ||
| MTBF | 3 million hours | |
| Features | Thermal Sensor, S/W Write Protect, ATA Security, S.M.A.R.T. | |
| Environmental Parameters | ||
| Vibration Tolerance | 20G @7~2000Hz | |
| Shock Tolerance | 1500G @ 0.5ms | |
| Min Storage Temperature | -55°C ~ +95°C | |
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | InnoDisk |
| Type of Support: | FULL |
| Phone No.: | 510-770-9421 |
| URL: | Click here for Manufacturer Website |
