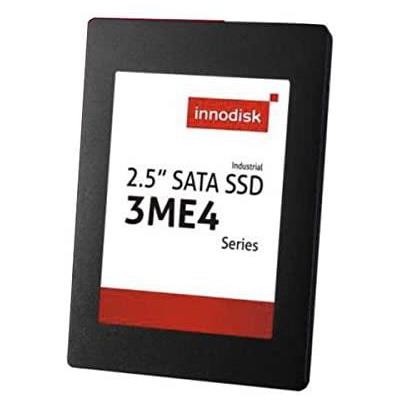

  2. Innodisk DES25-B56M41BW1DC-B051 256GB Solid-State Drive SATA 2.5in MLC - 3ME4 Series
Innodisk DES25-B56M41BW1DC-B051 256GB Solid-State Drive SATA 2.5in MLC - 3ME4 Series

Innodisk DES25-B56M41BW1DC-B051 256GB Solid-State Drive SATA 2.5in MLC - 3ME4 Series

  • 2.5” SATA III solution for industrial field

  • Excellent IOPS boosts system performance

  • Support S.M.A.R.T, TRIM, NCQ and iData Guard

  • Latest SATA III (6.0GHz) Marvell NAND controller

The Solid-State Drive Features 256GB MLC SATA 2.5in SSD 3ME4 (Wide Temp) IoT & Embedded - OEM

$ 160.50$ 160.50160.5USD

$ 160.50

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Innodisk 2.5” SATA SSD 3ME4 is characterized by L architecture with the latest SATA III (6.0GHz) Marvell NAND controller.

    Innodisk’s exclusive L architecture is architecture multiplied by LDPC (Low-Density Parity Check). (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.


    Features



    • 2.5” SATA III solution for industrial field

    • 7mm height mechanical design

    • DRAM-less, high-level data integrity

    • Architecture extends lifespan

    • Excellent IOPS boosts system performance

    • Built-in thermal sensor

    • Support S.M.A.R.T, TRIM, NCQ and iData Guard

    Extra Specifications for Innodisk DES25-B56M41BW1DC-B051 256GB Solid-State Drive SATA 2.5in MLC - 3ME4 Series

    Main Specifications
    Device TypeSolid state drive - internal
    Capacity256GB
    InterfaceSATA III 6.0 Gb/s
    Form Factor2.5-inch, 7mm
    NAND Flash Memory TypeMLC
    Performance
    Internal Data Rate530 MBps (read) / 210 MBps (write)
    Power
    Power Consumption0.8 W (5V x 160 mA )
    Miscellaneous
    MTBF3 million hours
    FeaturesThermal Sensor, S/W Write Protect, ATA Security, S.M.A.R.T.
    Environmental Parameters
    Vibration Tolerance20G @7~2000Hz
    Shock Tolerance1500G @ 0.5ms
    Min Storage Temperature-55°C ~ +95°C

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:InnoDisk
    Type of Support:FULL
    Phone No.:510-770-9421
    URL:Click here for Manufacturer Website
