- InnoDisk DEM24-A28DK1EW1DF-B051 Hard Drive 128GB SATA3 6Gb/s M.2 - (S42) 3TE7 Series

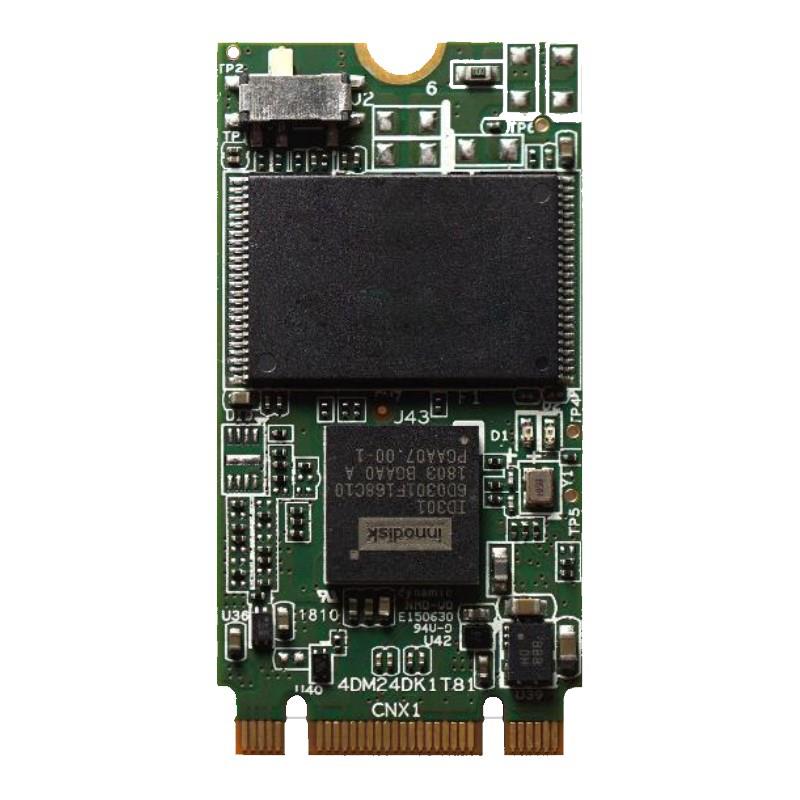

InnoDisk DEM24-A28DK1EW1DF-B051 Hard Drive 128GB SATA3 6Gb/s M.2 - (S42) 3TE7 Series
Excellent random performance
Supports TRIM, NCQ, and SMART
Designed with hardware LDPC ECC engine
Compatible with M.2 2242-D2-B-M standard
Hard Drive 128GB SATA3 6Gb/s M.2 - OEM
Innodisk M.2 (S42) 3TE7 is SATA III 6.0 Gb/s flash-based disk, which adopts the latest SATA III NAND controller with Innodisk’s exclusive FW architecture. The upgraded FW architecture, combining Innodik signature 4K mapping algorithm FW architecture with powerful LDPC technology, makes the 3TE7 series have outstanding high IOPS, better data integrity, and extended lifespan through reducing the bad block number happening. Built-in thermal sensor and iData Guard ensure data integrity and reliability of 3TE7 for industrial applications.
Innodisk M.2 (S42) 3TE7 is designed for the industrial field and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
Features
SATA III Solution for industrial field
Exclusive L3 architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM/NCQ/SMART
Built-in iData Guard
Compatible with M.2 2242-D2-B-M standard
Designed with hardware LDPC ECC engine
Extra Specifications for InnoDisk DEM24-A28DK1EW1DF-B051 Hard Drive 128GB SATA3 6Gb/s M.2 - (S42) 3TE7 Series
| Main Specifications | ||
| Device Type | Solid state drive - internal | |
| Capacity | 128GB | |
| Interface | SATA III 6.0 Gb/s | |
| Form Factor | M.2 2242-D2-B-M | |
| NAND Flash Memory Type | TLC | |
| Performance | ||
| Internal Data Rate | 550 MBps (read) / 330 MBps (write) | |
| Power | ||
| Power Consumption | 1.48W (450mAx3.3V) | |
| Miscellaneous | ||
| MTBF | 3 million hours | |
| Features | Thermal Sensor, ATA Security, S.M.A.R.T. | |
| Environmental Parameters | ||
| Vibration Tolerance | 20G @7~2000Hz | |
| Shock Tolerance | 1500G @ 0.5ms | |
| Min Storage Temperature | -55°C ~ +95°C | |
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | InnoDisk |
| Type of Support: | FULL |
| Phone No.: | 510-770-9421 |
| URL: | Click here for Manufacturer Website |
