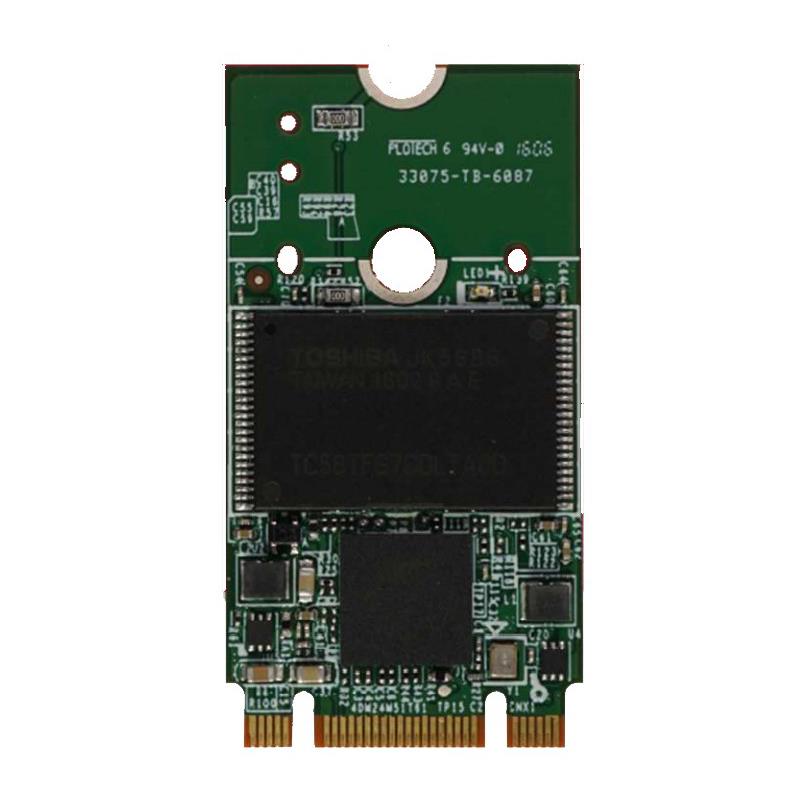

- InnoDisk DEM24-B56M41BWADC-S168 Hard Drive 256GB SATA3 6Gb/s M.2 (S42) 3ME4 Series
InnoDisk DEM24-B56M41BWADC-S168 Hard Drive 256GB SATA3 6Gb/s M.2 (S42) 3ME4 Series
Excellent random performance
DRAM-less, 100% data integrity
Designed with hardware LDPC ECC engine
Perfect for a variety of industrial applications
Hard Drive 256GB SATA3 6Gb/s M.2 MLC - OEM
Innodisk M.2 (S42) 3ME4 is characterized by architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive architecture is architecture multiplied by LDPC (Low-Density Parity Check). (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability. Innodisk M.2 (S42) 3ME4 is designed for the industrial field and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
Features
SATA III solution for industrial field
Exclusive L3 architecture
DRAM-less, 100% data integrity
Excellent random performance
Supports TRIM/NCQ/SMART
Built-in iData Guard
Compatible with M.2 2242-D2-B-M standard
Designed with hardware LDPC ECC engine
Extra Specifications for InnoDisk DEM24-B56M41BWADC-S168 Hard Drive 256GB SATA3 6Gb/s M.2 (S42) 3ME4 Series
Main Specifications | ||
Device Type | Solid state drive - internal | |
Capacity | 256GB | |
Interface | SATA III 6.0 Gb/s | |
Form Factor | M.2 2242-D2-B-M | |
NAND Flash Memory Type | MLC | |
Dimensions (WxDxH) | 22.0 X 42.0 X 3.2 mm | |
Performance | ||
Internal Data Rate | 530 MBps (read) / 210 MBps (write) | |
Power | ||
Power Consumption | 1.4W (3.3V x 422 mA ) | |
Miscellaneous | ||
MTBF | 3 million hours | |
Application Supports | Thermal Sensor, ATA Security, S.M.A.R.T. | |
Environmental Parameters | ||
Vibration Tolerance | 20G @7~2000Hz | |
Shock Tolerance | 1500G @ 0.5ms | |
Min Storage Temperature | -55°C ~ +95°C |
Warranty: | 5 years |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
E-mail: | returnservices@wiredzone.com |
If you need Technical Support for this item please contact: | |
Provider: | InnoDisk |
Type of Support: | FULL |
Phone No.: | 510-770-9421 |
URL: | Click here for Manufacturer Website |
