| Main Specifications |

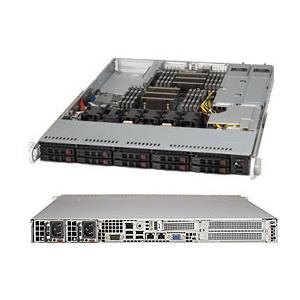

| Device Type | SuperChassis 116TQ-R700WB |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) |
| Color | Black |
| Form Factor | 1U chassis support for max. MB size - 12" x 13" E-ATX - Optimized for WIO (W series) motherboards |
| Weight | 40 lbs (18.2 kg) |
| Processor |
| Compatible Processors | Supports dual Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2x Full-height Expansion Slots (Riser Card Required) |
| 1x Low-profile Expansion Slot (Riser Card Required) |
| Drive Bays |
| Hot-swap | 10x Hot-swap 2.5" SAS / SATA HDD tray - SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button, UID button |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED |
| System Cooling |
| Fans | FAN-0101L4 |
| 4x 40x56mm Counter-rotating PWM fans (Opt. 2x fans for AOC cooling) |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range: 10 - 35C (50 - 95F) |
| Non-Operating Temperature Range: -40 - 70C (-40 - 158F) |
| Humidity Range: 8 - 90% non-condensing |
| Non-Operating Humidity Range: 5 - 95% non-condensing |
| Power Supply |
| Certification | 80PLUS Gold Certified |
| Power Supply | 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C |
| PWS-704P-1R |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane with SES2 |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified |
| Standard Parts List |
| Accessory | MCP-420-11601-0N / MCP-120-00030-0N / MCP-120-00053-0N |
| Chassis | CSE-116TQ-R700WB |
| Fan Holder | MCP-320-00028-0B / MCP-340-00035-0B |
| Power Distributor | PDB-PT112-2420 |
| Rear Window | MCP-240-00098-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-19002-0N |
| Backplane | BPN-SAS-116TQ |
| Drive Trays | MCP-220-00047-0B |
| Mounting Rails | MCP-290-00107-0N / MCP-290-00101-0N / MCP-290-00111-0N |
| Parts List |
| Cables | CBL-0206L / CBL-0227L / CBL-0157L / CBL-0335L / CBL-0263L |
