| Front Panel |
| Buttons | Power On/Off button |
| Unit Identification (UID) button |
| LEDs | Unit Identification (UID) LED |
| Power Status LED |
| 2 Network Activity LEDs |
| HDD activity LED |
| Operating Environment (System) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply |
| Certification | Gold Certified |
| Power Supply | 1U 700/750W hot swap redundant power supply. |
| Power Efficiency | 92% |
| Total Output Power and Input | 700W with Input 100 - 140Vac |
| 750W with Input 180 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 320 x 54.5 x 40.25 mm |
| Output Type | Backplanes (gold finger) |
| -12V | Max: NAA |
| +12V | Max: 58A / Min: 0.5A (100Vac - 140Vac) |
| Max: 62A / Min: 0.5A (180Vac - 240Vac) |
| +5V | Max: NAA |
| +3.3V | Max: NAA |
| +5Vsb | Max: 3A / Min: 0A |
| +12Vsb | Max: NAA |
| Power Distributor | -12V Max: 0.6 |
| O/P: 12V/54 |
| +5V Max: 25 |
| +3.3V Max: 25 |
| PDB-PT112-2420 |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| FCC class A |
| TUV/CB |
| UL/CUL |
| Product SKUs |
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply |
| Form Factor |

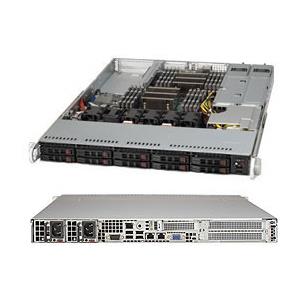

| Form Factor | 23.5" Depth 1U Rackmount Chassis - supports for maximum motherboard sizes of 12" x 13" Optimized for WIO (W series) motherboards |
| Processor Support |
| Processor Support | Dual Intel® and AMD processors |
| Dimensions |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 23.5" (597 mm) |
| Gross Weight | 36 lbs (16.33 kg) |
| Packaging (W x H x L) | 24" (610 mm) x 8" (203 mm) x 32" (813 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 2 full height expansion slot(s) (Riser Card Required) |
| 1 low-profile expansion slot(s) (Riser Card Required) |
| Drive Bays |
| Drive Bays | SAS or enterprise SATA HDD only recommended |
| 10 x 2.5" hot-swap SAS/SATA drive bay |
| Backplane |
| Backplane | 10-port 1U TQ (W/ AMI 9072) backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD |
| Systems Cooling |
| Fans | Optional 2 x fans for AOC cooling |
| 4 x 40x56mm counter-rotation PWM fan(s) |
