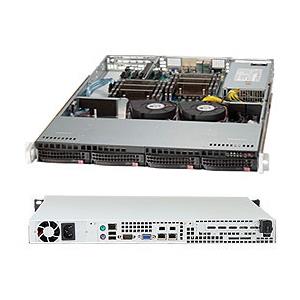

Supermicro CSE-813T-441CB Server Chassis 1U Rackmount

Supermicro CSE-813T-441CB Server Chassis 1U Rackmount

• Optimized for motherboard sizes E-ATX
• Chassis supports 4x hot-swap SAS/SATA
• 4-port 1U TQ backplane & 2x 10cm blower
• Support Dual and Single Intel and AMD processors

Rackmount 1U w/ 80 Plus Platinum Level Certified 440W/480W Power Supply w/ PFC - Supports Intel dual Xeon processor (motherboard maximum size of 12inx13in E-ATX) - Includes 4 Hot-Swap 3.5in SAS/SATA Drive Bays (SAS or enterprise SATA HDD only), SATA Backplane, 1x Full-Height / Full-Length PCI Expansion Slot (Riser Card Required), Slim DVD-ROM Drive, Rails Kit (Black) - SC813T-441CB

$ 385.50$ 385.50385.5USD

$ 385.50

Option not available

    This combination does not exist.

    Add to Cart

    • 1x Slim DVD ROM Drive
    • 2x 10cm PWM Blower Fan
    • 1x Full-size, Full-length I/O Expansion Slot
    • 4x 3.5 Hot-Swap SAS / SATA Drive Bays
    • Power Switch, Reset Button & 5 LED Indicators
    • 440W High-efficiency Power Supply 80PLUS Platinum Level (94%+)

    Extra Specifications for Supermicro CSE-813T-441CB Server Chassis 1U Rackmount

    Main Specifications
    Device TypeSuperChassis 813T-441CB
    Dimensions (WxDxH)Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 25.6" (650mm)
    ColorBlack
    Form Factor1U chassis support for max. motherboard size - 12" x 13" E-ATX
    Weight36 lbs (16.4kg)
    Processor
    Compatible ProcessorsDual Xeon Processors
    Expansion / Connectivity
    Expansion Slots Total (Free)1x full-height, full-length PCI expansion slot (Riser Card Required)
    Peripheral Drives
    CD-ROM / DVD-ROMSlim DVD-ROM drive
    Drive Bays
    Hot-swap4x 3.5" SAS / SATA hot-swap drive bays - SAS or enterprise SATA HDD only recommended
    Operating Environment (System)
    Operating Temperature RangeNon-Operating Temperature Range: -40 - 70C (-40 - 158F)
    Humidity Range: 8 - 90% non-condensing
    Non-Operating Humidity Range: 5 - 95% non-condensing
    Operating Temperature Range: 10 - 35C (50 to 95 F)
    Power Supply
    Certification80PLUS Platinum
    Power Supply440W/480W AC power supply with PFC
    PWS-441P-1H
    Regulatory (Power Supply)
    Power Supply Safety / EMCUSA - UL listed, FCC, Canada - CUL listed, Europe/CE Mark, EN 60950/IEC 60950-Compliant
    Standard Parts List
    AccessoryCSE-PT93L-B / CSE-PT94L-B / MCP-120-00053-0N / MCP-260-00024-0N
    ChassisCSE-813T-441CB
    Fan HolderMCP-320-81301-0N
    Front PanelFP813-D
    Rear WindowCSE-RW-813-500C
    Parts List - (Items Included)
    BackplaneBPN-SAS-815T-O-P
    Drive TraysMCP-220-00075-0B
    Mounting RailsMCP-290-00102-0N / MCP-290-00106-0N
    Parts List
    CablesCBL-0071L
    System Cooling
    FansFAN-0135L4

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
