- Supermicro CSE-213A-R740WB Server Chassis 2U Rackmount

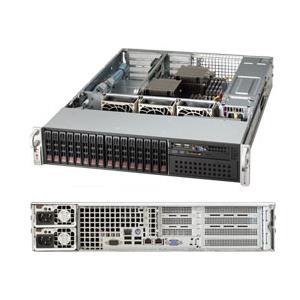

Supermicro CSE-213A-R740WB Server Chassis 2U Rackmount
Rackmount 2U w/ 740W Redundant (1+1) 80 Plus Platinum Level Power Supply w/ PMBus, for Up to Dual Intel / AMD Processors (Motherboard maximum size : 12in x 13in), Optimized for WIO (W Series) Motherboards - Includes 16x 2.5in Hot-Swap SAS/SATA HDD Bays, 4x Full-height, Full-length and 3x Low-profile expansion slots, Rails Kit - SC213A-R740WB - (Black)
1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
2. 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 1 x 5.25" drive bay
3. 16-port 2U SAS 6Gbps direct-attached backplane, support up to 16x 2.5-inch SAS2/SATA3 HDD/SSD
4. 1U 740W Redundant Platinum Power Supply W/PMbus
5. 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
6. 3 x 8cm high-performance PWM fan(s)
Extra Specifications for Supermicro CSE-213A-R740WB Server Chassis 2U Rackmount
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| System Information LED | ||
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 740W Redundant Platinum Power Supply W/PMbus | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 740W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 61.7A / Min: 0.2A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | -12V Max: 0.6 | |
| +5V Max: 30 | ||
| +3.3V Max: 24 | ||
| PDB-PT216-8824 | ||
| O/P: 12V/100 | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 24.8" (630 mm) | |
| Gross Weight | 50 lbs (22.68 kg) | |
| Packaging (W x H x L) | 26.5" (673 mm) x 10.5" (267 mm) x 38" (965 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 4 full-height & full-length expansion slot(s) | |
| 3 low-profile expansion slot(s) | ||
| Drive Bays | ||
| Drive Bays | 1 x 5.25" drive bay | |
| 16 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards | ||
| Backplane | ||
| Backplane | 16-port 2U SAS 6Gbps direct-attached backplane, support up to 16x 2.5-inch SAS2/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Optional 2 x USB 2.0 ports | ||
| Optional 1 x COM port tray | ||
| Systems Cooling | ||
| Fans | 3 x 8cm high-performance PWM fan(s) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-0108L-02 | $ 22.50 | 0 | IPASS TO IPASS 39CM PBF | ||
| Cable | CBL-0281L | $ 25.00 | 0 | IPASS TO IPASS 75CM PBF. 26AWG | ||
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
| Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | Black Front Bezel for 826 chassis | ||
| Front USB | MCP-220-00007-01 | $ 31.00 | 0 | Black USB/COM port tray for SC825, 836 | ||
| HDD Kit | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| DVD-ROM / DVD-RW | DVM-PNSC-824B | 0 | Black slim IDE DVD (8x DVD, 24x CDR), Panasonic | |||
| Tray(s) | MCP-220-00023-01 | $ 20.50 | 0 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | ||
| Tray(s) | MCP-290-00036-0B | $ 19.00 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
